pile turner and stacker

4 year ago
109 0
Product details

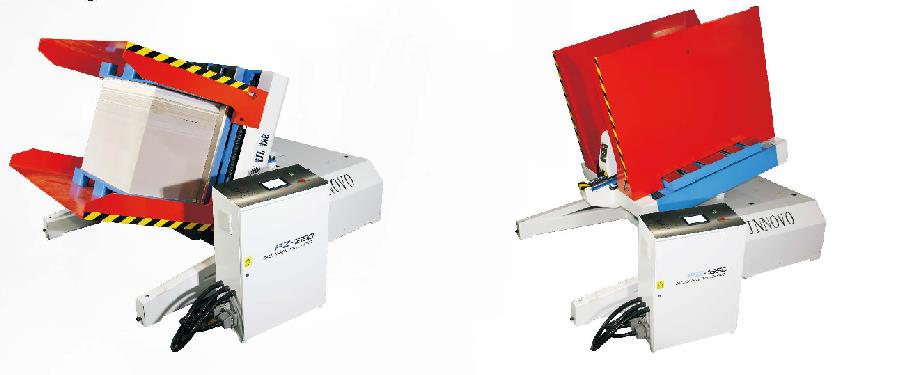

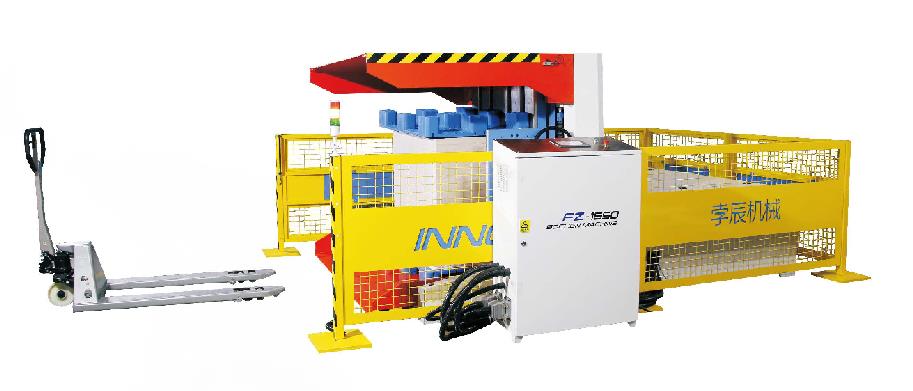

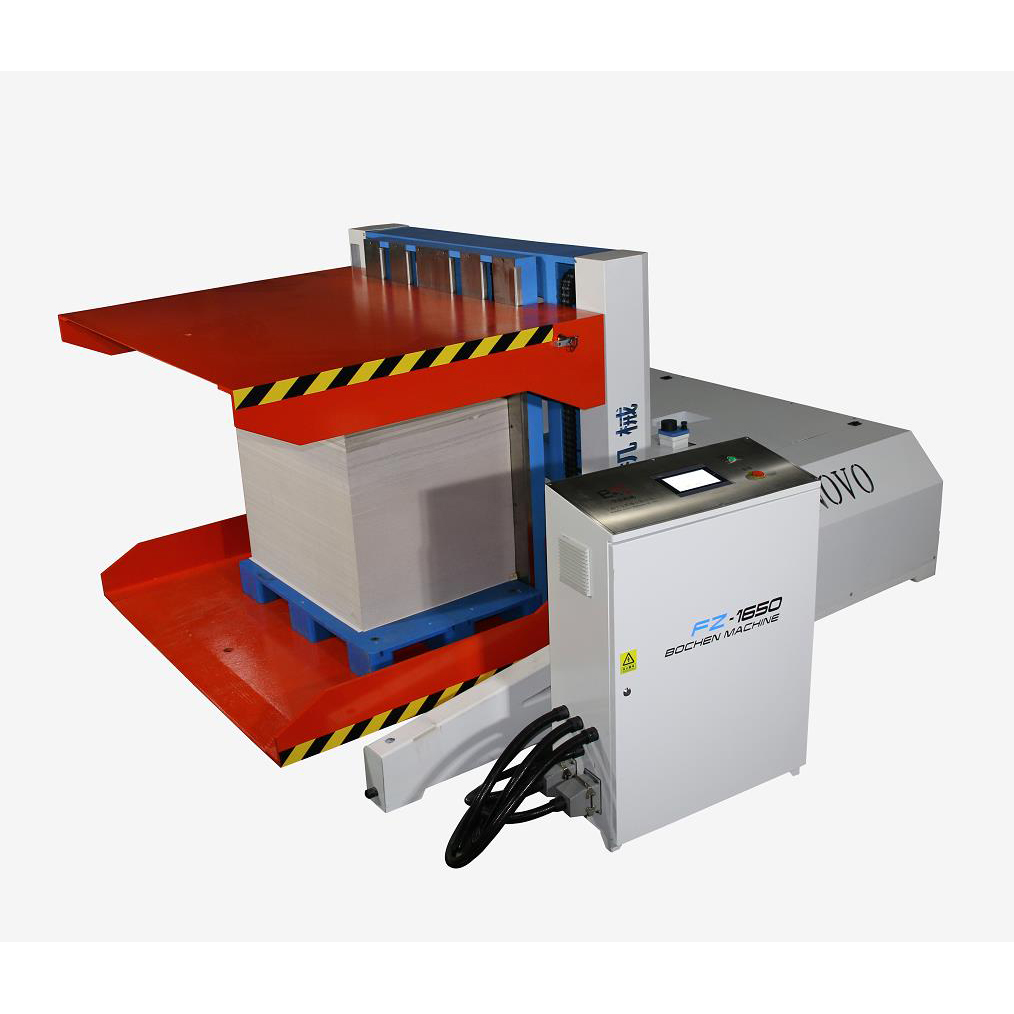

Full Auto Paper Pile Waste Removal Machine Turning Turner Vibrating


Pile turner and dust removing machine


Technical parameter:


Model

1300

1450

1650

1900

Max sheet size

800*3000mm

1100*1450mm

1200*1700mm

1400*1850mm

Min sheet size

500*600mm

500*600mm

500*600mm

500*600mm

Loading weight

1000kg

1400kg

2500kg

3000kg

Platform width

1300mm

1450mm

1700mm

1850mm

Max pile height

1600mm

1600mm

1600mm

1600mm

Min pile height

800mm

850mm

850mm

900mm

Power

380V,10KW

380V,12KW

380V,14KW

380V,22KW

Dimension

2370*2390*1890mm

2900*2200*2200mm

3200*2300*2450mm

3600*2900*2700mm

Machine weight

3500kg

4800kg

6500kg

8000kg



Machine brief introduction:



This machine is mainly used in printing and packaging industry, for pile turning, aligning, dust removal, etc. It is a necessary equipment to improve the work efficiency and printing quality.


Features:


1. It can remove the impurities such as paper fibers, paper scraps and printing powders.

     Before printing: this machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and reduce the defection rate about 80%. After printing: This machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as paper back pollution. It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing machine.

2. Paper separation.

     By vibration and air jetting, the pile is filled with air cushion between the sheet by which the mis-feeding and double-sheeting can be avoided.

3. Aligning.

     With the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.

4. Turning.

     For the piles of double sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work. The working environment will be much better for workers.

5. High efficiency, easy operation.

    For average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes. Easy operation, no need of special training for operation.


Working flow chart


1. Put the pile into platform of machine with hydraulic trolley.

7

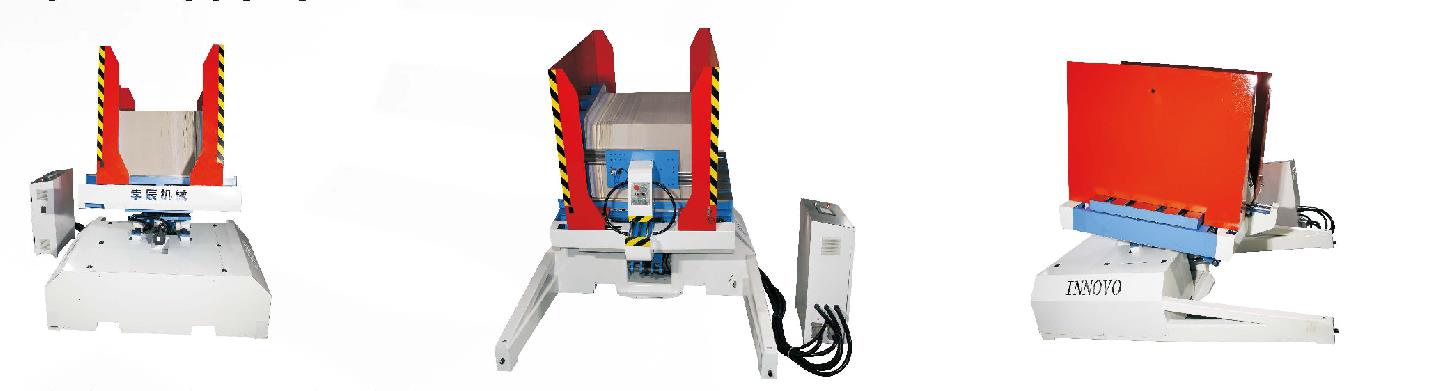

2. Turning up, rotating and tilting.

8

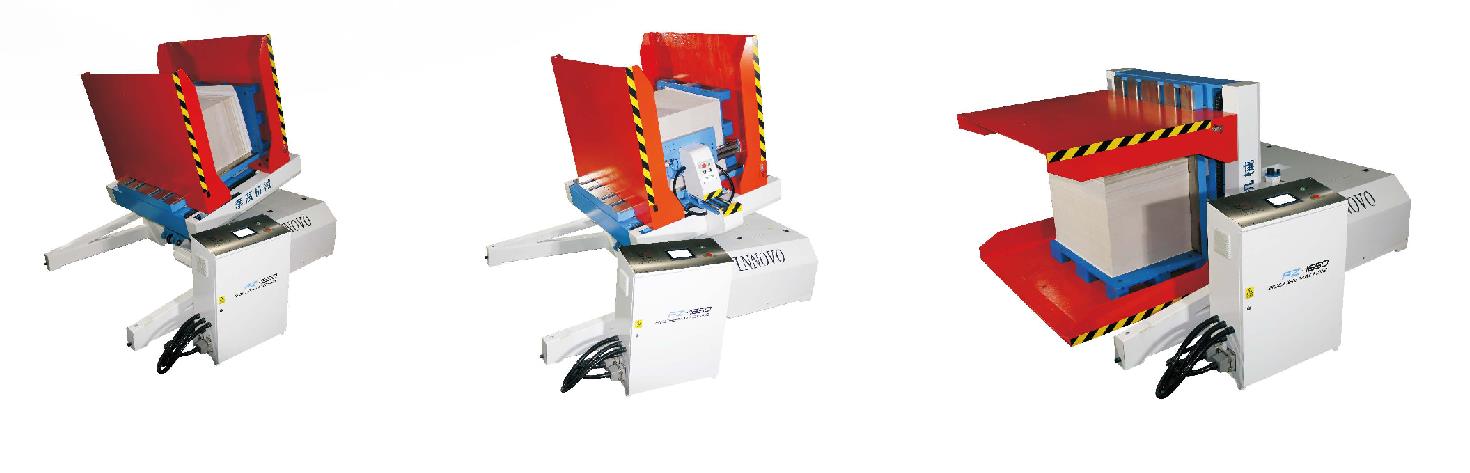

3. Switch on the air jetting and vibration to remove duct(paper fiber, paper scraps)separate the sheets, aligning and turning paper pile.


9





4. The pile turner will come back to its original position, turn down. The pile can be take out by the hydraulic trolley.





10
