qualified wire harness IPC620-IATF16949

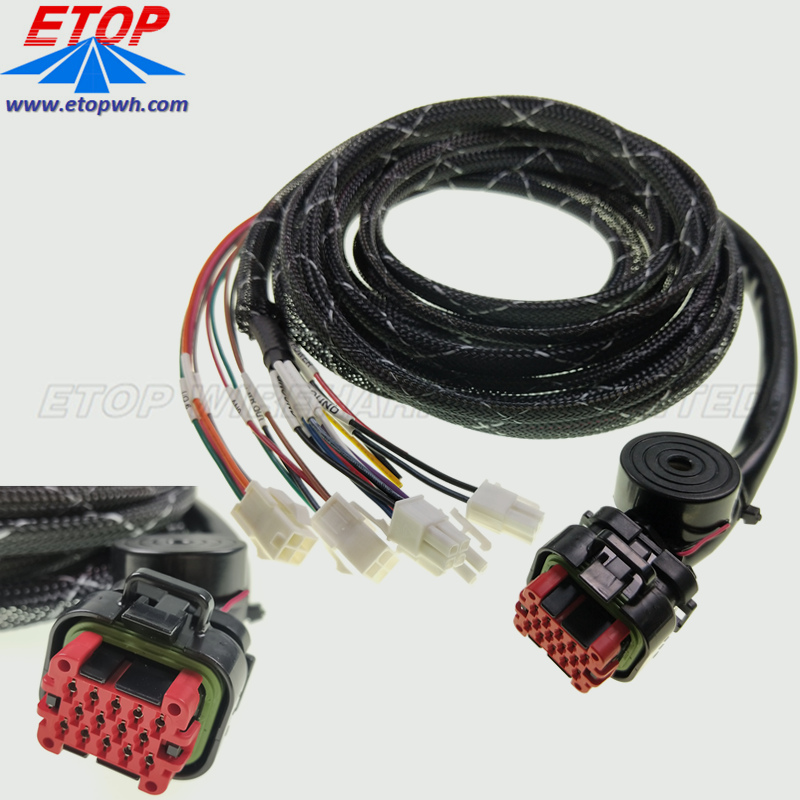

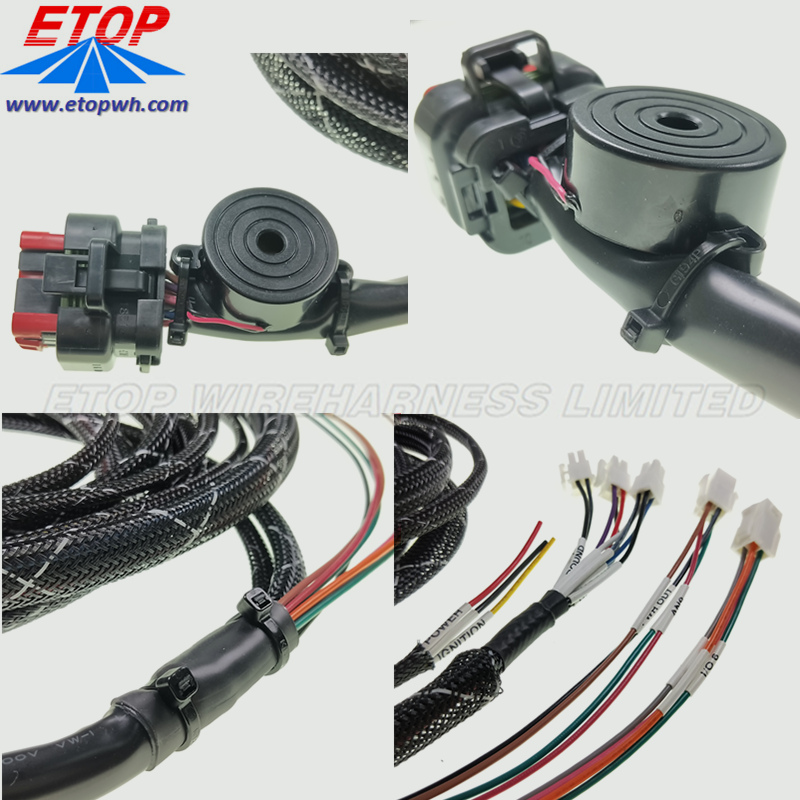

ampseal automotive plug wiring harness and 770680-1 connector cable assemly

wire harness Customization

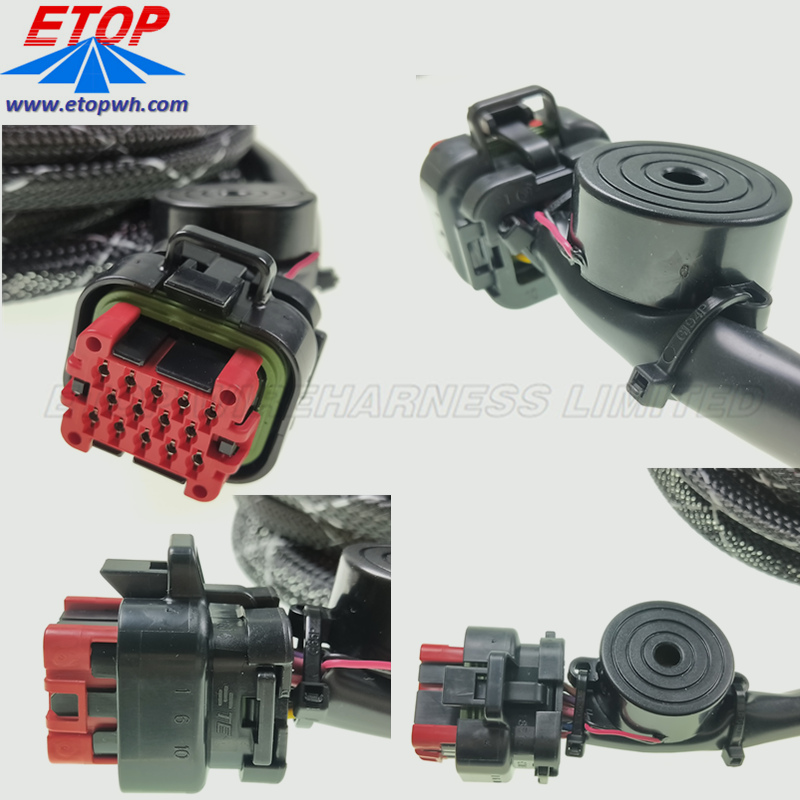

This type of ampseal automotive plug ASSEMBLIES came original from TYCO, which used for auto Powertrain systems, Safety and Security systems, or Body and Chassis systems. AMPSEAL receptacle housings are environmentally sealed and available in 8, 14, 23, and 35 cavity arrangements. They accept size 1.3 mm contacts (up to 17 amps gold, up to 8 amps tin) and feature an integrated latch for mating.

The connectory by 4.00 mm Centerline available for 8pins, 14pin, 23pin and 35pin. Related P/N in details as below:

Mating Terminal
770520-1/770520-3/770854-1/770854-3
8PIN RECEPTACLE HOUSING
776286-1/776286-2
8PIN wafer
776276-1/776280-1/776275-1/776276-1
14PIN RECEPTACLE HOUSING
776273-1/776273-2/776273-4/776273-5
14PIN WAFER
776266-1/776267-1/776261-1/776262-1
23PIN RECEPTACLE HOUSING
770680-1/770680-2/770680-4/770680-5
23PIN WAFER
770669-1/776087-1/776200-1/776228-1
35PIN RECEPTACLE HOUSING
776164-1/776164-2/776164-4/776164-5
35PIN WAFER
1-776180-1/1-776163-1/776230-1/776231-1

Custom cable assemblies Engineering Services & Support

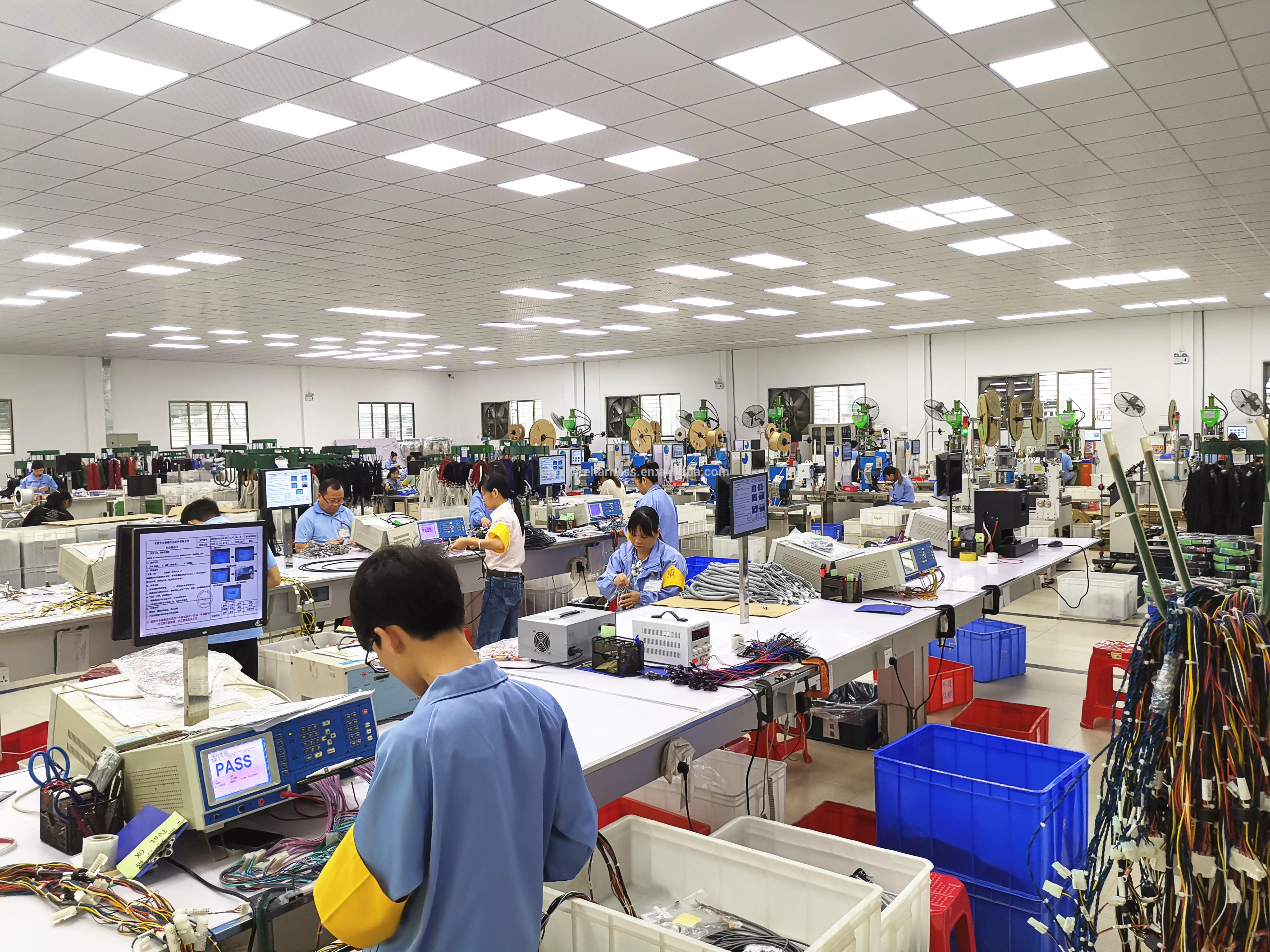

We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.

ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.

ETOP WIREHARNESS Core strength

For more news and product information of our company, please visit our official website.We also sell Wire Harness, Connectors, Custom Cable Assemblies, Automotive Wire Assembly,Customized Cables and Connectors overmolding.
