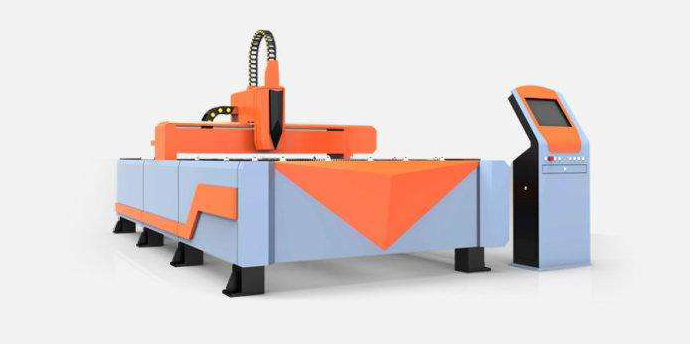

Hardware processing fiber laser cutting machine

The machine with fiber laser occupies a small area, and the volume of laser light source and cooling system is smaller; there is no laser gas pipeline, and there is no need to adjust the lens. The fiber laser source with 2kW or 3KW power only needs 50% of the energy consumption of 4kw or 6kW CO2 laser source to achieve the same performance, and it has faster speed, lower energy consumption and less impact on the environment.

The solid-state diode is used to pump the molecules in the double clad ytterbium doped fiber. The stimulated light passes through the core many times, and then forms the laser output to the cutting focus head through the transmission fiber. Since all intermolecular collisions take place in the fiber, there is no need for laser gas, so the energy required is greatly reduced - about one third of the CO2 laser. The smaller the heat generated, the smaller the volume of the cooler. In a word, the overall energy consumption of fiber laser is 70% lower than that of CO2 laser when the same performance is achieved.

Carbon dioxide series: Carbon dioxide optical lens, excitation module, high pressure module, turbine, focusing mirror, Bypos mirror, refractor, cutting head, nozzle, ceramic ring, dust cover

Optical fiber series: push in nozzle, protective lens, sapphire lens, ceramic ring, cutting head, cutting head accessories, ipg module, communication module, communication cable, protective cover, various filter elements, pressure reducing valve, nozzle body, quick-insert nozzle body, adaptor 2.0, servo, motor, power supply, CNC rack, HighYAG cutting head, collimator Lens, focusing mirror and more.
