8-10 ohm ITO PET FILM

2 year ago

17 0 

5 year

Product details

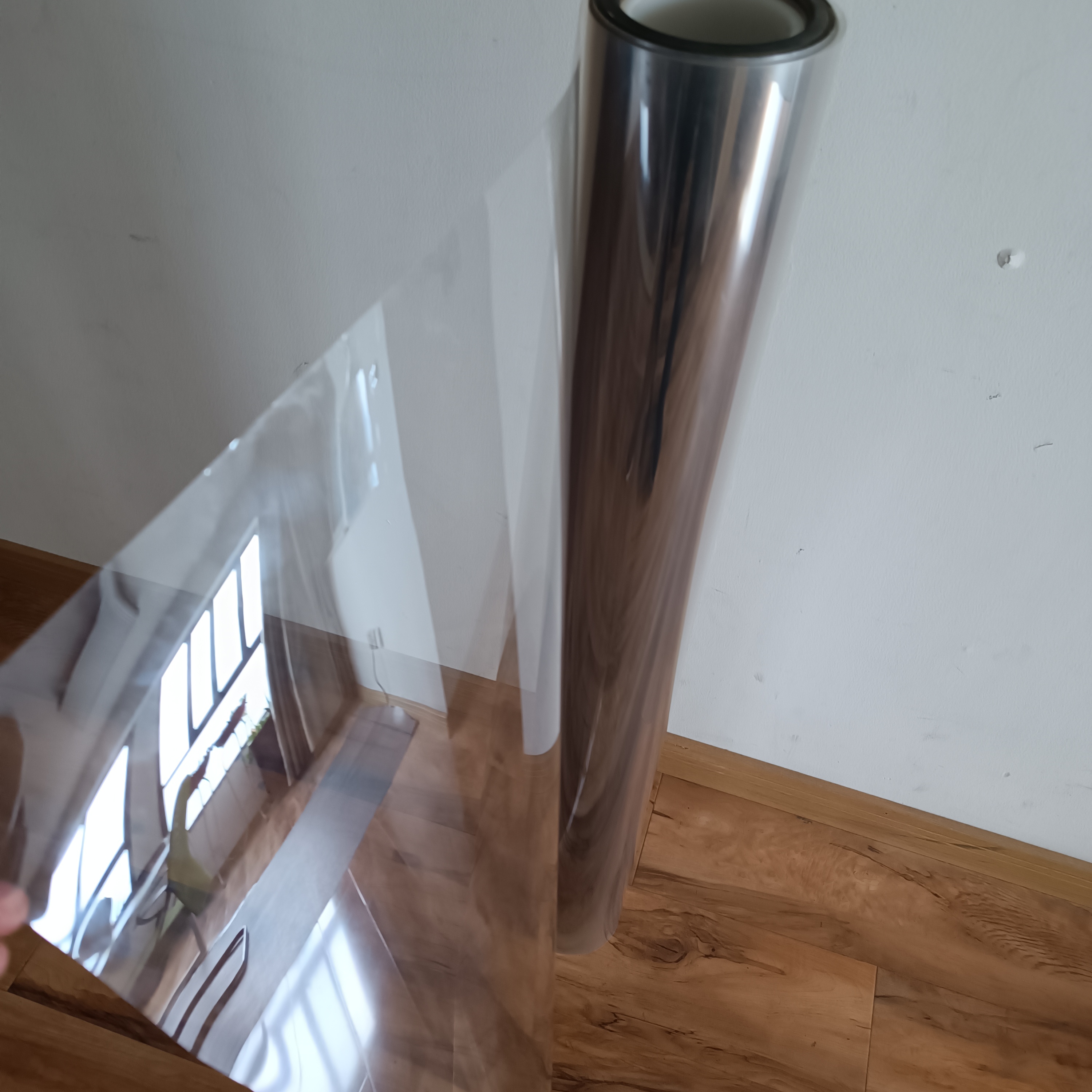

10 OHM ITO PET FILM

High Transparent ITO PET FILM 10 OHM/SQ is designed for low resistance clear electrode of flexible circuit, flexible solar cell and transparent EMI shielding for LCD/TFT displays. Substrate is optical high temperature PET film, regular thickness 0.125mm (5mil) with one side ITO sputtered, remains high transparency upto 84%.

Specification

Thickness	0.125mm and customized
Width	1220mm and slitted
Resistance	10 ohm/sq
Resistance Tolerance	+/-2 ohm/sq

Transparency	>83%
Haze	<3%
Adhesive	Can be customized
Protective film	Both sides

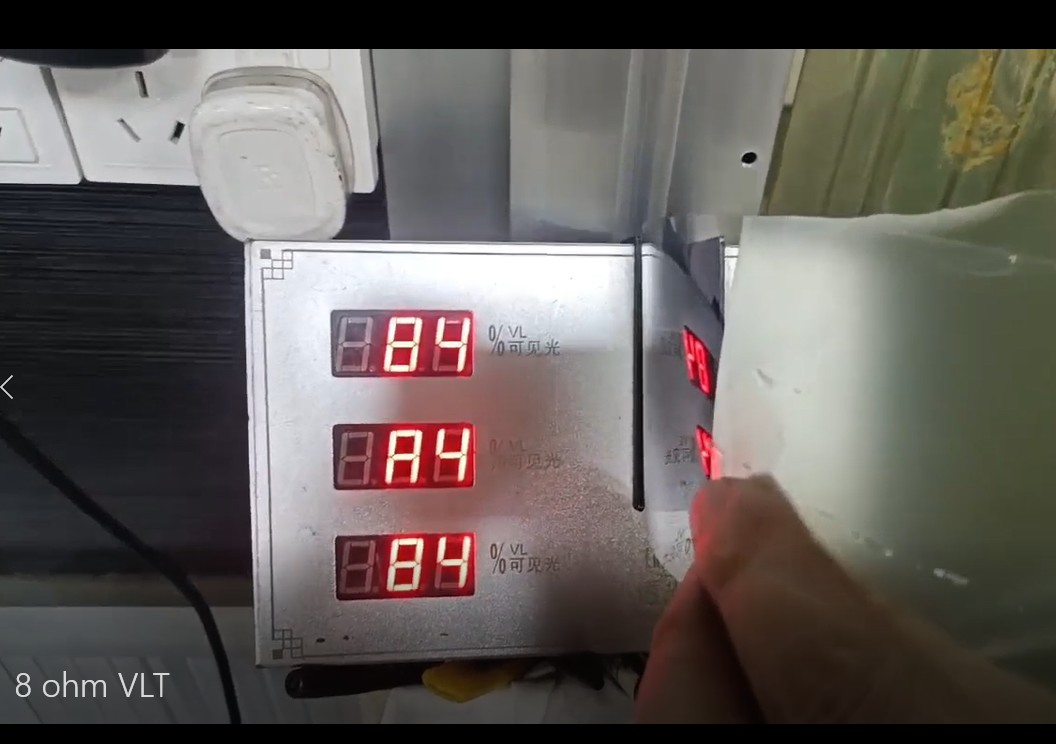

High Transparency

8-10 ohm/sq ITO PET FILM VLT reaches 84%

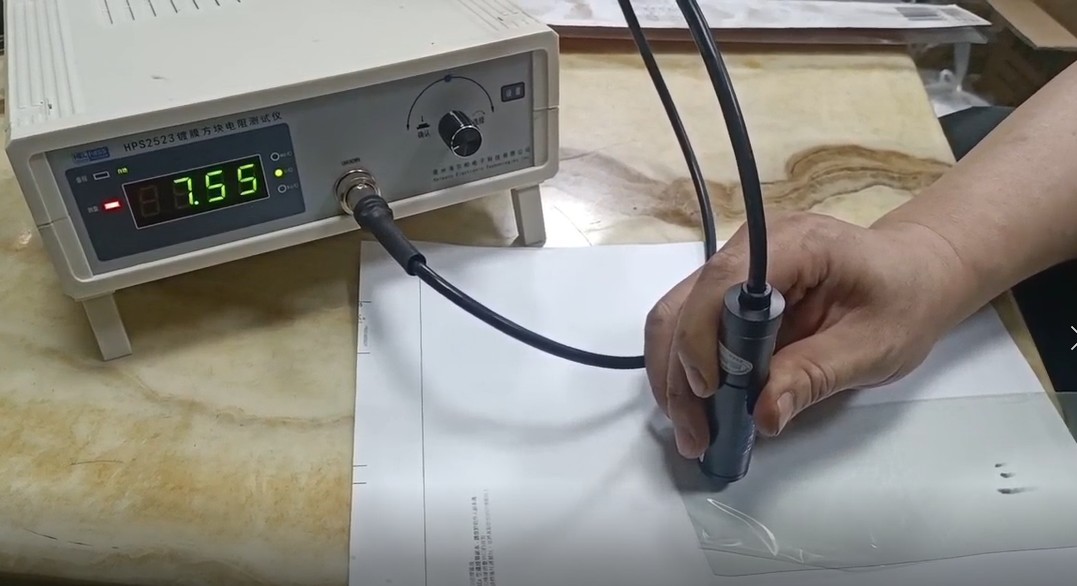

Low Resistance

8 ohm ITO 4 PROBE Test

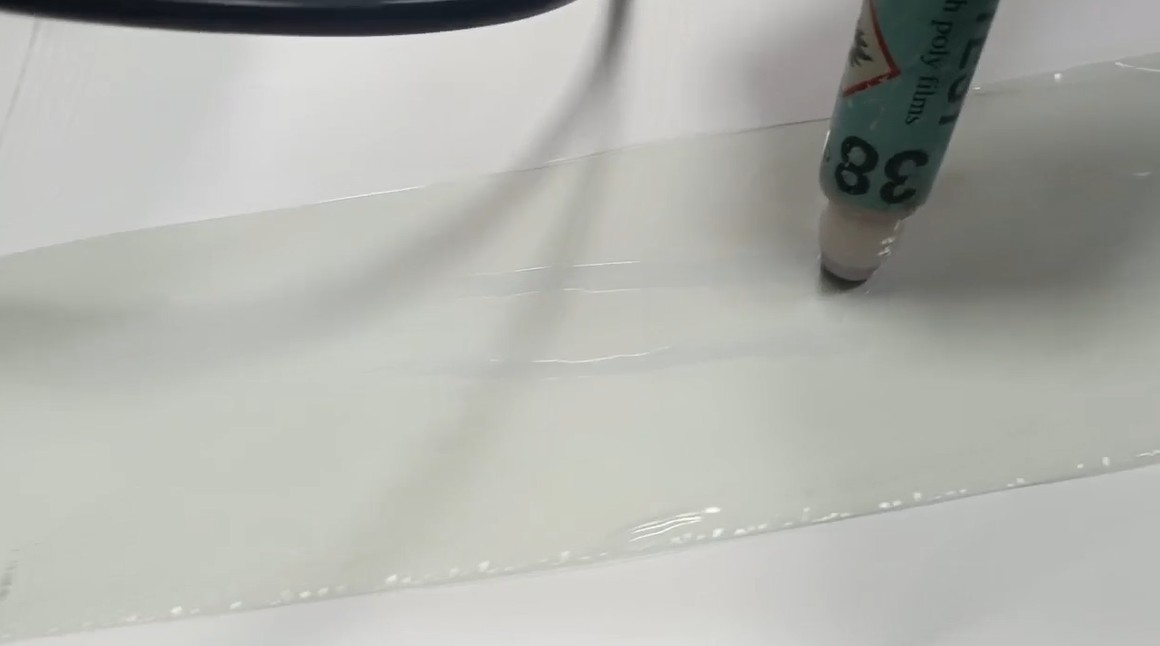

ITO Surface Tension

38 Dyne Surface tension test

Packing & Delivery

ITO film roll wrapped with enough foam for protection,standard roll is hanging to prevent any possible hit. Carton is filled with enough foam again suitable for long distance transportation.
