Product details

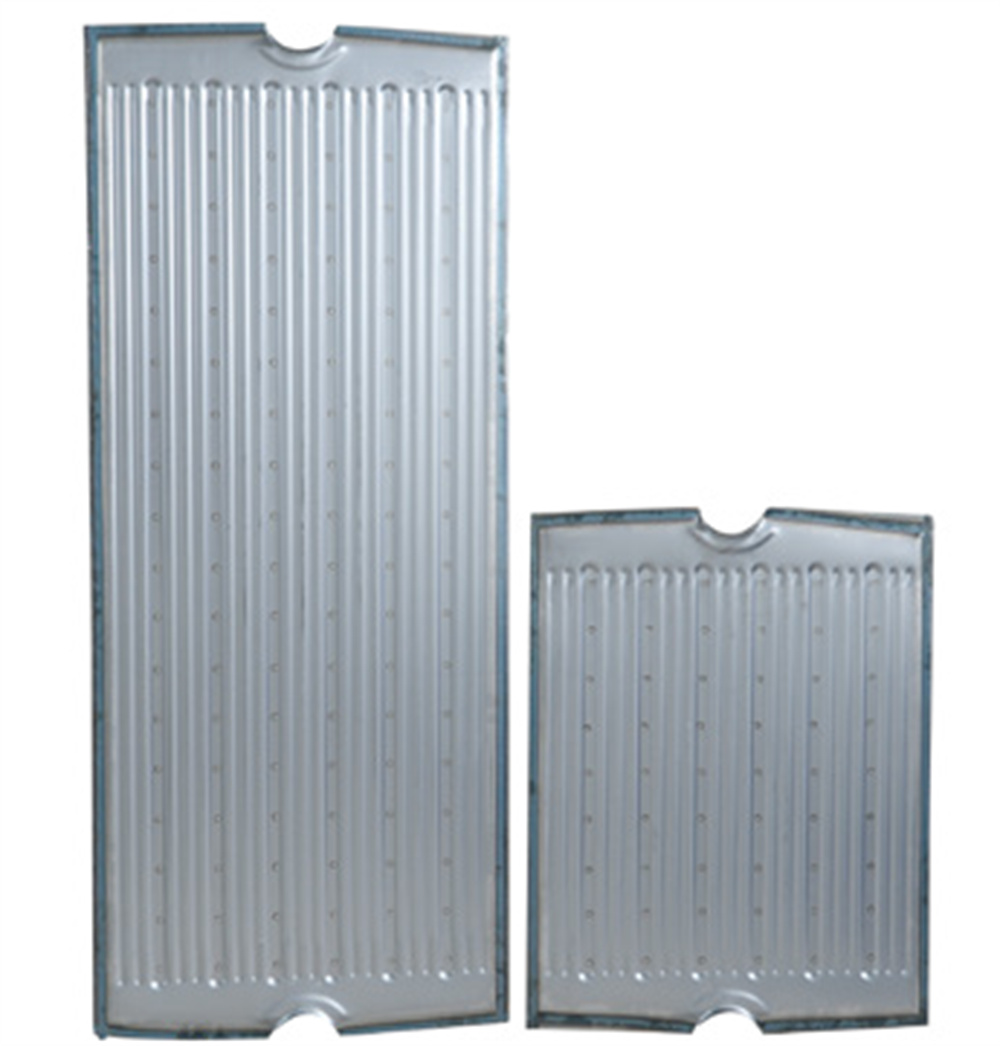

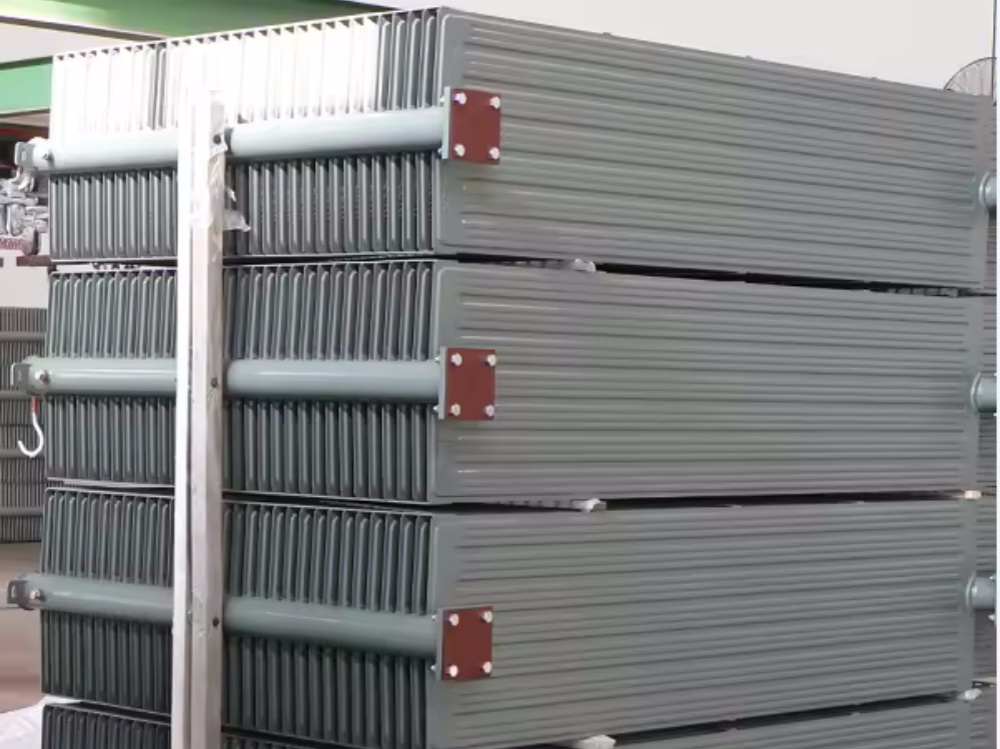

Chip Radiator

Chip radiator is used for oil-immersed transformer, reactor and other transformer products of the cooling device, is in accordance with the People's Republic of China professional standard JB/T5347-1999 transformer chip radiator design and manufacture. According to the connection mode, it can be divided into fixed type and detachable type two types; According to the cooling mode, it can be divided into self-cooling type, air cooling type and strong oil air cooling type. The chip radiator produced by our factory has fixed type, collapsible type, bottom blowing type of various specifications series, welcome users to choose.

PC type detachable radiator has a bleeder plug on the upper collector pipe for bleeder, and an oil bleeder plug on the lower collector pipe for oil bleeder. When the transformer is filled with oil, the bleeder plugs on each group of radiators should be released, and then the bleeder plugs should be tightened when oil overflows from the bleeder holes.

Transportation, installation and flushing shall not deflate or damage the oil channel of the radiator.

If the user conducts a sealing test on the heat sink, the pressure shall not be greater than 120kPa.

If the user needs to carry out vacuum strength test on the heat sink, it should be carried out under the state of not filling oil, the absolute pressure is not more than 133Pa, and the duration is not more than 10min.

Before the radiator is installed, users should check whether the plastic cover or steel cover is well sealed, and if it is damaged so that the interior is polluted, it should be cleaned to ensure that the interior is clean.

Chip Radiator
