Botuo TN5528 High Pressure 2800bar 40000Psi Plunger Pump System For Ship Hull Cleaning1

2 year ago

19 0 

ZHEJIANG BOTUOLINI MACHINERY CO.,LTD

7 year

Product details

Product Description

Model	Flow			Pressure					Speed	Power	weight
Model		L/min	gpm	Bar	p.s.i	Mpa	r.p.m	hp	kw	kg
TN17	40	10.6	2800	40600	280	450	298	219	1500
TN18	45	11.9	2800	40600	280	450	334	245	1500
TN20	55	14.5	2800	40600	280	450	412	303	1500
TN22	67	17.7	2500	36250	250	450	445	327	1500
TN24	79	20.9	2000	29000	200	450	423	311	1500
TN28	122	32.2	1500	21750	150	510	490	360	1500

Standard:

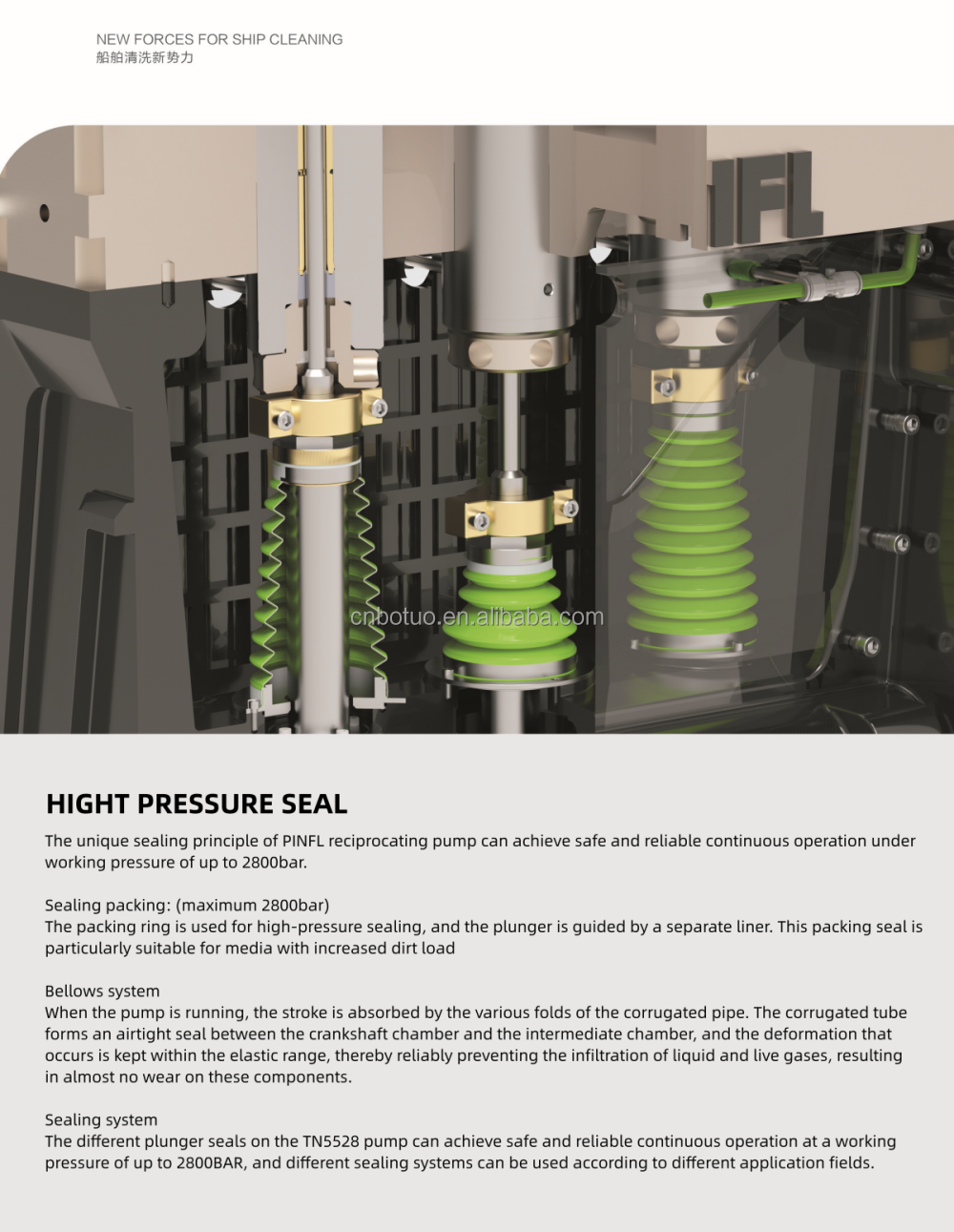

1. Pump head Stainless steel material, new and efficient structural design, high strength, no pores, long service life, safe operation. 2. Crankcase Precision casting oxidized crankcase surface, large radiator, with outstanding appearance. 3. Connecting rod Super alloy material, higher load strength, longer service life, ensuring safe and stable operation. 4. Crankshaft Precision forging process and hardening treatment ensure crankshaft strength and prolong service life. 5. Plunger Precision machined hard solid ceramic plunger and thickened SST limit bolt. Longer service life. 6. Water Seal U-shaped Buna-N material low pressure water seal design enhances pump performance which make pump running at least for 500 hours. 7. Checking Valve The valve cage is made of special materials that are durable. The valve and spring made of stainless steel, and the valve seat and valve cover made of brass improve the service life. Easy to disassemble and operate. 8. Oil Seal Better crankcase oil sealing system. The oil seal is equipped with stainless steel springs to ensure sufficient tension.

Applications

#Textiles

Spunlace is a kind of non-woven fabric, which consolidates the veil through high-pressure water jet, thus piercing the fabric and weaving fibers. Humidity control in textile production plants is carried out through high-pressure water atomization system.

#Steel
High pressure descaling is a device that delivers water at high pressure to remove surface deposits.
High pressure water is sprayed as a method of improving quality during steel making processes in steel mills.

#Desalination
Reverse osmosis, also called hyperfiltration, is the process in which the passage of water is forced from the more concentrated
solution to the less concentrated solution obtained by applying a higher pressure than the osmotic pressure to the more
concentrated solution.

#Waterblast
High pressure water can cut concrete or erode concrete. Very high pressure water can remove concrete or cement coatings without
damaging the iron reinforcement inside.
The main advantages are; speed, low dust levels, can be automated

#Foodmanufacturing
All items that come into contact with food must be effectively cleaned and disinfected. This is a process that removes food waste,
dirt, grease and destroys foodborne disease pathogens.

#Misting
Misting is a phenomenon caused by small droplets of water suspended in the air. Physically, it is an example of dispersion. It is
most commonly seen where warm, humid air encounters sudden cooling. It can be artificially created with dedicated systems using
high pressure water and a dedicated nozzle network.

#Oilandgas
Heat exchangers are used day by day all over the world not only for chemical and thermal processes and in Oil Gas, but also for their reverse application, air conditioning units. Since heat exchangers are such an important part of the operation of many
businesses, it is important to keep them clean and operating to their full potential.

#Sewercleaning
Residues, algae, grease, debris and other particles can accumulate inside the pipes at any time. The use of high pressure water, also known as hydrojet, water jet, high pressure jet and cleaning of high pressure pipes, can eliminate the most resistant clogs in drains and sewer lines.
It is not only an efficient way to clean plumbing, but it is also economical and environmentally friendly because it does not
require harmful chemicals.

#Mud
Horizontal Directional Drill (HDD) rigs use a water/mud pump to push fluid into the drill head.
The fluid is used with bentonite and polymers to lubricate the drill bit, float the discarded rocks and materials and solidify the inside o the wall of the drill hole.

#Petrolchemical
High pressure water is used to clean and remove algae, carbon, plastic, asbestos, wax, paraffin, grease and crude residues,
minerals, calcium sulfate, chlorides, iron oxide from petrochemical heat exchangers, boilers, tanks, reactors, pipes and cooling towers.

#Pcbcleaning
The number of PCBs used in the automotive, healthcare, aviation, communications and other industries is growing rapidly. All this is further enhanced by their miniaturization and their subsequent exposure to climatic influences (humidity, gas, temperature).
The use of high pressure water is essential to thoroughly clean the surface of the PCBs after inserting the components from residues of flux, chemicals and other potentially harmful substances. Poorly cleaned or uncleaned PCBs can later cause the end product to fail.

#Watercutting
High pressure water jet, allows cutting different types of materials including marble, glass, ceramic and metals with a very high degree of precision and minimum waste.
Being a cold cut, the processed material is not subject to any type of mechanical or thermal deformation.

More Products

Company Profile

Zhejiang Botuolini Machinery Co.,Ltd was established in 2008, is committed to the product development and production of triplex plunger pumps, industrial high pressure washers. Now it covers an area of 40,000 square meters, with 200 employees and 40 R&D designers. Leading domestically in the plunger pump industry and ranking among the top ten in the world. The factory has passed ISO9001 certification, and has passed the ethics, safety and production certification of many international companies. In terms of quality inspection, we ensure the standardized production and quality control of products through 5S methods and procedures; in terms of product development and innovation, we use analogy methods to ensure product leadership. In terms of market, the products are sold to 46 countries around the world, with an annual sales of 500 million US dollor. We have done OEM and ODM for Zoomlion and other companies. The after sales service and technical support for customers have also been recognized by customers.

Certifications

Exhibition

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2008,sell to Domestic Market(90.00%),Eastern Europe(3.00%),Southeast Asia(3.00%),North America(2.00%),Africa(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
High pressure washer, High pressure plunger pump

4. why should you buy from us not from other suppliers?
Zhejiang Botuolini Machinery Co.,Ltd is a professional manufacturer of industrial & commercial High pressure pumps and high pressure washer equips. The company registered capital is 4.65 million USD,and covers an area of more than 40,000 square meters.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
