Product details

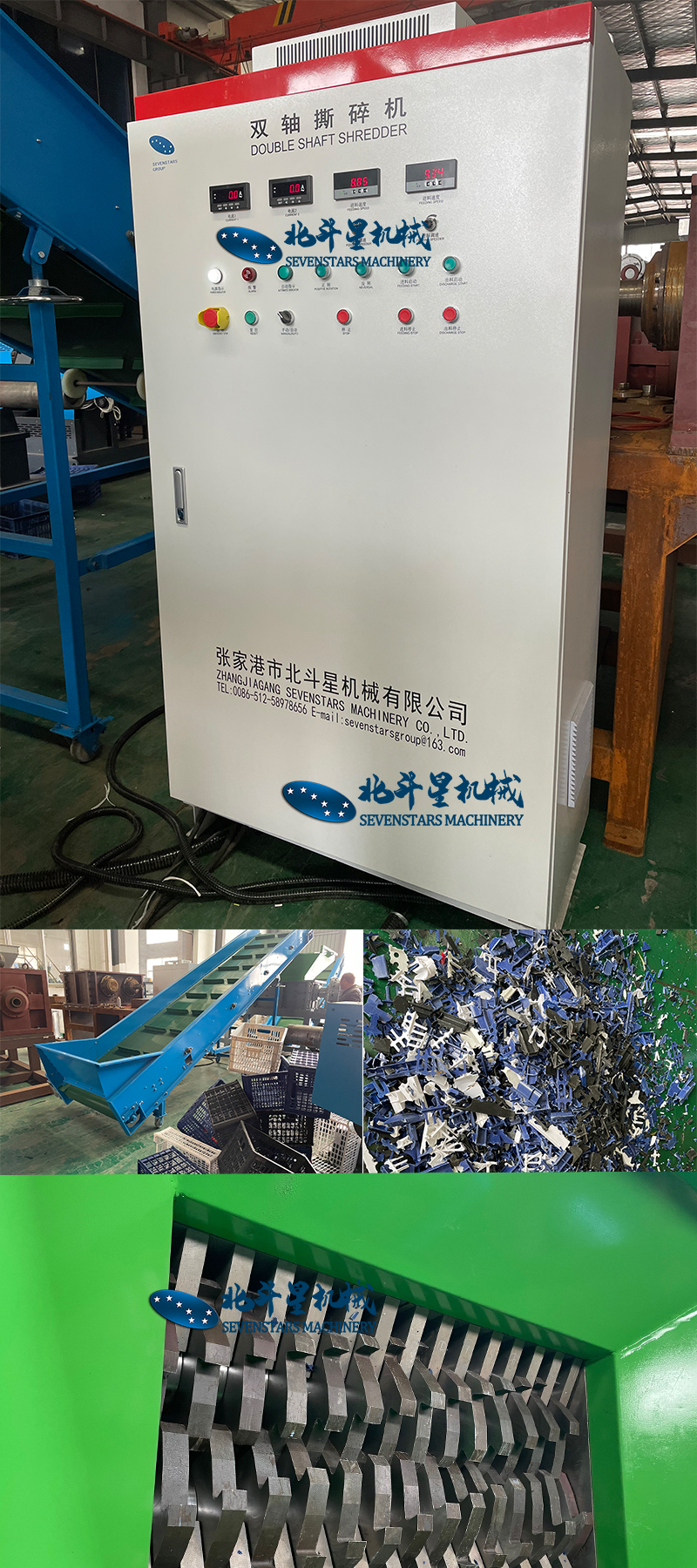

Waste Fruit basket Double shaft shredder crusher machine

Introduction of waste plastic double shaft shredder:

1. The machine is suitable to process very big size of plastic material, such as big jar and plastic board and and complete set of household appliances and other pe pp pet big bottle and wood and tire and pressing plastic film and wood pallet,and jerrycans.

2. The machine with big feeding mouth, it can put the big plastic product freely with belt conveyor.

3. The rotary blade and cutting blade and blade edge with special design, it can get very high efficiency and high capacity

4. the machine is control by PLC system ,the blade can rotated in opposite direction ,and it also can close automatic if something unexpected happen , with very high safety service.

5. The machine running slowly with low noise and low dusty,and heavy duty machine,no vibrating.

6. Their assistant blades are refined by forging and milling process and their main blades are made of special alloy steel with high strength and strong anti-wear.

7.after shredder machine,if the scraps size is bigger,you can also use the plastic crusher to get the small size scraps.

we are plastic recycling machine manufacture,we are also have the washing line PP PE Film Bags Washing Machine,PP PE Bottle Drum Washing Machine;and pelletizing machine,such as PE PP Film Bags Pelletizing Machine; Rigid PP/PE/ABS/PC Pelletizing Machine and so on ...

Specifications for reference

Model	Spindle power(kw)	Spindle speed(r/min)	Capacity(t/h)	Number of bladesThickness	Crushing size(cm)	Solo size(m)	Dimension (LWH)(m)	Weight(t)
1600	6-75*2	9-12	12-18	100*16	3-10	2.6*2	532.4	14
1400	6-55*2	9-12	8-12	100*14	3-10	2*2	432.4	13
1200	6-37*2	9-12	6-10	100*15	3-10	1.4*1	3.221.9	11
1000	6-30*2	9-12	5-8	50*20	3-10	1.2*1	321.9	5
800	4-18.5*2	9-12	3-5	40*20	3-10	0.9*1	8.244.3	3
600	4-15*2	9-12	2-3	30*20	3-10	0.82*0.9	2.621.9	2.5
400	4-7.5*2	9-12	0.8	20*20	3-10	0.4*0.32	1.511.5	1.4
