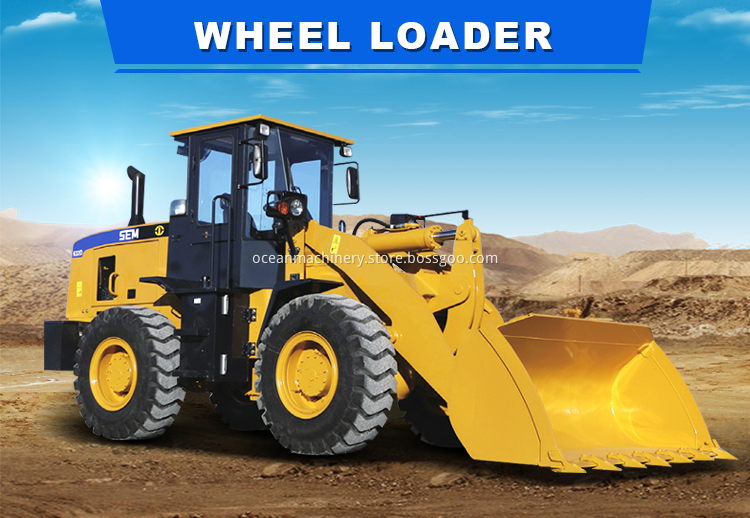

SEM wheel loader machine
4 year ago
Cheap sale small front SEM656D wheel loader from China
Advantages:
SEM wheel loaders are a company under the machinery giant Caterpillar. The whole vehicle uses Carter's advanced technology,'whether it is engine or gearbox',which ranks among the top in China. The gearbox of Yamagong loader is a rare fixed-shaft type continuously variable transmission, which is comparable to Komatsu of Japan. In terms of hydraulic oil circuit, "Using Carter's advanced technology", both maneuverability and workability are better. In terms of engine, there are two types of engines: Weichai and Hangfa.
Specification:
|
Main Specifications |
|
|
Rated load capacity (Kg) |
5000 |
|
Operating weight with standard bucket (Kg) |
16900 |
|
Bucket capacities (M3) |
2.7-4.5 |
|
Wheelbase (mm) |
3300 |
|
Overall Dimensions L*W*H (mm) |
8279*2963*3457 |
|
Engine |
|
|
Model |
Weichai WD10G |
|
Rated power (kW) |
162 |
|
Rated speed (r/min) |
2000 |
|
Displacement (L) |
9.726 |
|
Operating Specifications |
|
|
Dump clearance (mm) |
3113 |
|
Breakout Force (kN) |
178 |
|
Articulated angle (°) |
38±1° |
|
Hydraulic system |
|
|
Implement system type |
Single load sensing flow sharing system |
|
System Pressure setting (Mpa) |
18 |
|
Hydraulic cycle time (s) |
9.3 |
|
Boom Raise time (s) |
5.13 |
|
Axle SO32 |
|
|
Main drive type |
Spiral bevel gear, single stage |
|
Final drive reduction type |
Planetary type, single stage |
|
Rear - oscillating +/- (°) |
±11° |
|
Steering system |
|
|
System type |
Flow amplifying |
|
Steering pump type |
Piston pump |
|
System pressure setting (MPa) |
16 |
|
Steering angle L/R ( °) |
38 ±1° |
|
Brake system |
|
|
Service brake |
Dry&caliper,Air-to-oil control |
|
Parking brake |
Drum-type shoe brake,spring applied & oil released |
|
Transmission |
|
|
Type |
Counter shaft |
|
Transmission gears |
F4/R4 |
|
Torque converter type |
Single stage 3 elements |
|
Maker & type |
TR200 |
|
Forward I/ Reverse I (km/h) |
7.8 / 7.8 |
|
Forward II/ Reverse II (km/h) |
15 / 15 |
|
Forward III/ Reverse III (km/h) |
22 / 22 |
|
Forward IV/ Reverse IV (km/h) |
39 / 39 |
|
Tires |
|
|
Size |
23.5-25 |
|
Type |
Bias |
|
Layers |
16 |
|
Textured type |
L3 /E3 |
Package :Nude or Polish with wax before shipping.
Certification:
It will be work smoothly toghter with our motor graders ,road rollers, crawler bulldozers etc.
we will treat our all customers like family! Welcome your new inquiry!
