C04 Clevises

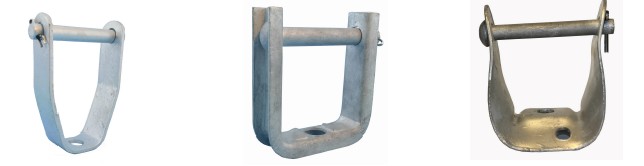

Insulator Clevis

An insulator clevis is a type of Pole Line Hardware used in electrical power transmission systems. It is designed to connect an insulator to a crossarm or a pole. The insulator clevis is made of high-strength steel and is galvanized to protect against corrosion.The insulator clevis has a U-shaped design with two arms that are used to attach the insulator to the crossarm or pole. The arms of the clevis are designed to fit snugly around the insulator and are secured with a bolt and nut.

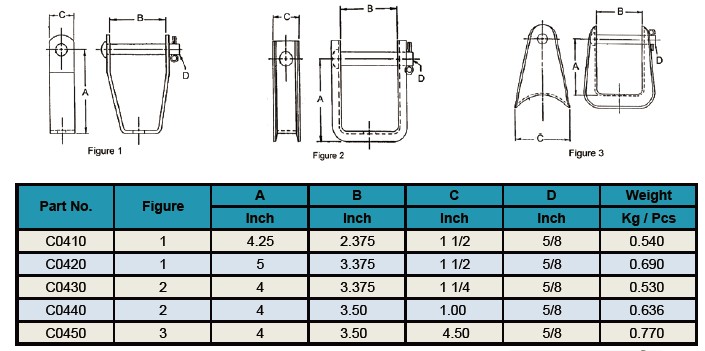

Yokelink Insulator clevises are available in different sizes and designs to accommodate different types of insulators and poles. Manufactured from ANSI/IEEE Std C135.20. Spool insulators to be ordered separately. All components are Hot dip galvanizedto meet ASTM A153 specification.

When you need Insulator Clevis, refer to above our catalog. We offer them in a full selection of sizes, provide the length, diameter or part number to get a quote on these insulator Clevis, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
