280/320 Cassette Type Single Facer for corrugated cardboard line1
2 year ago

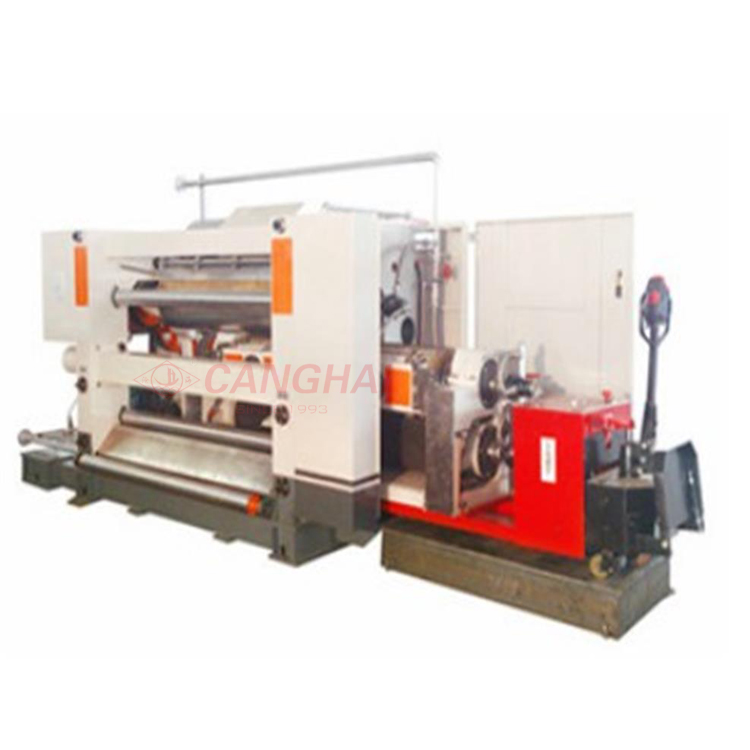

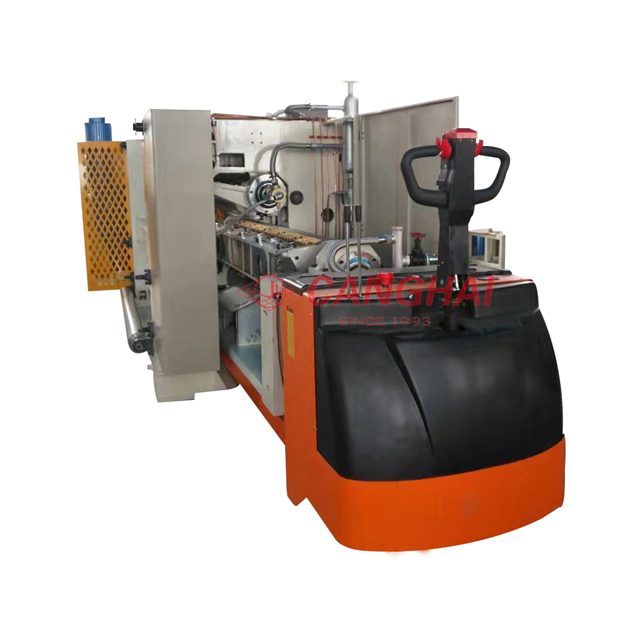

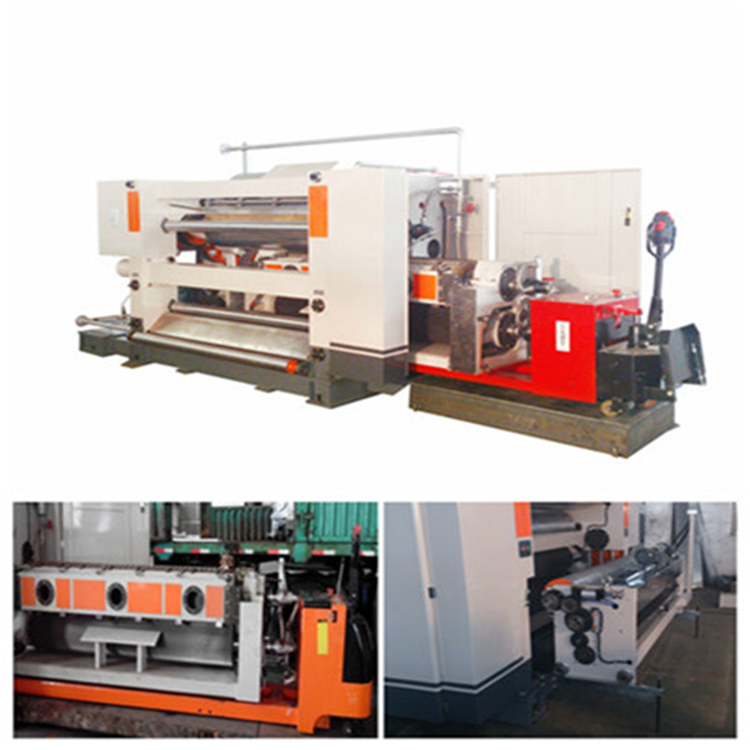

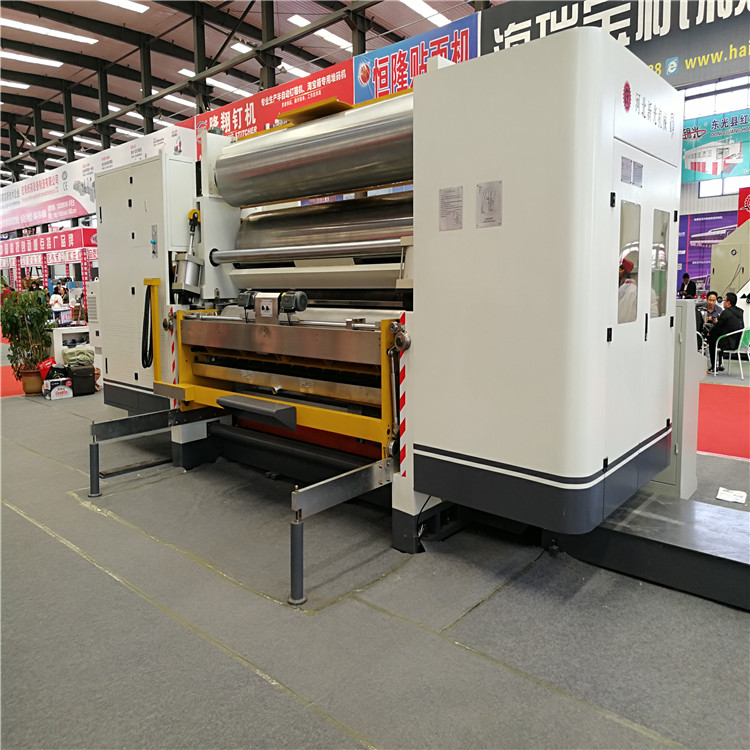

280/320 Cassette Type Single Facer for corrugated cardboard line
Function:
1. Cardboard transmit is vacuum suction method, with wind control system.
2. Glue roller section is designed unit assemblage type. Whole section can be moved by track, save maintenance time.
3.Universal joint drive, independent drive box body structure, more stable transmission, enclosed gear oil lubrication, prolong service life of the gear.
4.Upper corrugated roller, pressure roller bearings use high-temperature grease lubrication.
5.The use of electric slurry insulation device, paste Department operates independently in the host machine, prevent paste.
6. Electric adjustment, digital display of glue or manually adjust the amount of adhesive.
7. The upper and lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness is HRC58°-60°, the surface be grinded and chrome
| Model | 1200 | 1400 | 1600 |
| Flute type | A,B,C,E flute are available | ||
280/320 Cassette Type Single Facer for corrugated cardboard line
