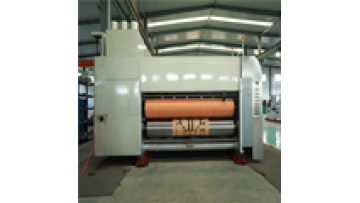

automatic carton 4 color printer slotter and die cutter machine with good quality1

1.This machine is designed and produced based on high qualilty, high speed, high efficiency, reliability and safety, with the advantages of quickly changing order and easy operation.

2.Adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.

3.Adopt high quality material and assembly part.

4.All cylinders and rollers are chrome plated for ideal hardness

5.Transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.

6.Use expansion sets tight link to reduce abrasion of the shaft, keep high precisionof th machine with long time.

7.Adopt hanging structure, auto reset, quick changing order

8.Each unit is equipped with Emergency Stop switch to ensure safety operation.

9.Using Self Locking gap adjustment device for easy operation.

10.Electric element, bearing, and pneumatic element all use international famous brand.

1.Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.

2.Double feeding roller model, quick replacement mechanism for the first feeding rubber roller,

with spring adjustment function, it can prevent distortion and to ensure accurate feeding ofcardboard.

3.Brushes and suction device remove dust from board surface.

4.Touch screen displays production speed and quantity.

5.Adjust the feed interval by manual

1.Both printing cylinder and impression cylinder anre made of high quality steel with grounding surface and

chrome plated. Dynamic and static balance correction ensure to run stability.

2.Adopt hanging structure, convenience and fast to set up.

3.Installing san uninstalling printing plate with pedal swithc or operation panel to control forward and reverse

4.To match with feeding unit the machine with automatic lift anilox, when the feeding unit runs, the anilox roller

goes down to contact with printing plate, while, on contract, leave printing plate

5.Phase position utilizing electromagnetic cluth locking device, with intelligent zeroing function and can reset in

dynamic and static condition.

6.Printing phase adopt PLC touch screen and 360 degree electric ajustment.

7.Pull roller quick lateral moving mechanism, self-locking gap adjustment device.

1.Unique double slotted structure, elimination of Collision between front and back tool, Processing of large size

high carton box,

2.The slot knife thickness is 7-8 millimeter, which is from high quality alloy, tooth profile in sharp cutting, high

wearable.

3.The slot knife with phasing and box height adjustment device, the frequency changer control the dynamic 360

degree adjustment.

4.Precision linear slide way, accurate lateral movement with smooth slotting,

5.Regards the users need it can match the punch device.

6.Pre-creaser, creaser, slotting knife holder, self-locking gap adjustment device.

7.Spring type single slitting knife with glabrous slitting effect and cost saving.

8.Middle knife motorized moving device, fit for each production.

1.Die cut unit roller adopt high quality steel, plated with rigid chrome. High precision dynamic and

static balance increase running stable.

2.Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine do

not die cut, this can lighten machine load and increase rubber roller and die knife life.

3.Matching with feeding system, it with auto up and down device, the rubber roller will down when

feeding paper. The rubber roller will up when stop feeding paper, To make sure every paper die cut

correctly

4.The mechanical transmission rubber roller move 58mm in left and right side, It also with wear and

tear regular could increase the life of rubber roller

5.Die cut phase adopt PLC touch screen, 360 degree adjust electirc number

        Machine with rubber amend device, the rubber roller can be used after many times amend

1. Are you a trading company or factory?

We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.

2. Where is your company located? How can I visit there?

Our factory address: dongguang county, Cangzhou city, hebei province,China. You could go to tianjin airport fist, and then take high speed rail come to cangzhou, we will pick you up.

3. Can you send technician for installation and training?

Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.

4. What’s your advantages ?

--25 years' experience: We have been in making die cutting machine carton box for 25 years.

--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.

5. Whats your guaranty time?

We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
