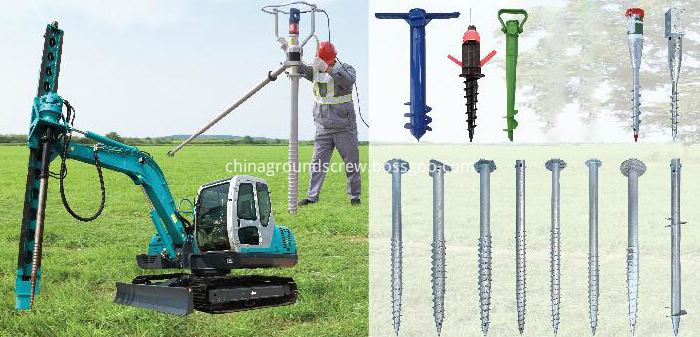

We have strict quality control in the production process of Ground Screw Pile:the raw material of Ground Screw is high-quality steel pipe with guaranteed quality.and the workers are skilled workers with experience in the production of Screw Pile,and adopt welding robot to weld automatically to ensure the quality and beauty of products.
Ground Screw Foundation are suitable for natural ground, also can be installed in rock and tarred surfaces.And the use of Ground Screw Pile not depend on the weather condition,not damage to surrounding landscape,so Ground Pile has been widely used in construction engineering.Including the ground installation of solar panels.
Ground Screw's Material
S 235 or S 350 Carbon Steel
Length of Ground Screws
500-6000 mm
Steel Pipe's Diameter
48 mm,68 mm,76 mm,89 mm,114 mm or according to clients'request
Thickness of Pipe
2.5 mm,2.75 mm,3.0 mm,3.75 mm,4.0 mm
Flange Size
200*8 mm,220*8 mm or according to clients' request
Nut
M 10, M 12,M 14,M 16 or according to clients' request

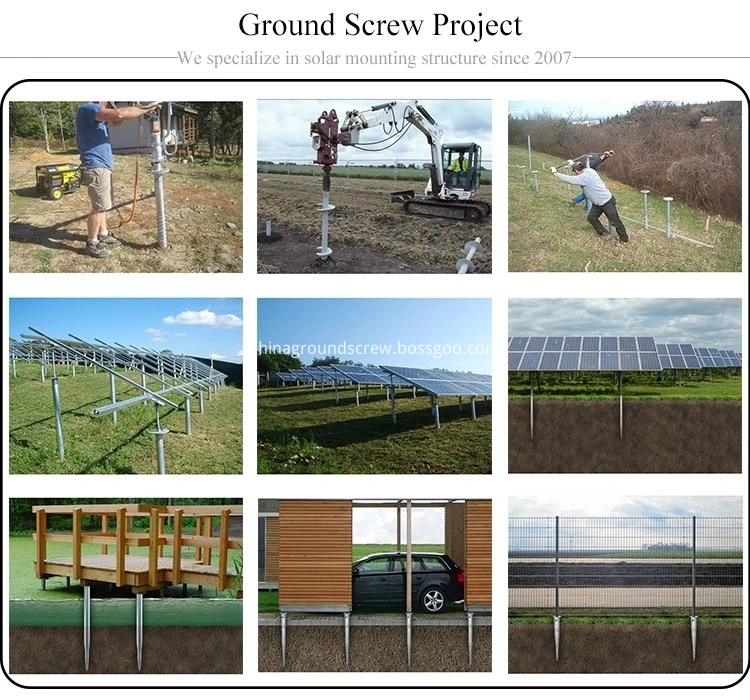

Range of application of Steel Ground Screw: Solar energy system, garden or farm fencing, timber construction, simple house construction, advertising board and banner, traffic signature, lighting pole, flag pole, event structure, sheds and containers .
Common size of Flange Ground Screw are like the below :
76*3*1000*200*8
76*3*1200*200*8
76*3*1500*200*8
76*3*1800*200*8
76*3*2000*200*8
76*3*2500*200*8
89*3.75*1200*200*8
89*3.75*1800*200*8
89*3.75*2000*200*8
114*4*1500*200*8
114*4*1800*200*8
114*4*2000*200*8
114*4*3000*200*8
