Application of motot push rod in automatic wharf

Working Principle

DW Motor Push Rod power from motor and is drove trapezoid screw nut transmission-counter by decelerator to transform motor circular movement into linear motion.

DW motor push rod enjoys high-effective self-locking function. Under lost power situation, it can be stopped and keep loading at any position by brake.

Structure

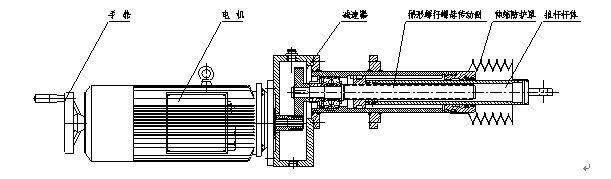

DW motor push rod is made of 1-motor, 2-reducer, 3-trapezium nut transmission countershaft, 4-push rod, 5-flexible protective cover etc.

Technical Parameter (Based on different specification)

Description : Motor Push Rod

Type：DW1000225-12

Rated load：F =1000kg

Effective stroke：S =120mm

Linear speed ：V =12mm/s

Working voltage ：380V（AC）

Rated power：0.55KW

Rated Frequency：50HZ

Protection grade：IP56、F级

Above technical data is only for reference. Please check the nameplate for  actual data.

Lubricate oil point and quantity on DW Motor cylinder.

Motor Push Rdd can not work without limited switch. If the limited switch is not included in order, the external limited switch must be installed in the field to achieve the function.
