Pipe Unclogging Truck
2 year ago
Basic Info.
Packaging & Delivery
Product Description

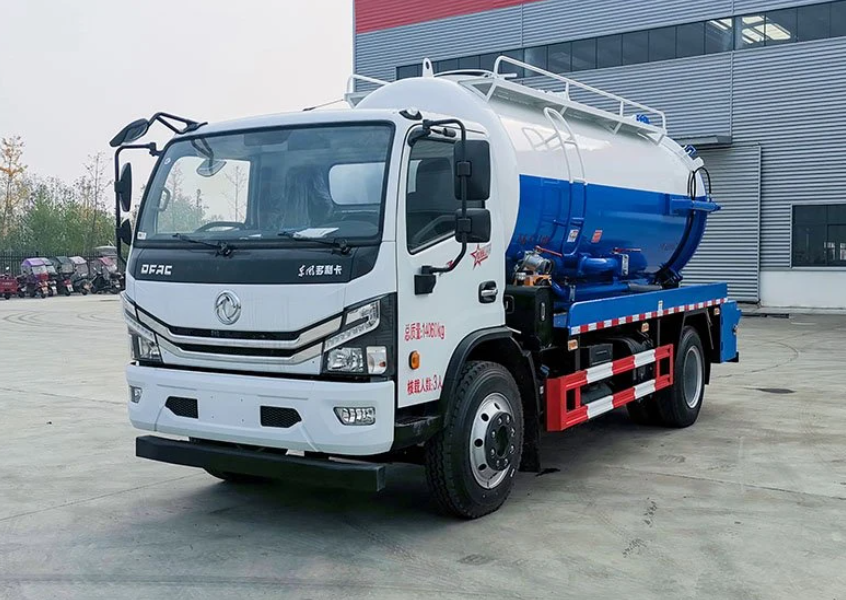

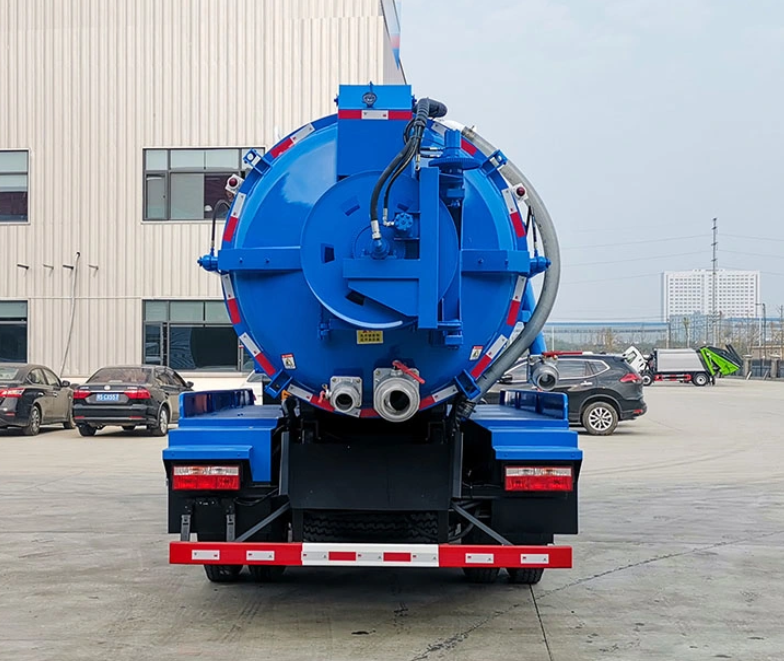

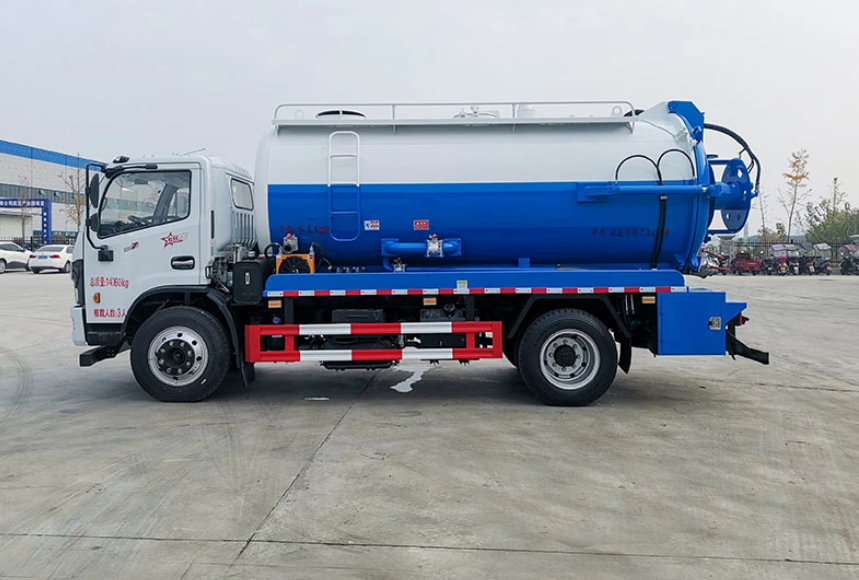

SEWAGE SUCTION TRUCK
LARGE FACTORY PRODUCTION WITH STRENGTH TO ENSURE HIGH QUALITY
Self suction and self discharge
Large capacity high suction long suction distance
Suitable for collecting and transporting liquid
Substances such as feces,mud,crude oil,etc
| Vehicle Technical Parameters | |
| Curb Weight(Kg) | 9100 |
| Boundary Dimension(mm) | 8250×2550×3600 |
| Tank Volume(m³) | 15 |
| Tank Thickness(mm) | 6 |
| Tank Body Material | Q235 Carbon Steel |
| Vacuum Pump Type | Water Cycle/Oil Circulation |
| Vacuum Pump Pumping Speed(m³/h) | 65 |
| Suction Pipe Diameter(mm) | 100 |
| Vertical Suction(m) | 6~8 |
| The Way The Sewage is Discharged | Blowdown Valve/Lift the Tank |
| Operating Ambient Temperature(°C) | -20~45 |
| Number of Passengers in The Cab(People) | 3 |
| Maximum Speed(km/h) | 89 |
| Chassis Technical Parameters | |
| Trade Name | Dong Feng |
| Brake | Automatically Air-Cut Brake |
| Type of fuel | Diesel Oil |
| Engine Power(KW) | Cummins 169KW |
| Front Axle/Rear Axle(t) | 5/10 |
| Gearbox | 8 Speed Manual Transmission |
| Number of Axes | 2 |
| Wheelbase (mm) | 5000 |
| Number of Tires | 6 |
| Tyre Specification | 10.00R20 |
