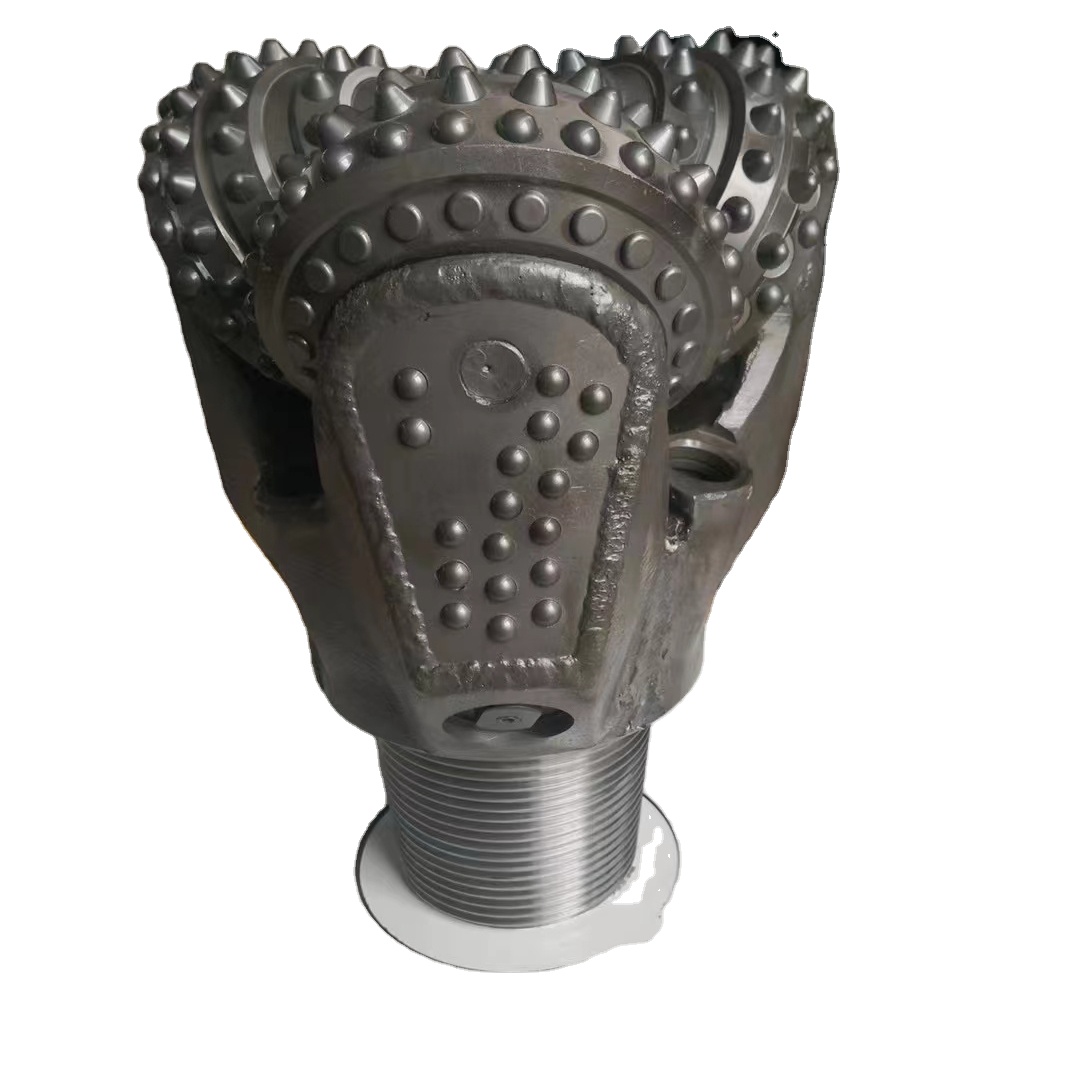

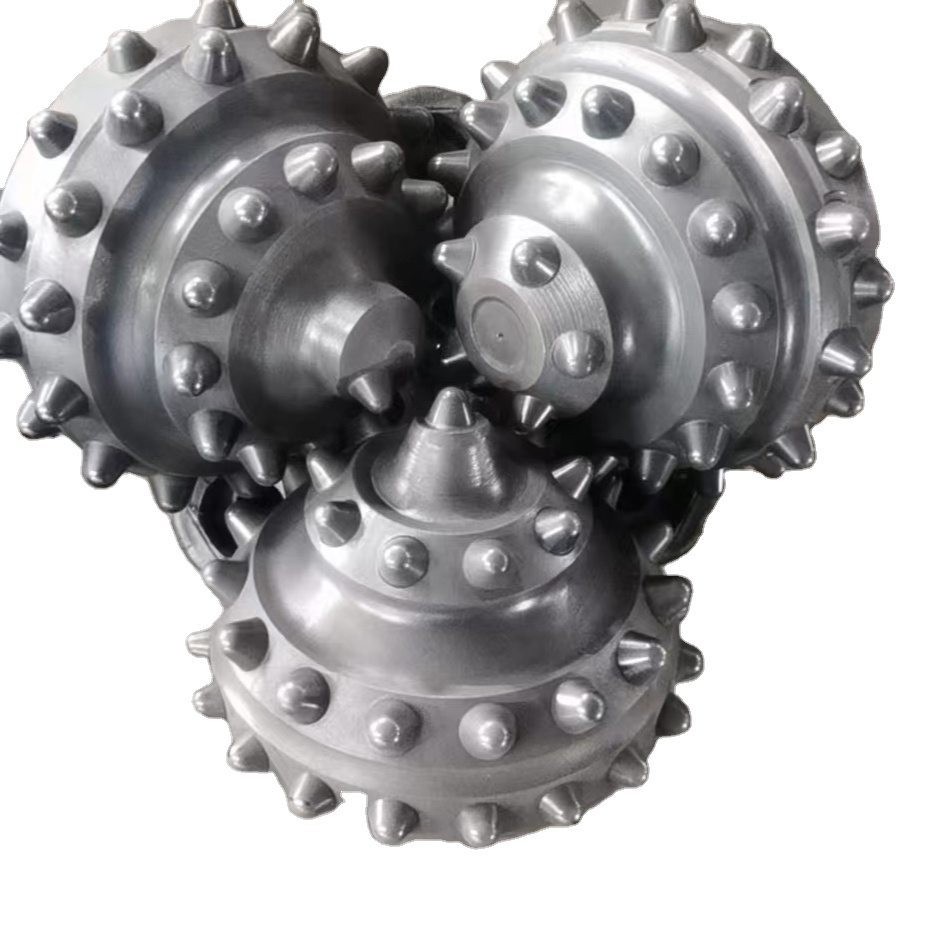

OEM three cone button tci tricone roller drill bit for oil natural gas water well drilling

it Diameter	6"=152 mm
IADC Code	517
Servie Brand	EAST
Pin Thread	API Reg.3 1/2”
Bearing Type	Rubber (O-Ring )Sealed Journal Bearing Bit
Net/Gross Weight	19.5 kgs
Packing Size	200200300mm
Rotary Speed(r/min)	120~50 RPM
Normal WOB	0.35~1.05 KN/MM
MOQ	1 Piece
Cutting Structure	Conical and conical scoop chisel tungsten carbide compacts.
Applications	Soft with thin & hard stringers,such as salt bed,mudstone,sandstone,soft limestone and hard shale,etc.

TRICONE DRILL BITS - STANDARD CONNECTION SIZES

SIZE(in)	STANDARD PIN CONNECTION(in)	MAKE UP TORQUE(KN.M)
3 1/2-4 1/2	2 3/8	4.1-4.7
4 5/8-4 7/8	2 7/8	6.1-7.5
5 1/2-6 3/4	3 1/2	9.5-12.2
7 1/2-8 3/4	4 1/2	16.3-21.7
9 1/2-13 3/4	6 5/8	38-43.4
14 1/2 -26	7 5/8	46.1-54.2

Company Profile

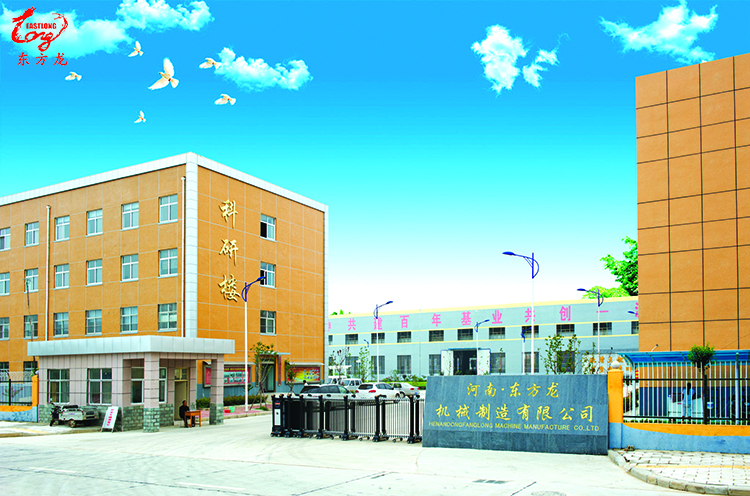

Henan Dongfanglong Machine Manufacture Co.,Ltd was founded on 1999, with the location of the Intersection of 106 National High way and Jintian Road, East Industries Areas of Puyang, Henan, China. We have nearly 20 years of experience of producing, developing and selling tubing coupling,casing coupling,pup joints,tool joints,and so on. We have the ISO 9001 Quality Control Certificate, API - 5CT Certificate with the NO. 5CT-0837 and API - 7 certificate with the NO. 7-0649. Now we cooperate eith other company to make tricycle,we can design and produce them according to customer's detail require.
