17.5m aerial work truck

2 year ago
12 0
Product details

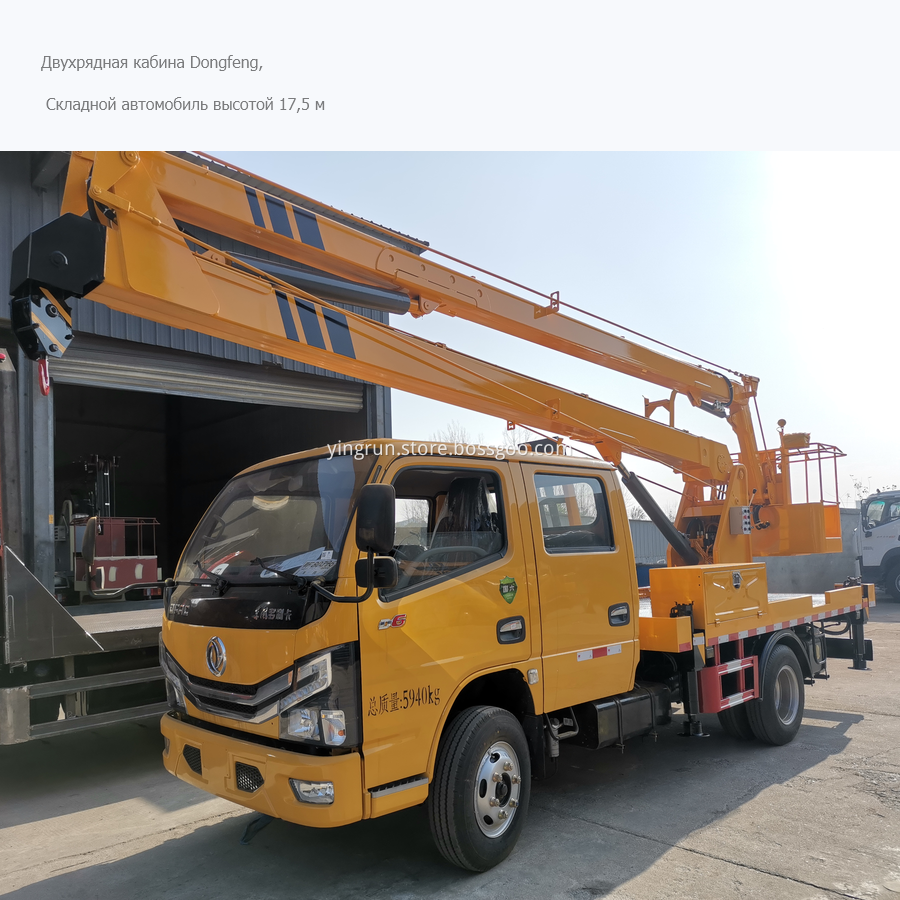

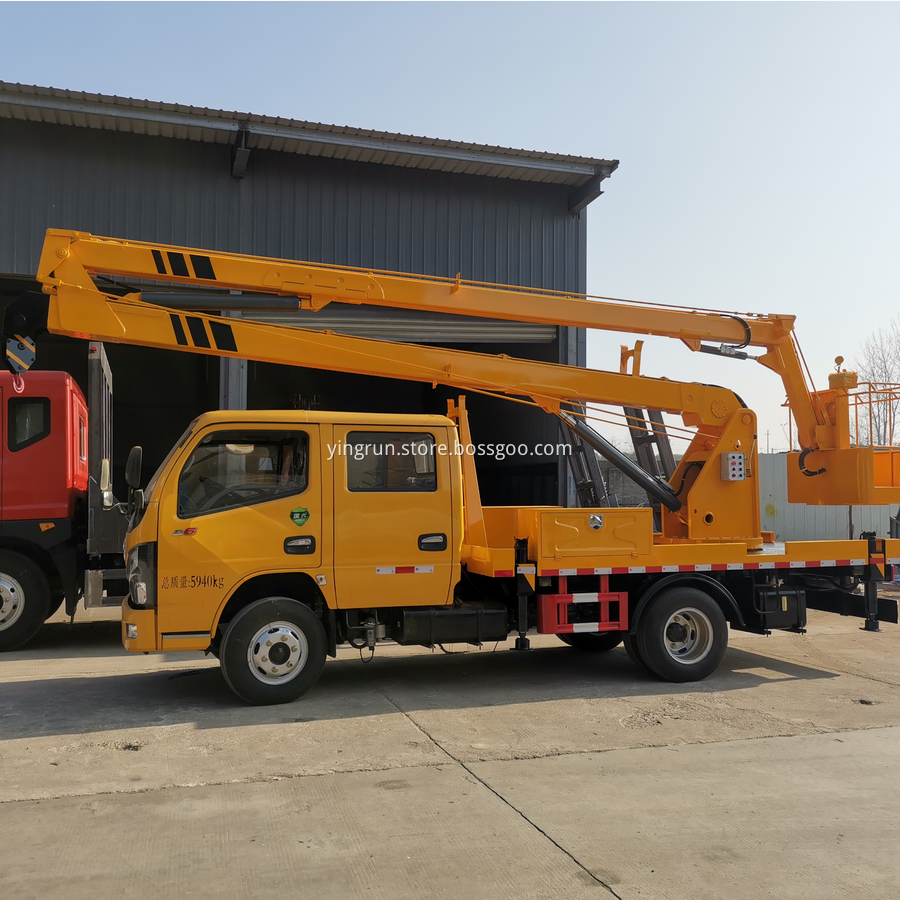

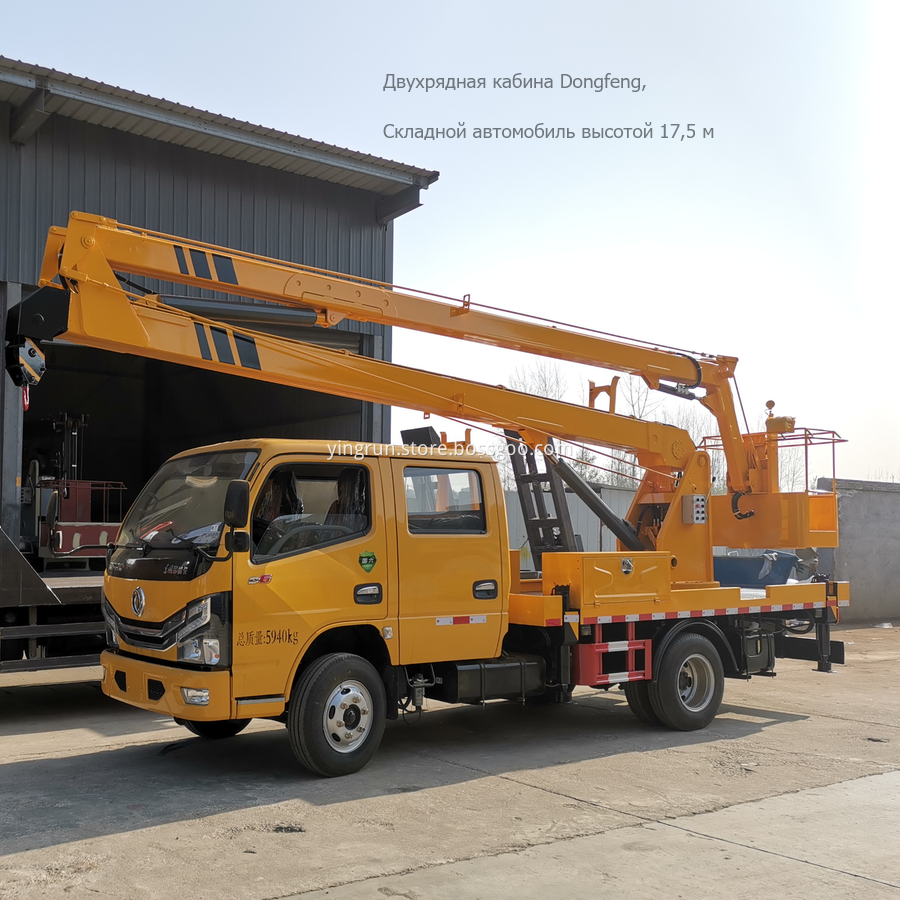

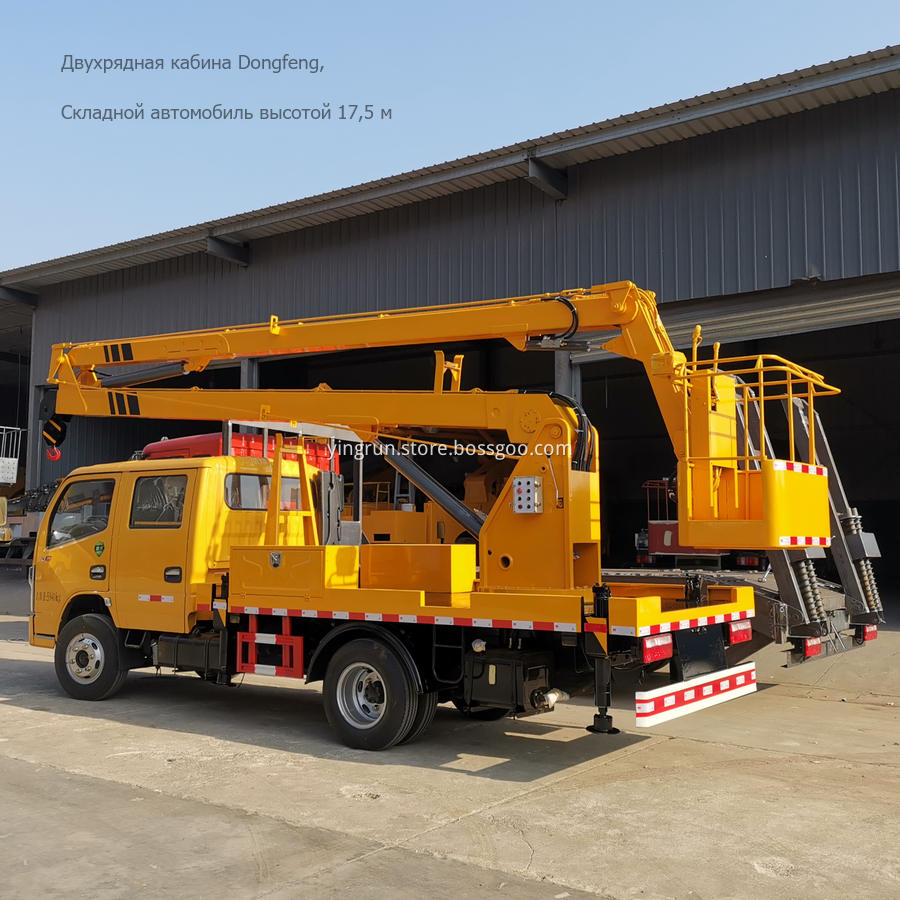

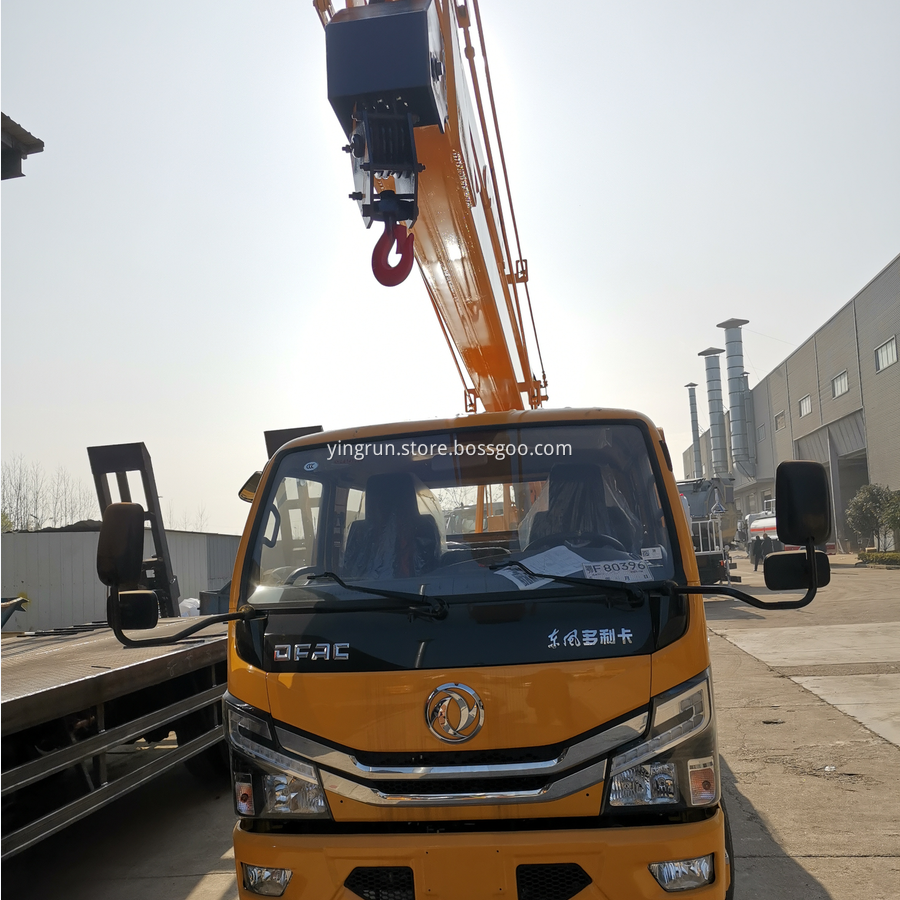

The cab configuration of this foldable Dongfeng Dolika 17.5meter high-altitude work vehicle is as follows:
The color is engineering yellow, and the chassis model is EQ1075DJ3CDF. This Dongfeng 17.5-meter aerial work vehicle is equipped with a full diesel 115 horsepower engine, with power assist, air brake, air conditioning, Wanliyang 5GT32, 6/6+5 leaf spring, 1.8/3.5T axle, 7.00R16 steel wire tire, 192mm single-layer straight frame, air conditioning, electric door and window, central control lock, air brake, exhaust brake, dynamic rotation, clutch assist, ABS, and self-adjusting arm.
The Dongfeng curved arm 17.5meter aerial work platform has two sets of electric control operations, located at the turntable and on the work platform. The oil cylinder is equipped with a bidirectional balance valve and a locking function for the oil cylinder. It has three folding arms and four hydraulic support legs that are fully extended and can be adjusted separately. The support legs are equipped with hydraulic locks, and the front and rear support legs are equipped with flashing warning lights. The turntable rotates 360 ° hydraulically, and the electric control switch can automatically return to its original position. The work height is 17.5 meters
The main arm of this 17.5meter high altitude opration vehicle for street light installation adopts hydraulic 360 degree full rotation, three folding arms, a single hydraulic lifting cylinder, with a bidirectional balance valve and an electrically controlled lifting arm. The four hydraulic cylinders can be adjusted and the supporting legs are equipped with bidirectional hydraulic locks (the supporting leg operation is manual and can be controlled separately). There are two sets of operating platforms, with a 1-ton hook and a maximum lifting weight of 1 ton
17.5maerial17.5m17.5m17.5m
