NH2K3-Single Point Load Cells

2 year ago

28 0 

Zhejiang Nanhua Electronic Technology Co., Ltd

5 year

Product details

The HY-2K3 single point load cell is a medium capacity load cell ideal for bench scales and medical scales.

Constructed from aluminium and environmentally sealed with potting compound to ensure durability.

The HY-2K3 enables scales with 4000d accuracy to be constructed with platform sizes of 400 x500mm.

Features:

Range: 50-500KG

Suitable for various electronic weighing equipment such as electronic pricing scales and electronic platform scales

Material: Aluminum alloy material, colorless anodizing treatment;

Appearance: Silicone rubber seal, colorless anodizing treatment of elastomer

Recommended platform size: 250 * 350mm

Wiring method:

Technical parameter table

PARAMETERS
Sensor Range	KG	50-500	Rated load
Accuracy level		C2&C3
Comprehensive error	FS	±0.03% & ±0.017%	Comprehensive error
sensitivity	mv/v	2.0±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.02	Creep
Zero temperature effect	%FS/10℃	±0.02	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.02	Temp.effect on span
Nonlinear	FS	±0.02	Non-Linearity
Hysteresis	FS	±0.02	Hysteresis
Repeatability	FS	±0.02	Repeatability
Input impedance	Ω	350±5	Input resistance
Output impedance	Ω	405±10	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	1.5米Φ4屏蔽线	Cable

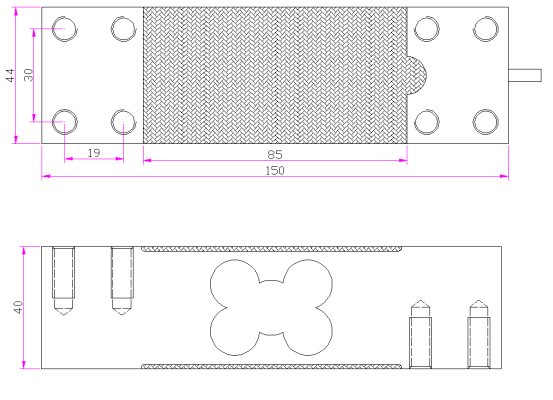

Overall dimensions:

NH2K3.2

Application scenario

06d9ab2162ff29e3f655c534c20f3c65_d6d6d7f73ef16bbbddda0b201d
