NH3B4-Miniature Load Cells
2 year ago
A tension and compression sensor is a commonly used force sensor that can measure the tension or pressure exerted on an object. It consists of a metal spring and a measuring element. When an object exerts tension or pressure on a sensor, the spring will deform, causing the measuring element to generate an electrical signal
Pull and press sensors are widely used in industrial automation, mechanical equipment, automotive manufacturing, medical devices, and other fields. Common applications include force measurement, load monitoring, and pressure control.
Features:
Range: 20KG-1000KG
Suitable for electronic weighing equipment such as pressure measurement and control
Structure: Alloy steel material, surface electroplating treatment;
Appearance: waterproof and sealed
|
|
|

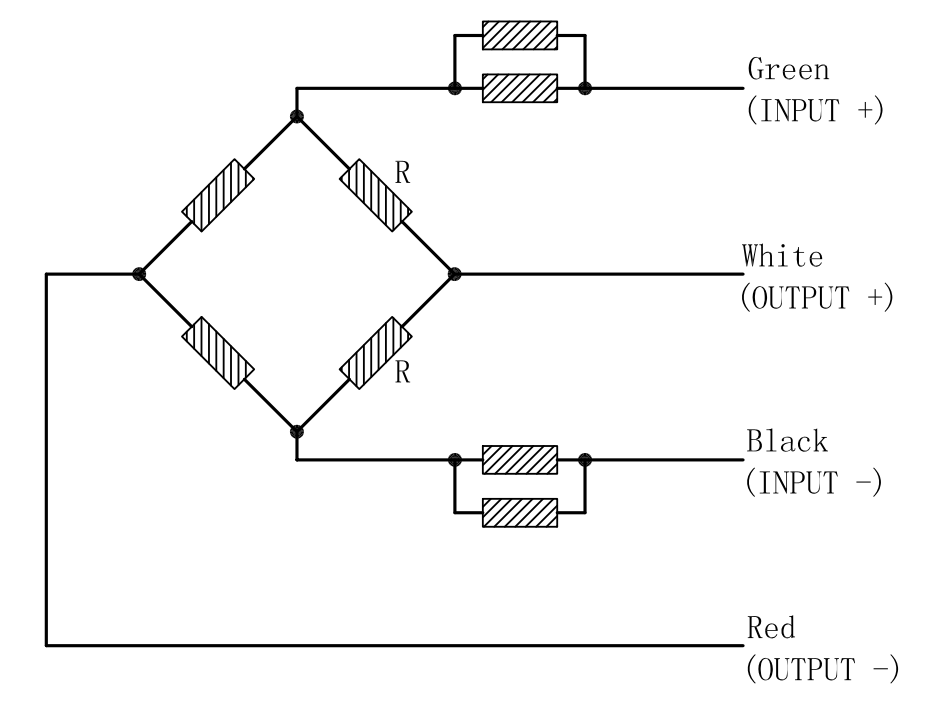

Wiring method: |
|
|
| Technical parameter table: |
| PARAMETERS | |||
| Sensor Range | 20KG-1000KG | Rated load | |
| Accuracy level | |||
| Comprehensive error | %FS | 0.5 | Comprehensive error |
| sensitivity | mv/v | 1.5-2.0 | Rated output |
| Zero point output | FS | ±1% | Zero balance |
| creep | %FS/30min | ±0.5 | Creep |
| Zero temperature effect | %FS/10℃ | ±0.5 | Temp.effect on zero |
| Sensitivity temperature influence | %FS/10℃ | ±0.2 | Temp.effect on span |
| Input impedance | Ω | 350±30 | Input resistance |
| Output impedance | Ω | 350±5 | output resistance |
| insulation resistance | MΩ | ≥5000(100V) | Insulation resistance |
| Temperature compensation range | ℃ | -10-40 | Compensated temp.range |
| Operating temperature range | ℃ | -35-65 | Use temp.range |
| Excitation voltage | V | 5-12（DC） | Excitation voltage |
| Safe overload range | % | 150 | Safe overload |
| Protection level | IP65 | Defend grade | |
| wire | m | 1.5米Φ3屏蔽线 | Cable |
|

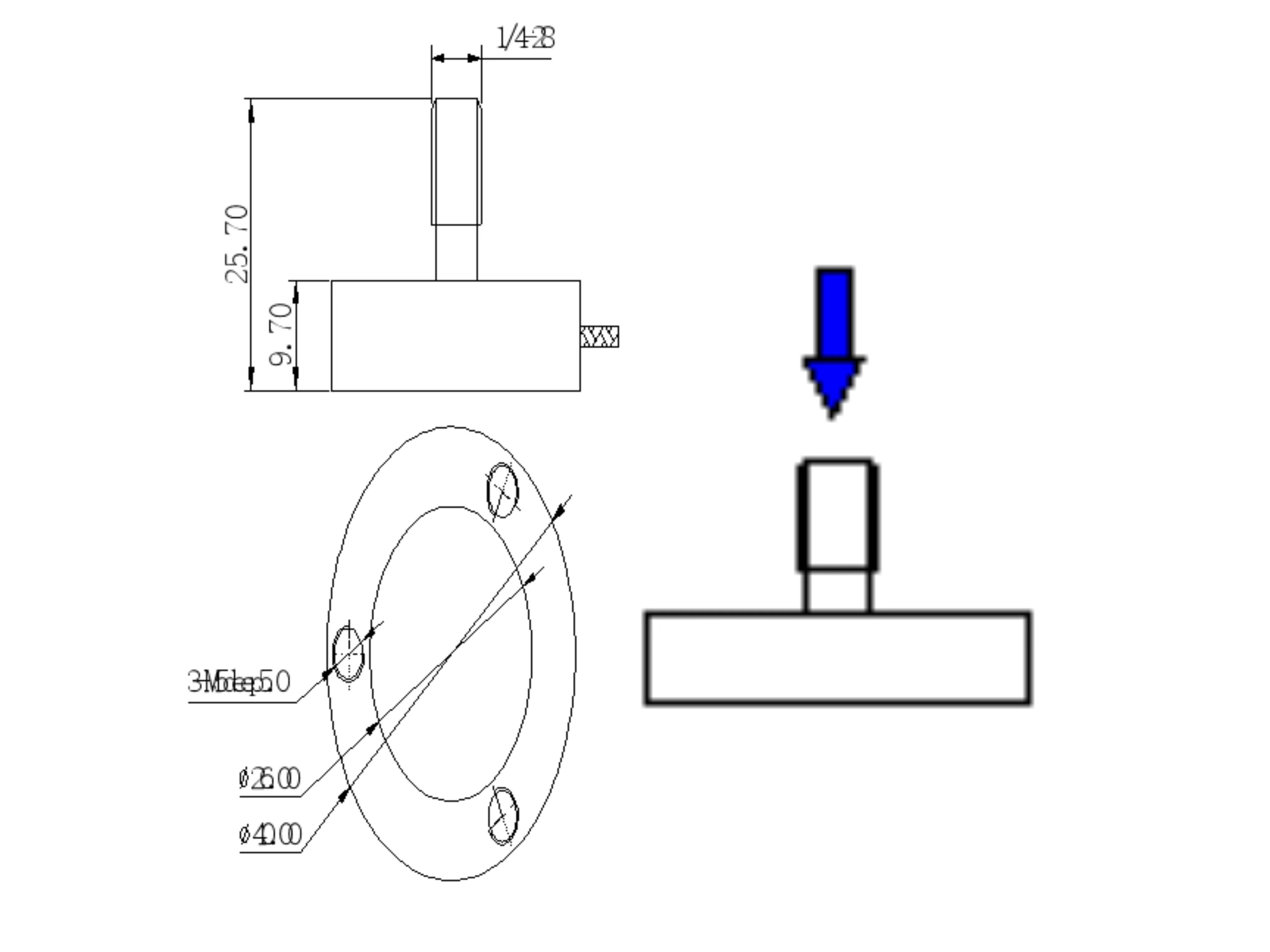

Overall dimensions: |
 |
|
