NH3S1-S-Type Load Cells

2 year ago

27 0 

Zhejiang Nanhua Electronic Technology Co., Ltd

5 year

Product details

S-type load cells is the most common sensor among the sensors, which is mainly used to measure the tension and pressure between solids. It is also commonly known as tension pressure sensor. Because its shape is like s shape, it is customarily also known as S-type load cell. This sensor is made of alloy steel, rubber sealed and protected, easy to install and easy to use.S type sentor, It is suitable for hanging scale and batching scale, Electronic force measuring and weighing system such as machine scale.S type load cell .

Features:

Range: 50KG-20T

Widely used for tension measurement in industrial automation process control such as overhead crane scales and hopper scales

Structure: Made of alloy steel, designed with an S-shaped structure, with bi-directional load-bearing in tension and compression;

Appearance: waterproof and sealed

Wiring method:

Technical parameter table:

PARAMETERS
Sensor Range	T	0.05-20	Rated load
Comprehensive error	FS	0.05%	Comprehensive error
sensitivity	mv/v	2.0±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.05	Creep
Zero temperature effect	%FS/10℃	±0.05	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.05	Temp.effect on span
Nonlinear	%FS	±0.05	Non-Linearity
Hysteresis	%FS	±0.05	Hysteresis
Repeatability	%FS	±0.05	Repeatability
Input impedance	Ω	350±50	Input resistance
Output impedance	Ω	350±5	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
wire	m	3米Φ5屏蔽线	Cable

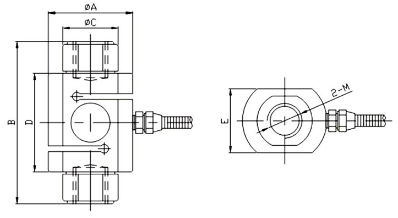

Overall dimensions:

And More

20210330_163517_001

096430a96ad01be943ece9a7a537c29
