NH3S2-S-Type Load Cells

2 year ago

32 0 

Zhejiang Nanhua Electronic Technology Co., Ltd

5 year

Product details

THEelastomer of S-type Load Cells is made of alloy steel; the surface is nickel plated, waterproof and anti-corrosion, and the protection grade reaches IP66 / 67.It has simple structure, high reliability and good interchangeability. Applicable to all kinds of proportioning scales. Hopper scale, hook scale, etc
High Accuracy Load Cell is very important for digital scale.Contact us to get more information about Load Cells.

Features:

Range: 0.05-5T

Widely used for tension measurement in industrial automation process control such as hook scales and hopper scales

Structure: Made of alloy steel, designed with an S-shaped structure, with bi-directional load-bearing in tension and compression;

Appearance: waterproof and sealed

Connection mode

Specification

PARAMETERS
Sensor Range	T	0.05-5	Rated load
Comprehensive error	FS	0.05%	Comprehensive error
sensitivity	mv/v	2.0±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.05	Creep
Zero temperature effect	%FS/10℃	±0.05	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.05	Temp.effect on span
Nonlinear	%FS	±0.05	Non-Linearity
Hysteresis	%FS	±0.05	Hysteresis
Repeatability	%FS	±0.05	Repeatability
Input impedance	Ω	350±50	Input resistance
Output impedance	Ω	350±5	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	3米Φ5屏蔽线	Cable

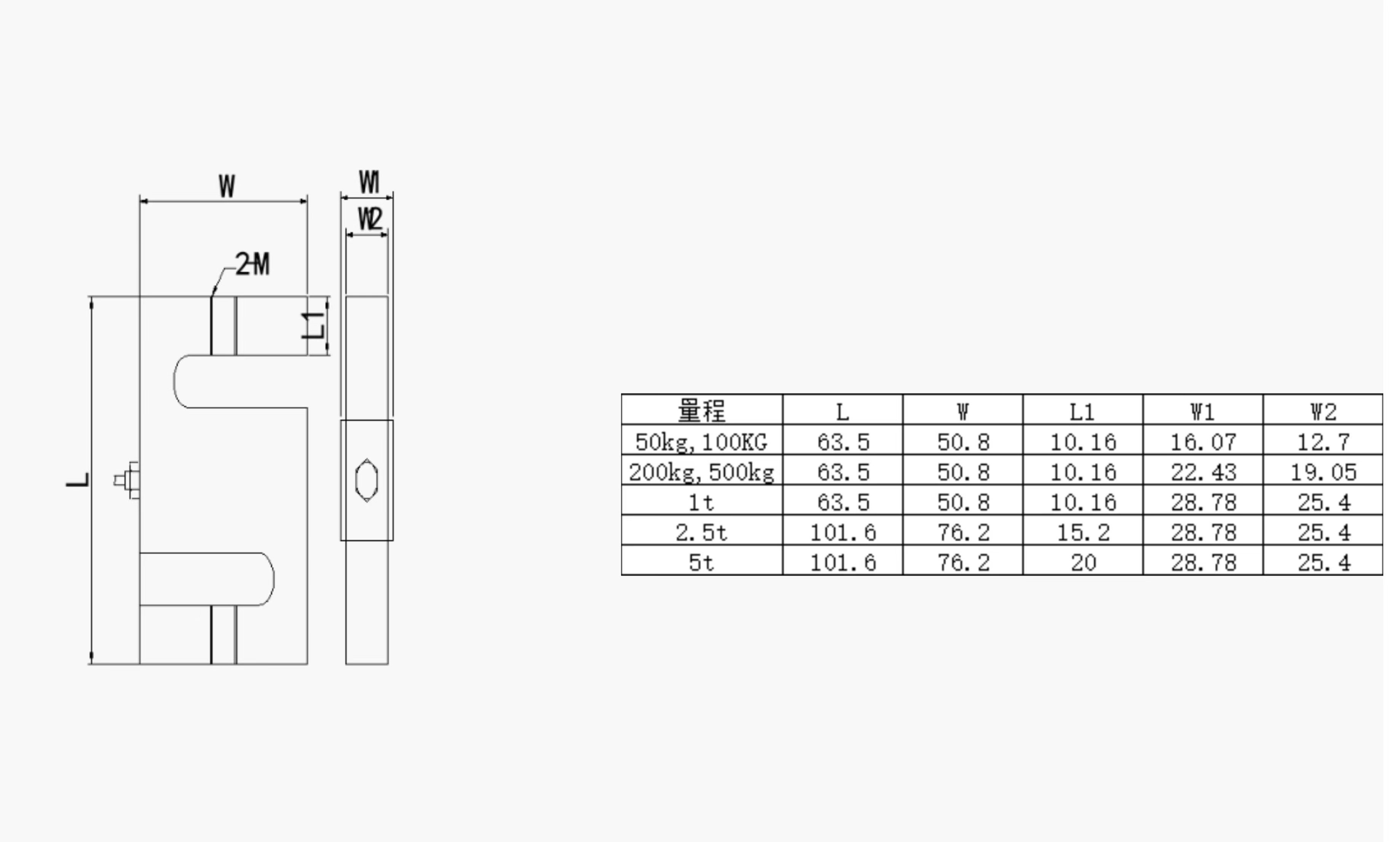

Dimension
