NH3S3-S-Type Load Cells

2 year ago

31 0 

Zhejiang Nanhua Electronic Technology Co., Ltd

5 year

Product details

The NH3S3 S-type load cells, measuring range 100kg~2T option, tension and compression force measurement, Good stability, with low temperature drift.
aluminum alloy steel material, have good mechanical property. Strong resistance to mechanical fatigue, Good corrosion resistance, Waterproof IP67.Widely used in Belt scale,hopper scale, universal material testing machine and various engineering force measuring systems.Tension Sensor Easy to installation and operation.100-5000kg S type load cell

Features:

Range: 0.1-5T

Widely used for tension measurement in industrial automation process control such as hook scales and hopper scales

Structure: Made of alloy steel, designed with an S-shaped structure, with bi-directional load-bearing in tension and compression;

Appearance: waterproof and sealed

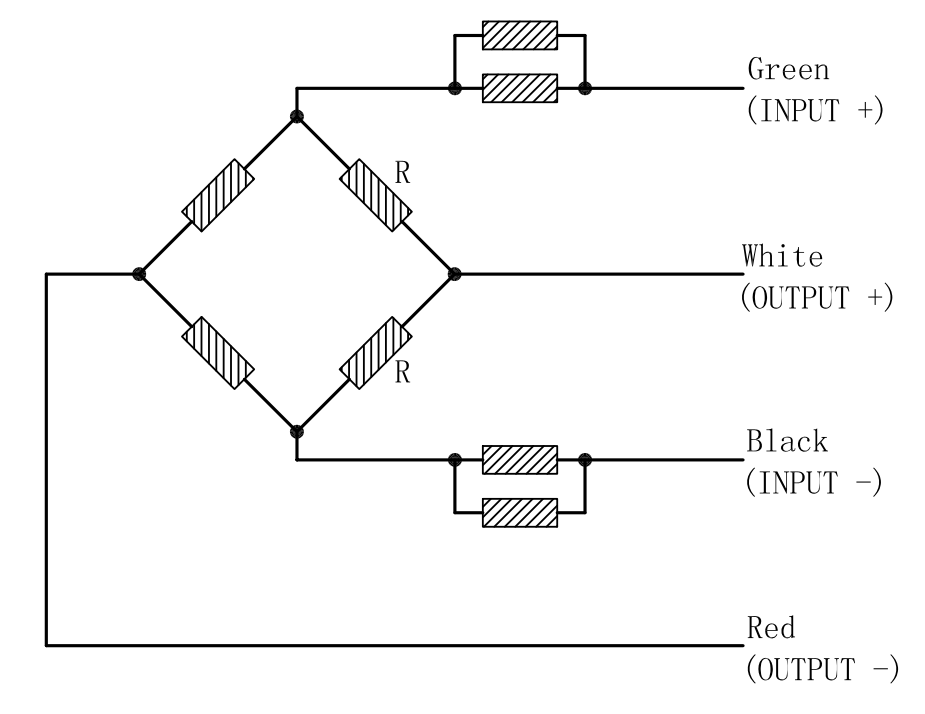

Wiring method:

Technical parameter table

PARAMETERS
Sensor Range	T	0.1-5	Rated load
Comprehensive error	FS	0.05%	Comprehensive error
sensitivity	mv/v	2.0±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.03	Creep
Zero temperature effect	%FS/10℃	±0.05	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.03	Temp.effect on span
Nonlinear	%FS	±0.03	Non-Linearity
Hysteresis	%FS	±0.03	Hysteresis
Repeatability	%FS	±0.03	Repeatability
Input impedance	Ω	350±50	Input resistance
Output impedance	Ω	350±5	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	3米Φ5屏蔽线	Cable

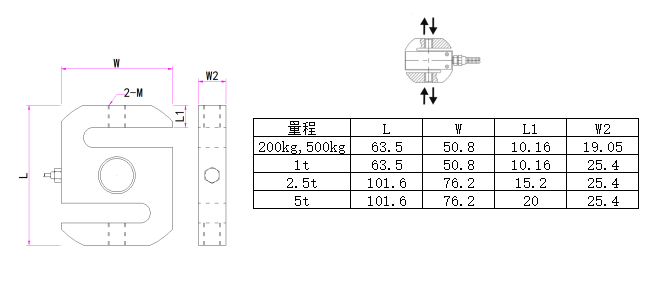

Overall dimensions:

NH3S3.1

And More

load cell

20210330_163517_001

096430a96ad01be943ece9a7a537c29
