NH3S4-S-Type Load Cells
2 year ago
S-type load Cells is the most common sensor among the sensors, which is mainly used to measure the tension and pressure between solids. It is also commonly known as tension pressure sensor. Because its shape is like s shape, it is customarily also known as S-type load cell. This sensor is made of alloy steel, rubber sealed and protected, easy to install and easy to use. It is suitable for hanging scale and batching scale, Electronic force measuring and weighing system such as machine scale.Features: Range: 0.2-5T Widely used for tension measurement in industrial automation process control such as hook scales and hopper scales Structure: Made of alloy steel, designed with an S-shaped structure, with bi-directional load-bearing in tension and compression;
Appearance: waterproof and seale
|
| Wiring method: |
|
|
Technical parameter table:
PARAMETERS
Sensor Range
T
0.2-5
Rated load
Comprehensive error
FS
0.05%
Comprehensive error
sensitivity
mv/v
2.0±0.2
Rated output
Zero point output
FS
±1%
Zero balance
creep
%FS/30min
±0.03
Creep
Zero temperature effect
%FS/10℃
±0.05
Temp.effect on zero
Sensitivity temperature influence
%FS/10℃
±0.03
Temp.effect on span
Nonlinear
%FS
±0.03
Non-Linearity
Hysteresis
%FS
±0.03
Hysteresis
Repeatability
%FS
±0.03
Repeatability
Input impedance
Ω
350±50
Input resistance
Output impedance
Ω
350±5
output resistance
insulation resistance
MΩ
≥5000(100V)
Insulation resistance
Temperature compensation range
℃
-10-40
Compensated temp.range
Operating temperature range
℃
-35-65
Use temp.range
Excitation voltage
V
5-12（DC）
Excitation voltage
Safe overload range
%
150
Safe overload
Protection level
IP65
Defend grade
wire
m
3米Φ5屏蔽线
Cable

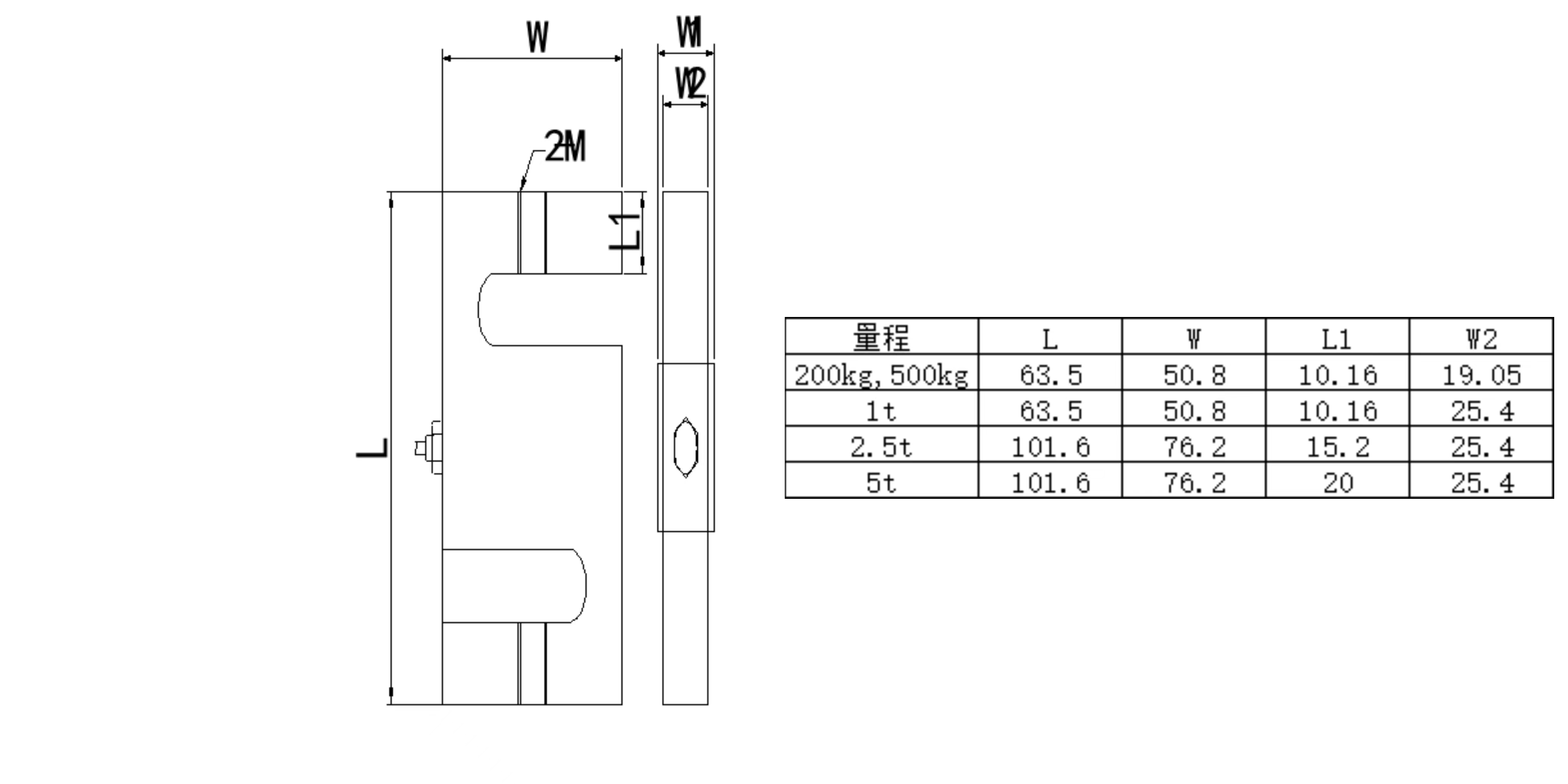

Overall dimensions:
|
