NH4N2-Automation Application Sensors

What is the working principle of the Torque Wrench Sensor?

torque wrench is a tool used to install or remove fasteners such as bolts and nuts. Its working principle is based on the torque principle, which can be understood from the following.
Strain principle:
The main components of a torque wrench are the spring and torque sensor. When torque is applied to the handle of a torque wrench, the spring expands and contracts freely, creating a certain amount of strain. This strain is detected by the sensor and converted into an electrical signal.
Electrical signal conversion:
The sensor converts the detected strain into an electrical signal and transmits it to the torque wrench's control system. The control system converts the electrical signal into a torque value displayed on the torque wrench.
Torque adjustment:
Torque wrenches usually have an adjustable handle or knob that is used to adjust the amount of torque applied to the fastener. By turning the handle or knob, you can change the amount of torque delivered to the wrench head.

 What are the properties of the NH4N2 Torque Wrench Sensor?

Range: 50-1000NM

Application: Widely used in electronic torque wrench and torque testing equipment.

Material: Alloy steel, surface plating treatment.

Appearance: Waterproof sealing

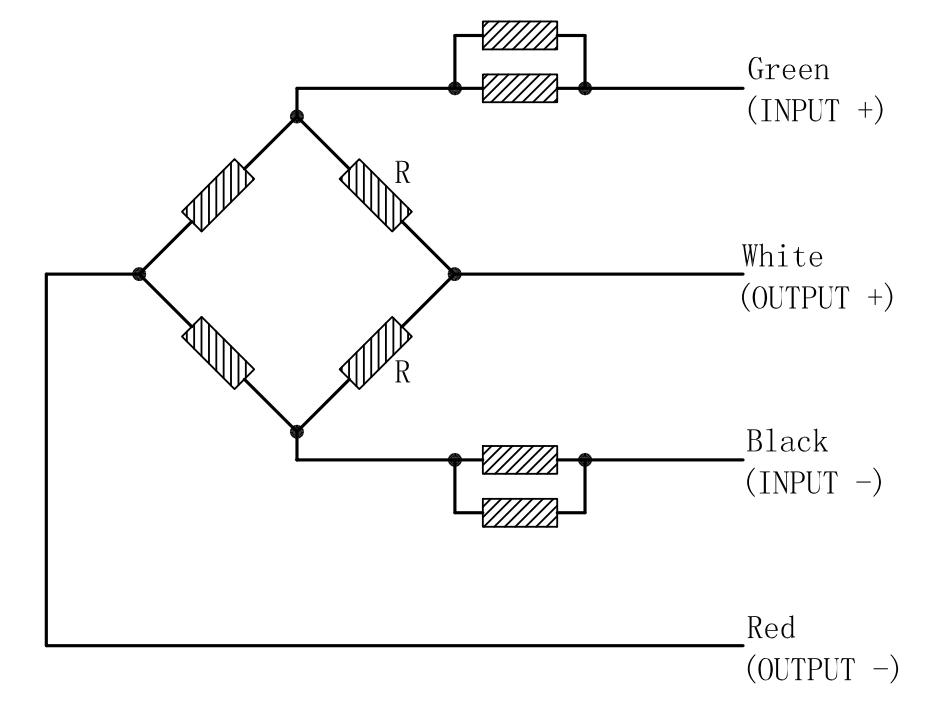

Wiring Method:

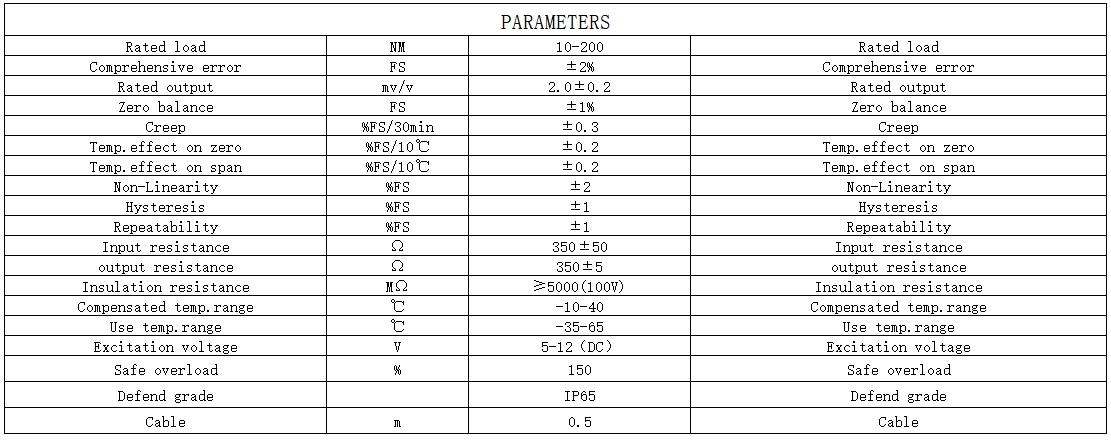

Technical Parameters Table:

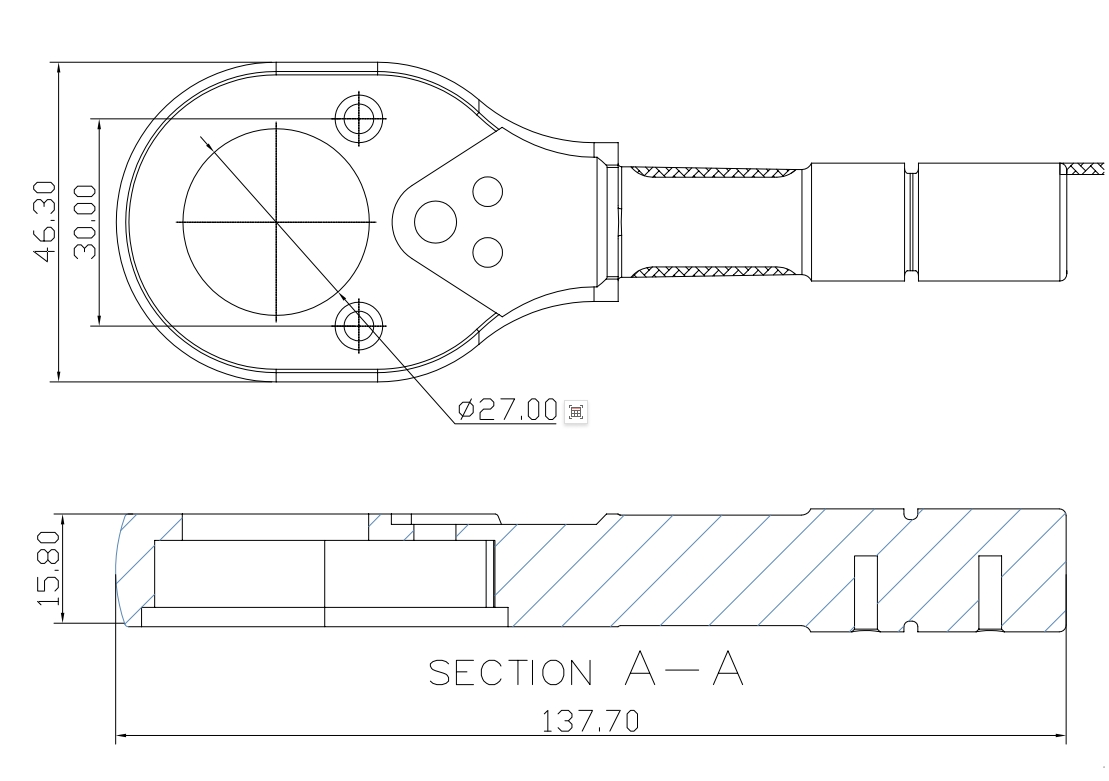

External Dimensions:

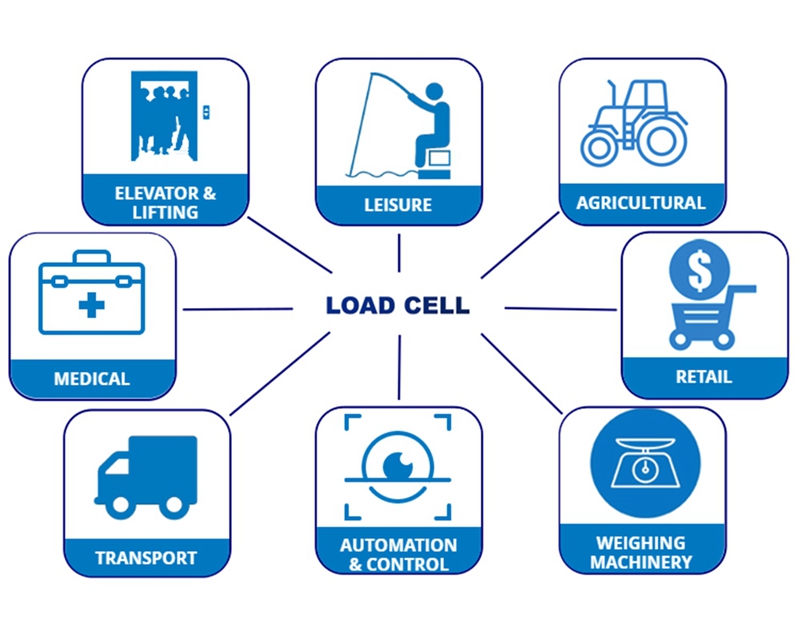

Product Application Scenarios:

Torque Sensors is a precision measuring instrument to measure various torque, speed, and mechanical power. The application range is very wide, mainly used for:

1) Torque and power detection in torque boarders.

2) The detection of torque and power in railroad locomotives, automobiles, tractors, airplanes, ships, mining machinery.

3) It can be used for the detection of torque and power in sewage treatment system.

4) It can be used in the manufacture of viscometers.

5) It can be used in process industry and flow industry.

6) can be used in laboratories, testing departments as well as production monitoring and quality control.

3. What is the shelf life of this product?

  The shelf life of this product will be one year.

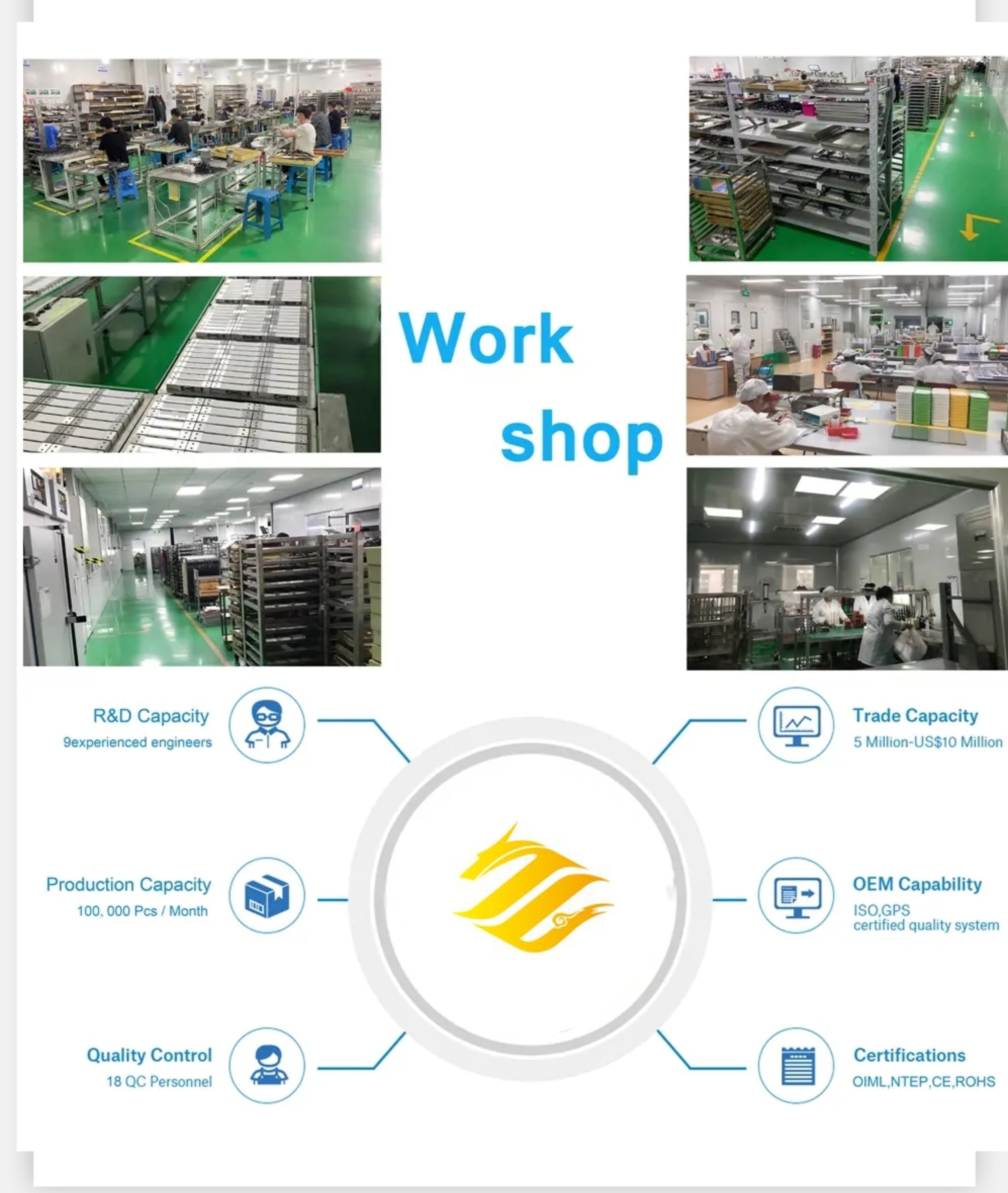

Our workshop:
