Product details

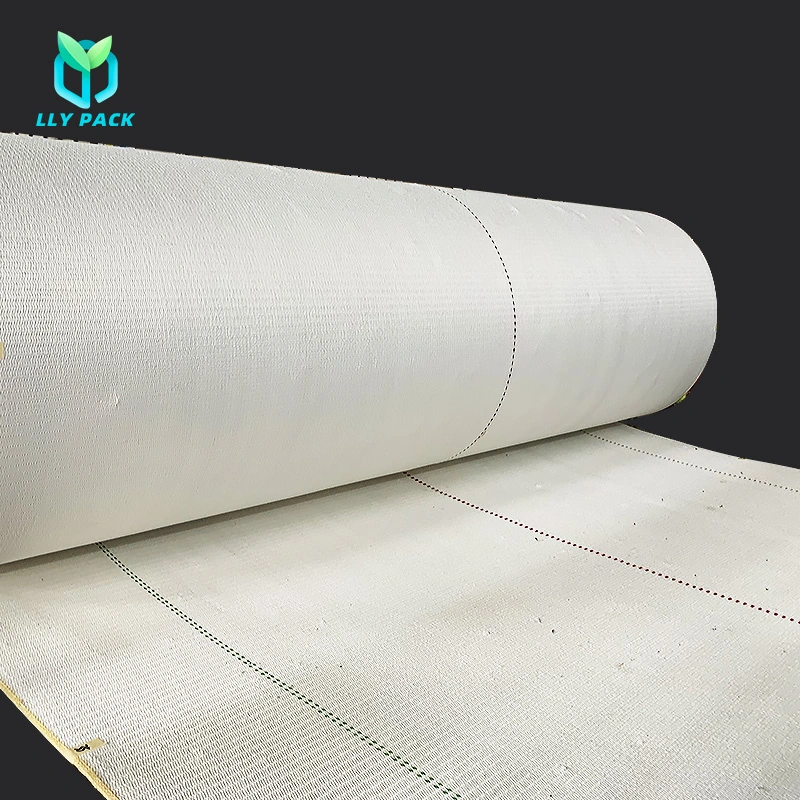

Heat wear resistant double facer belt for corrugated line double facer corrugated machine Double Facer Belts

We're the unique Company participating in the domestic industry standard customization of corrugated belts Double Facer Belts KAI TUO

WHY CHOOSE US?

1,The first domestic machine capable of producing a conveyor belt with a large width of 3300 mm Double Facer Belts

2,Obtained a patent for the anti-collision edge

3,The surface of the conveyor belt is made of Austrian imported Tencel, which improves water absorption and air permeability by 7.8%

4,Under normal circumstances ,it can be used for 80million meters or more

MODEL-FCH	EDGE REINFORCEMEN FCH-FZ	KEVLAR EDGE REINFORCEMEN FCH-JQ	TRACION BELT FCH-QY
NEIGHT KG/M2	7.5	7.5	3
THICKNESS mm	9.1±0.3	9.1±0.3	6±0.5
WIDTH mm	1400-3300	1400-3300	400-1400
THERMAL ENDURANCEºC	200ºC	200ºC	150ºC
FRICTION FACTOR	0.45	0.42	0.38
BREAKING STRENGTH KG/M	30000	32000	10500
MOISTURE ABSORPTION /RELEASE RATIO	129%	120%	----
STEAM LM2-H	6.560	6.051	----
FLEXIBILITY TRANSVERSE	0.96%/180ºC	0.93%/180ºC	----
FLEXIBILITY LONGITUDINAL	0.68%/180ºC	0.63%/180ºC	----

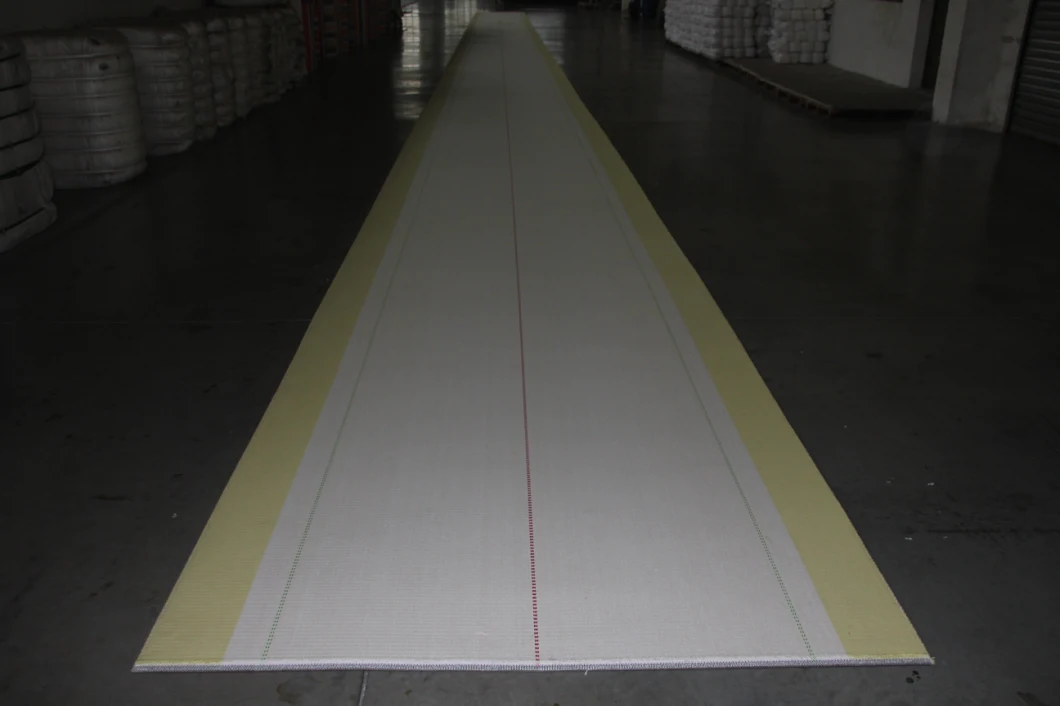

China Manufacturer High Temperature Resistance Corrugated Double Facer Kevlar Belt

Two Options For Joint, Flock Coating Or Hot Melt Glue Double Facer Belts

The joint made by the Hot Melt Glue curing process of high temperature resistant colloid can not only protect the steel buckle well, but also be firm and durable. It also ensures that the deviation between joint height and the belt surface is less than 0.2mm, which greatly reduces the cardboard production process Waste. It also solve the impact of indentation on cardboard printing

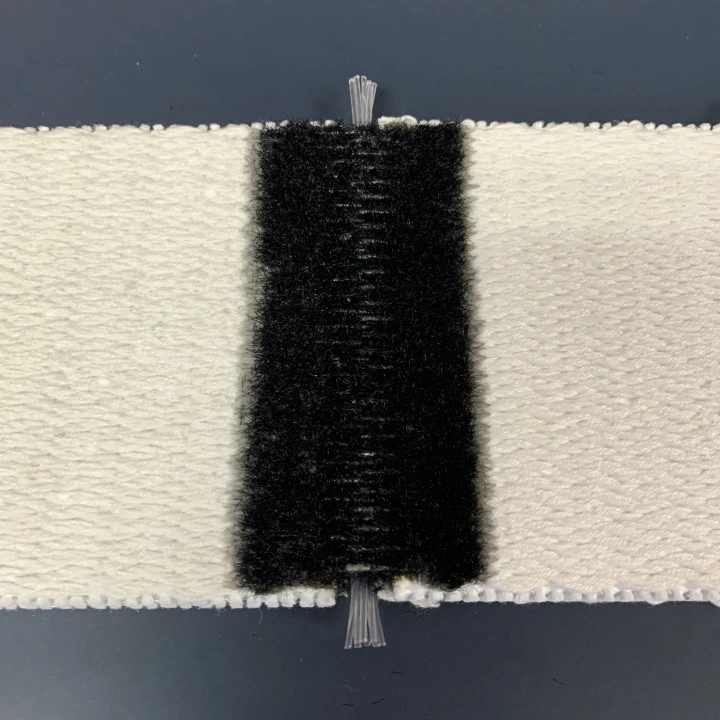

For E flute corrugated cardboard, flock coating joint is recommened.
Imported flocking glue is used, which is not easy to shed and is firm

Apply polyester filament in the middle of the belt to make the belt not deformed . The longitudinal shrinkage rate of the belt is 0.9%

High Speed & Low Noise Woven Belt Double Facer Belts

Weaving technic: multi-layer single filing

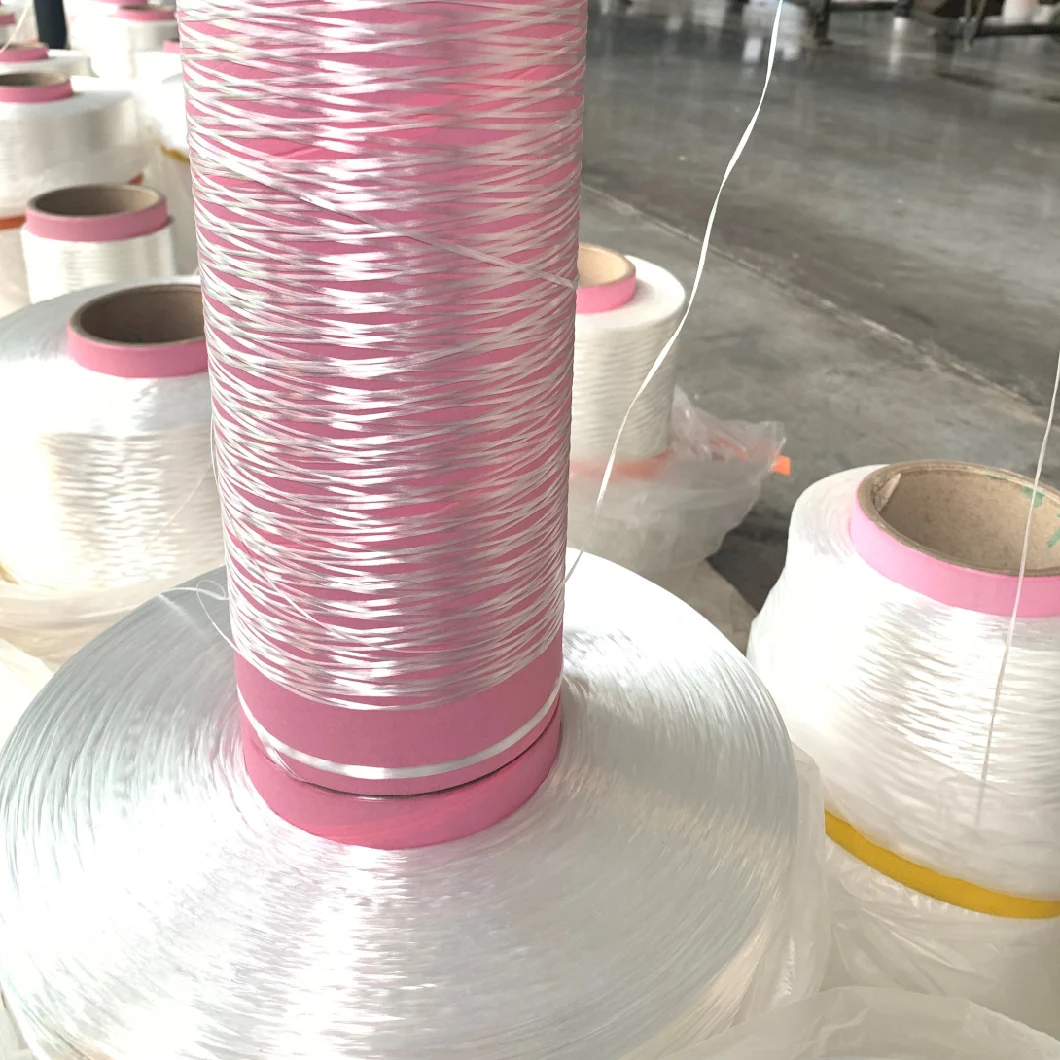

Material: polyester yarn, polyester filament, Tencel and Kevlar
Feature: weaving texture clear, neat edge, stable dimension, heat and pressure-resisting, anti-static, outstanding traction,
surface and seam-sealing even.Great absorbency, drying and anti- static enable corrugated board transport flawlessly and
efficiently in production line

TAIQUAN FUMA MINGJIA

Q1: How long is the liftime of the conveyor belt?
A: Under normal circumstances (not operational error or mechanical failure), it can be used for 80million meters or more.

Q2: How about the fastest trial speed?
A: 330m/min.

Q3: Lead time?
A: Generally, 30-45 days. If the customer needs urgently, the lead time can be shortened.

Q4: Why is the price not the lowest among the industry?
A: The product process is different. Our factory has participated in the formulation of national standards, and the product hasobtained a patent for collision avoidance.

Q5: What corrugated cardboard production line has our conveyor belt used?
A: Suitable for BHS MARQUIP MITSUTBISHI ISOWA MINGWEI FULI AGNATI and ect
