NH3B11-Miniature Load Cells
13 month ago
A micro force sensor is a type of sensor that can measure small forces. It is usually made of piezoelectric materials or Strain gauge and has high sensitivity and precision.
Micro force sensors usually have the characteristics of small size, light weight, high accuracy, and fast response speed. They are widely used in fields such as machinery, aerospace, automobiles, medical equipment, etc., for measuring the magnitude and direction of forces
Features:
Range: 50-300g
Widely used in tension testing devices for textile equipment
Structure: Aluminum alloy material, micro structure
Appearance: waterproof and sealed
|
|

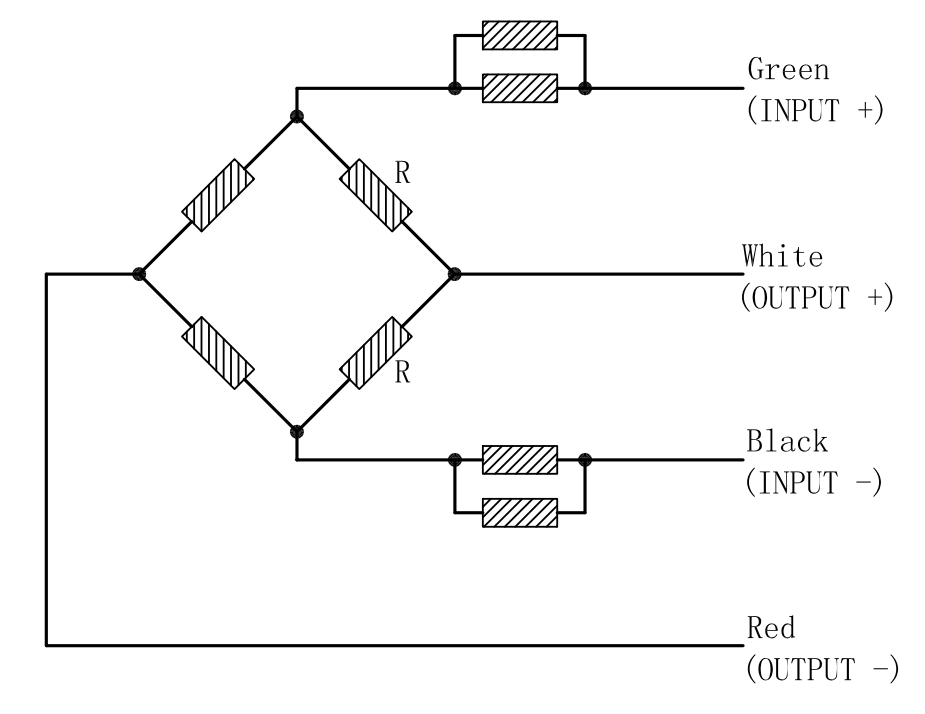

| Wiring method: |
|
|
| Technical parameter table: |
| PARAMETERS | |||
| Sensor Range | g | 50-300 | Rated load |
| Comprehensive error | %FS | ±0.05 | Comprehensive error |
| sensitivity | mv/v | 1.0±0.2 | Rated output |
| Zero point output | FS | ±1% | Zero balance |
| creep | %FS/30min | ±0.05 | Creep |
| Zero temperature effect | %FS/10℃ | ±0.05 | Temp.effect on zero |
| Sensitivity temperature influence | %FS/10℃ | ±0.05 | Temp.effect on span |
| Nonlinear | %FS | ±0.05 | Non-Linearity |
| Hysteresis | %FS | ±0.05 | Hysteresis |
| Repeatability | %FS | ±0.05 | Repeatability |
| Input impedance | Ω | 1000±50 | Input resistance |
| Output impedance | Ω | 1000±5 | output resistance |
| insulation resistance | MΩ | ≥5000(100V) | Insulation resistance |
| Temperature compensation range | ℃ | -10-40 | Compensated temp.range |
| Operating temperature range | ℃ | -35-65 | Use temp.range |
| Excitation voltage | V | 5-12（DC） | Excitation voltage |
| Safe overload range | % | 150 | Safe overload |
|
Overall dimensions: |
 |
|
