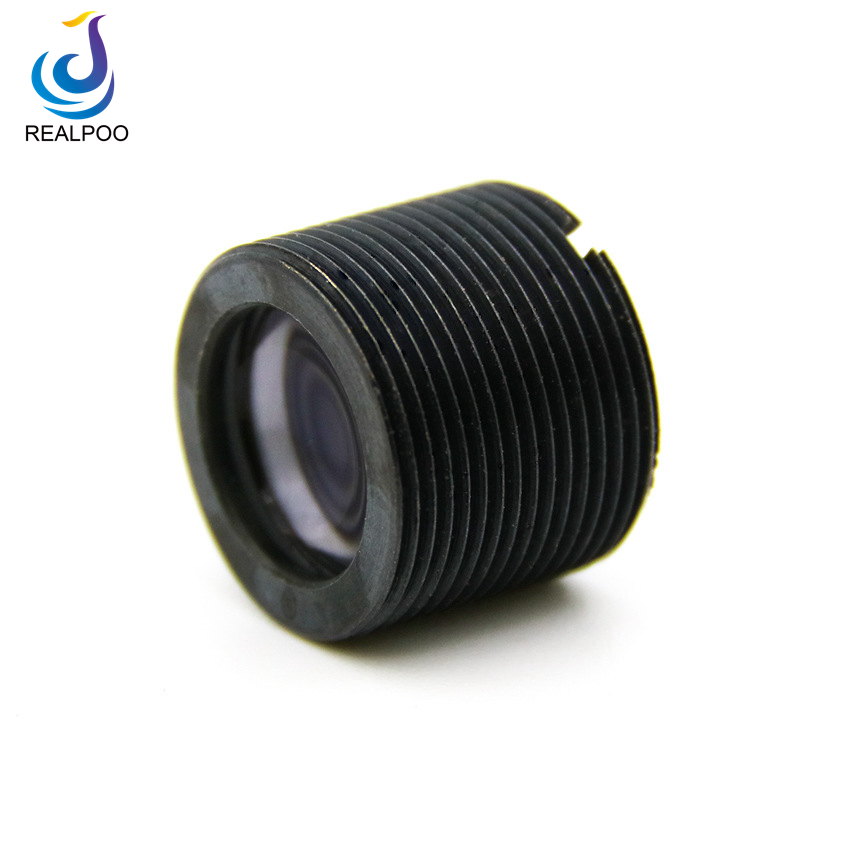

M10 FL11.2 collimator lens

2 year ago

13 0 

Changchun Realpoo Photoelectric Co., Ltd.

10 year

Product details

M9x0.5 mm threaded housing , single glass lens design . This single element lens gives around 15-20% increase in output compared with the 3-element lenses with a reduction in beam quality.

Specifications:

Lens Material : Single element ; Coated optical glass

Lens Holder : 10mm x 0.5mm thread , 8mm length , brass

EFL ( Effective Focal Length): 11.2mm

CA (Clear Aperture) : 7/6.5mm

NA (Numerial Aperture) : 0.3152mm

Coating : 400-700nm

Realpoo Optics can offer laser collimating lens in various focal length, and the threaded casing can be customized.

Realpoo Optics is a professional manufacturer of optical glass lenses, such as Spherical Lens, Powell Lens, Fresnel Lens, Diffraction Grating etc. The optics can be offered with coating or without coating. Welcome to send your inquiry
