Coil Intralogistics And Storage System

Cross type combine coil transport vehicle(coil logistics warehousing system)

1. Mode of taking coil(coil logistics transportation system): The child vehicle runs to the bottom of coil and picks it up;

2. Mode of transporting coil(coil logistics transportation car): The child vehicle is topped with coil and runs to the mother vehicle, which moves in a straight line at medium and low speed;

3. Contact mode: There is a track holding action when the child vehicle track is aligned with the ground track;

4. Contact mode: The fixed saddle is installed on the ground, and the entire vehicle runs below the ground;

5. Contact mode: The lifting of the child vehicle is guided by a cross over;

6. Positioning function: With laser distance detection and positioning, scale detection and positioning, proximity switch detection and positioning, multiple positioning modes cooperate to achieve precise positioning;

7. Power supply mode: cable tray power supply;

8. Max speed: The maximum speed of the parent vehicle is 0.5 m/s;

9. Vehicle monitoring: Equipped with a vehicle monitoring system to monitor the status of loading and unloading coils in real-time;

10.Anti collision detection: The mother vehicle has anti collision detection function.

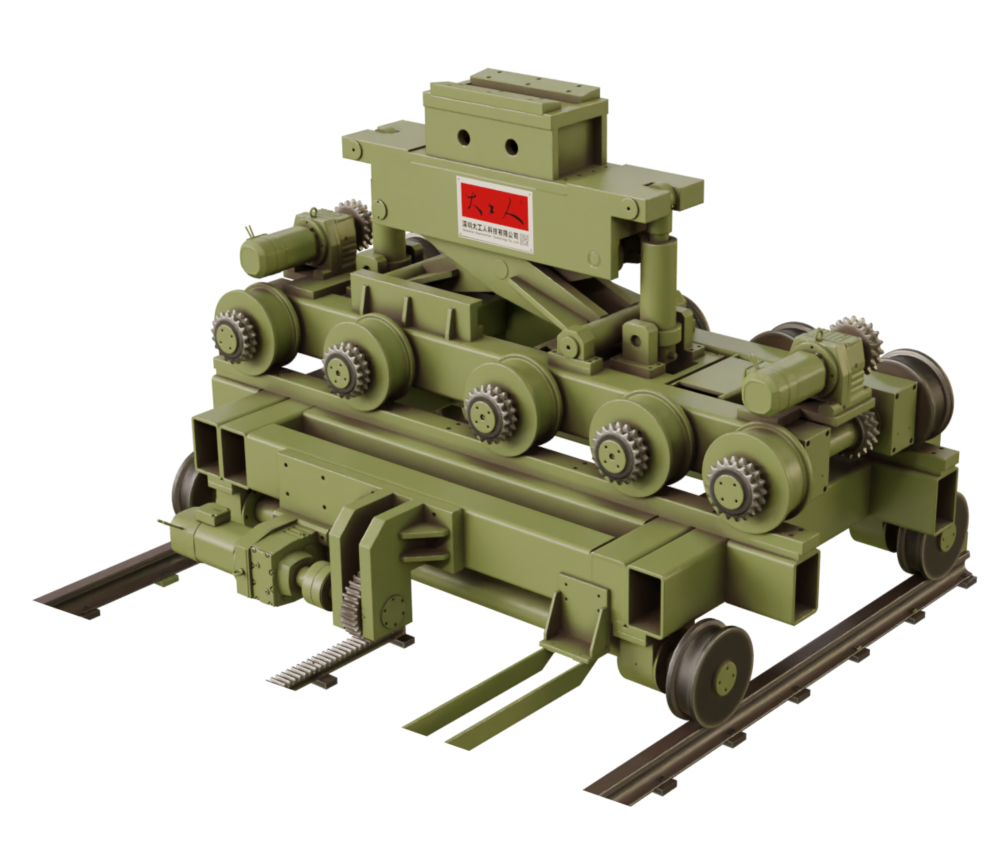

Appearance
