Yuchai 50kW trailer silent diesel generator set
2 year ago

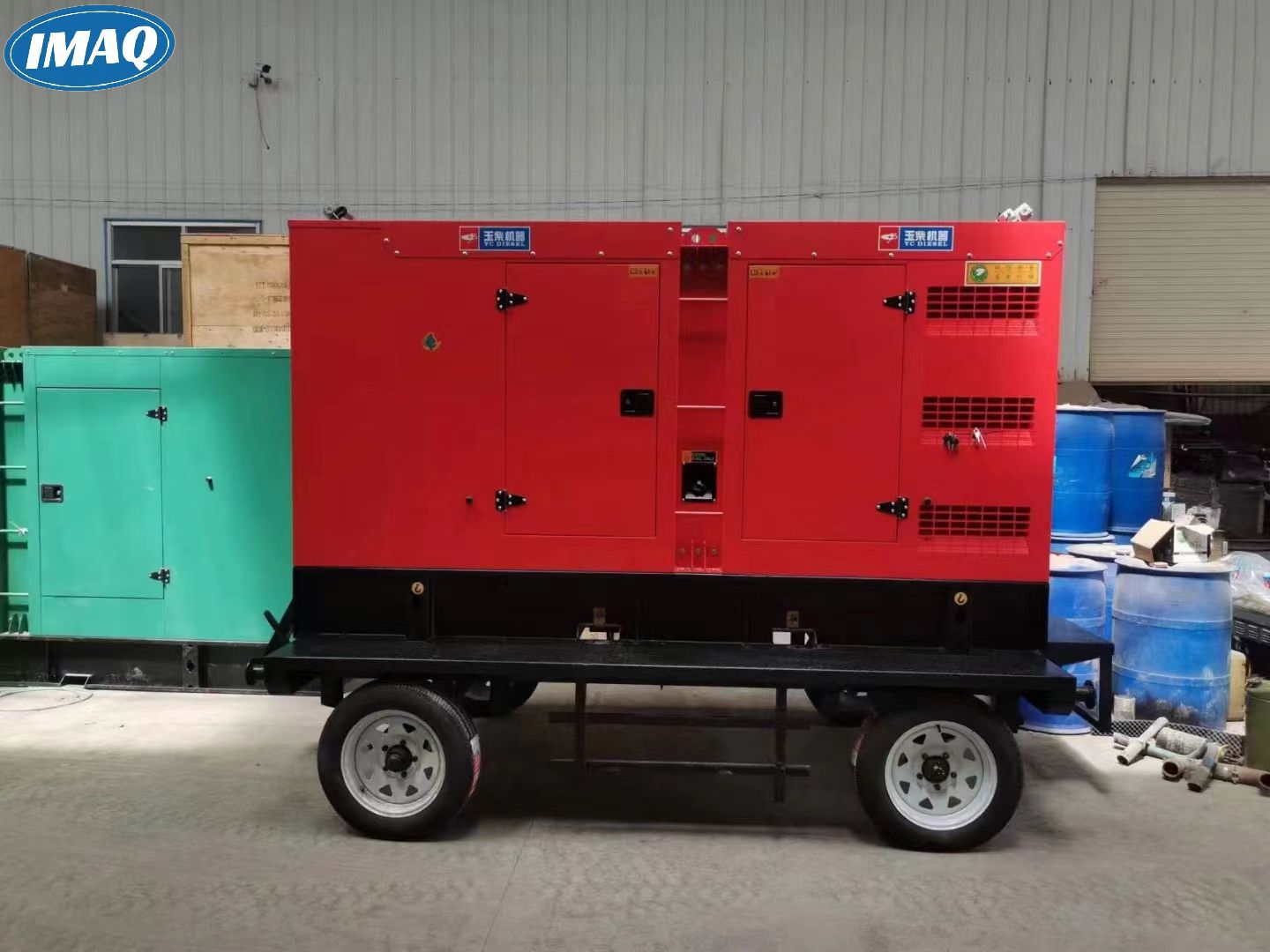

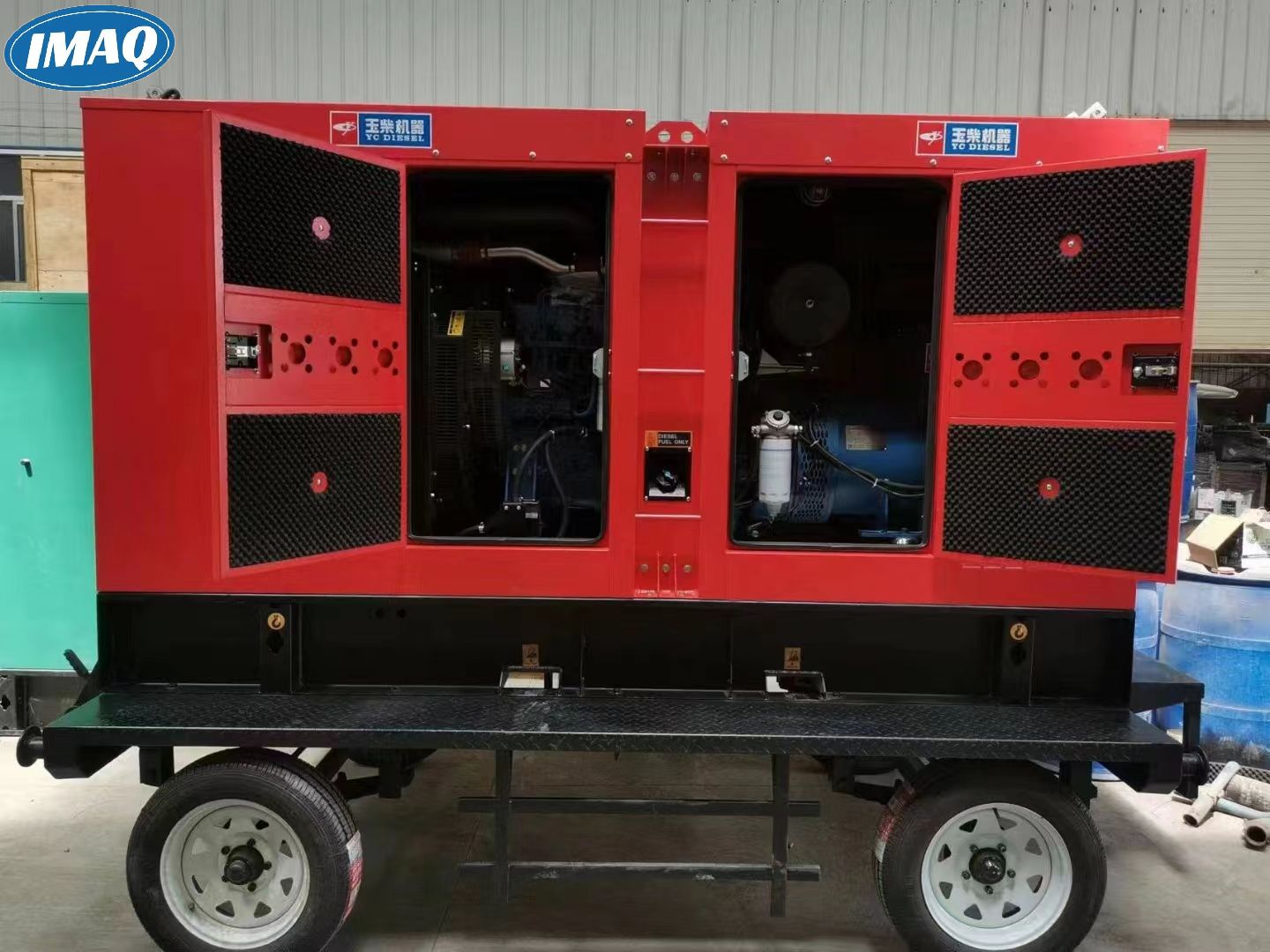

Yuchai 50kW mobile trailer silent diesel generator set
Weifang series diesel engine, pure copper brushless motor, low price, complete qualifications, perfect after-sales, welcome to consult the order production! The company has advanced production equipment, superb technical strength, rich design and production experience. Complete testing methods, and strict implementation of quality management system, to ensure that each product factory pass rate and reliability of operation. At the same time, the company has a fast and perfect after-sales service system, so that the company's products in the fierce market competition, win the trust of the majority of users.
Application scenario:
The company's products are widely used in industrial and mining enterprises, forest pastures, posts and telecommunications, as well as hospitals, troops, fire and other units, can be used as life production power supply, but also as an emergency backup power supply.
Welcome to our details page, the range of products includes construction machinery such as medium and large excavators, mini excavators, and pile drivers, mining equipment like crushers, and energy equipment comprising generator sets. Welcome detailed consultation
Parameters:
|
Diesel generator set data |
|||
|
Type |
50GF |
Unit power (KVA/KW) |
62.5/50 |
|
Output voltage (V) |
400/230 |
Rated output current (A) |
90 |
|
Wiring mode |
Three-phase four-wire |
Power factor |
0.8（lag） |
|
Starting mode |
24V DC Starting |
Frequency (Hz) |
50 |
|
Unit weight (kg) |
900 |
Unit size (L*W*H) |
1800×750×1300mm |
|
Diesel engine data |
|||
|
Manufacturer |
Weifang |
Model |
R4105ZD |
|
Rated speed (Rpm) |
1500 |
Maximum engine power (KW) |
56 |
|
Number of cylinders |
4 |
Cylinders are arranged |
straight line |
|
Cylinder diameter × stroke (mm) |
105×125 |
Displacement (L) |
4.33 |
|
Intake mode |
turbocharging |
Compression ratio |
16：1 |
|
Fuel |
China 0# light diesel |
100% load fuel consumption (G/KW.h) |
258 |
|
Lubricating oil specification |
15W/40CD |
Lubricating oil consumption (L/h) |
0.5% fuel consumption |
|
Starting mode |
Electric starting |
Oil capacity (L) |
28 |
|
The engine cooling method |
Meet the ambient temperature 40℃ radiator, belt driven cooling fan, with fan guard |
||
|
Generator data |
|||
|
Model |
STC-50 |
Efficiency (%) |
80 |
|
Power (KVA/KW) |
62.5/50 |
Protection class |
IP21 |
|
Insulation class |
F |
Steady-state voltage adjustment |
rate is better than ±1% |
|
No-load voltage adjustment range |
≥±5% |
Voltage control mode |
AVR |
