Our company focuses on construction machinery and energy equipment, with a wide range of machinery suitable for various scenarios.

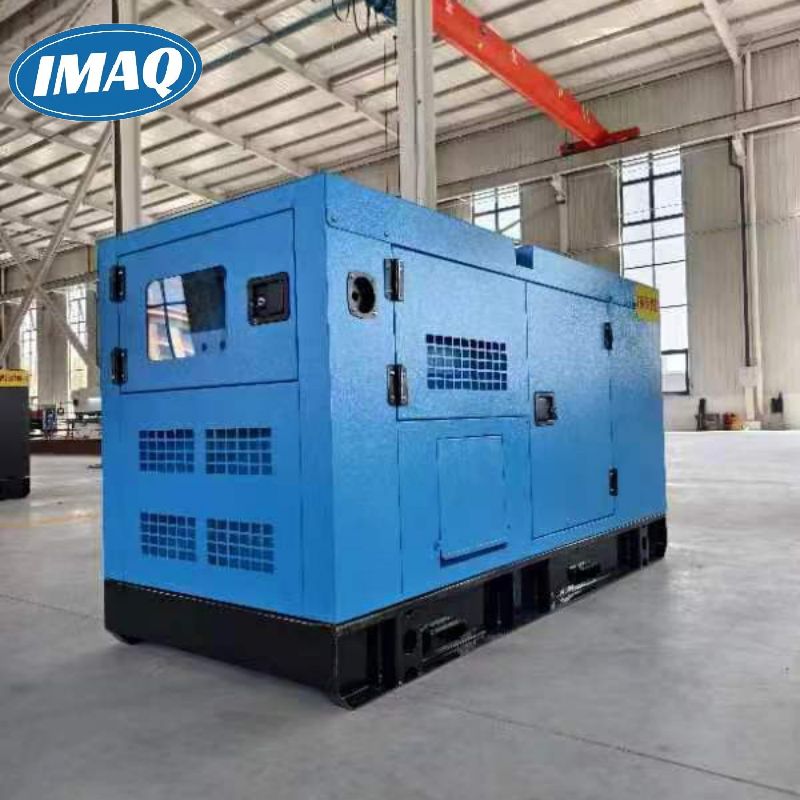

50kw diesel generator is a kind of power generation equipment that uses diesel as fuel, generates mechanical energy through diesel engine, and then converts mechanical energy into electrical energy through generator.
A diesel engine unit is an internal combustion engine that uses diesel as fuel and converts the heat energy released by fuel combustion into electrical energy or mechanical energy. Its generator function has high-precision detection of mains power signals and reliable automatic start/stop function of the generator set; real-time monitoring of the operating status of the generator set to protect the reliable operation of the diesel generator set.
Weichai 50kw diesel generator set uses Weichai engine. As the strength manufacturer of Weichai 50kw diesel generator set, Weichai diesel generator set and Weichai Marine diesel generator set are produced, which have the characteristics of low fuel consumption, high reliability, long life and high torque.
|
Diesel power generator set data |
|||
|
model |
50GF |
Unit power (KVA / KW) |
62.5/50 |
|
output voltage (V) |
400/230 |
Rated output current (A) |
90 |
|
mode of connection |
Three phase four line |
power factor |
0.8 (Lag) |
|
starting mode |
24V DC start |
frequency (Hz) |
50 |
|
Unit Weight (kg) |
900 |
Unit size (length, width and height) |
1800×750×1300mm |
|
Diesel engine data |
|||
|
manufacturer |
Weichai Rui Power |
model |
WP4.1D66E200 |
|
Rated rotation speed (Rpm) |
1500 |
Maximum engine power (KW) |
66 |
|
number of cylinders |
4 |
Cylinder arrangement |
in-line arrangement |
|
Cylinder diameter stroke (mm) |
105×118 |
discharge rate (L) |
4.087 |
|
Intake mode |
turbocharging |
reduction ratio |
17.5：1 |
|
fuel oil |
China 0 # light diesel oil |
100% load fuel consumption (G / KW.h） |
258 |
|
lubricating oil specification |
15W/40CD |
Lubricating oil consumption (L/h) |
And 0.5% fuel consumption |
|
starting mode |
Electric start |
Oil capacity (L) |
13 |
|
Engine cooling mode |
Meet the ambient temperature of 40℃ radiator, belt-driven cooling fan, with fan safety cover |
||
|
Generator data |
|||
|
manufacturer |
Dongsheng motor |
model |
DLS-50 |
|
Power (KVA / KW) |
62.5/50 |
levels of protection |
IP23 |
|
insulation grade |
H |
Steady-state voltage adjustment rate |
Better than ± 1% |
|
No-load voltage adjustment range |
≥±5% |
Voltage control mode |
AVR |
|
productiveness (%) |
80 |
||
