Product Description

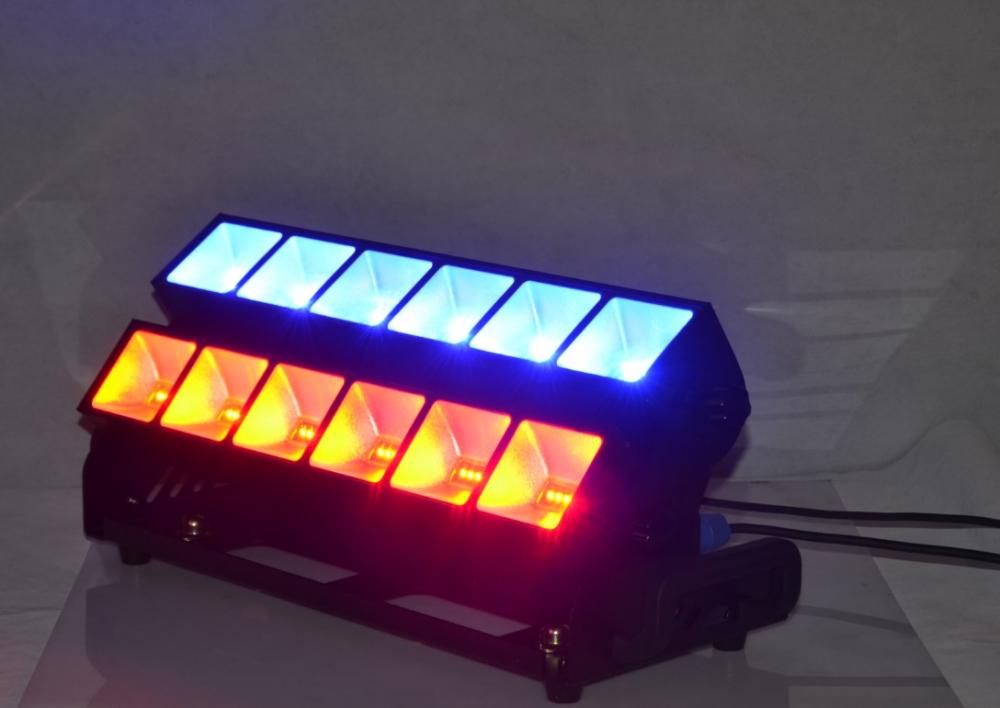

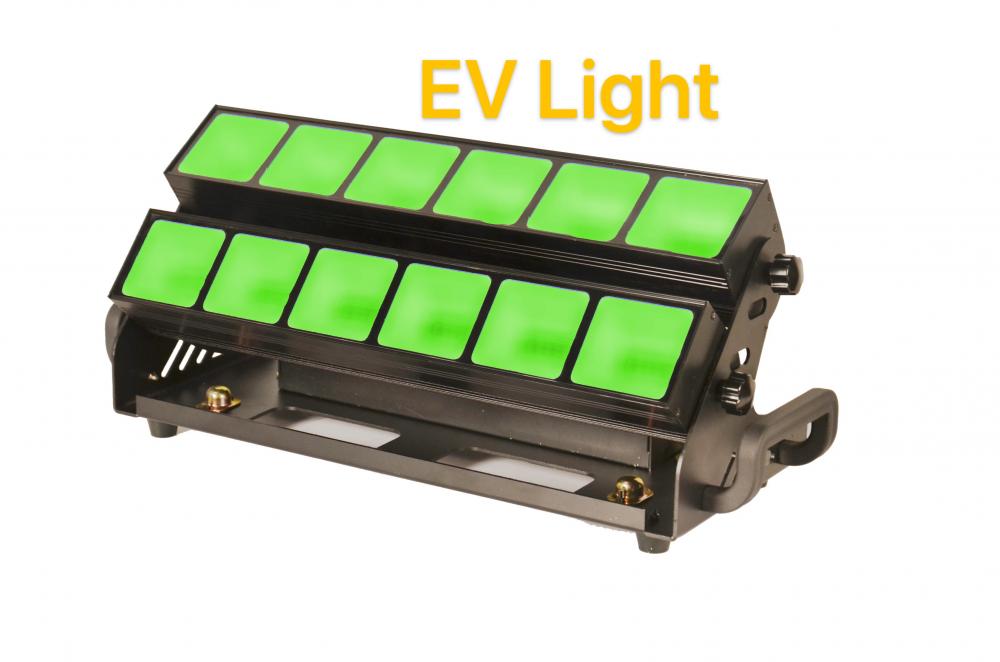

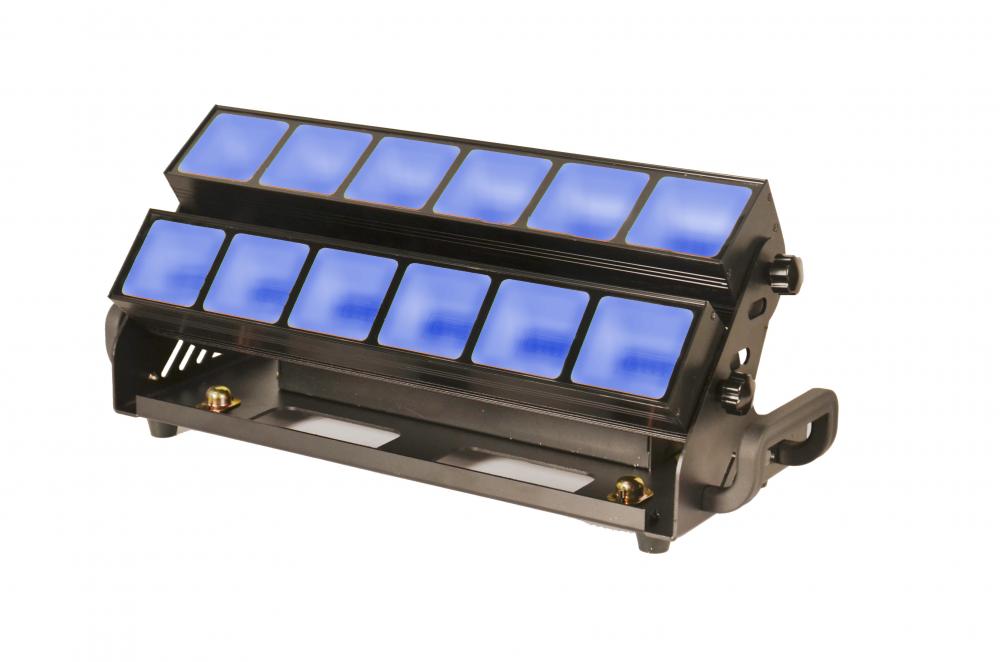

EV S400 is one kind of Cyclorama Wash Effect Light , specially used in theather performance . The upper and lower sections of the equipment can control each color separately. Each color is excessively gradual and smooth, and the color mixing is uniform and rich. Different color changes can be realized for the upper and lower parts of the rendered sky curtain.

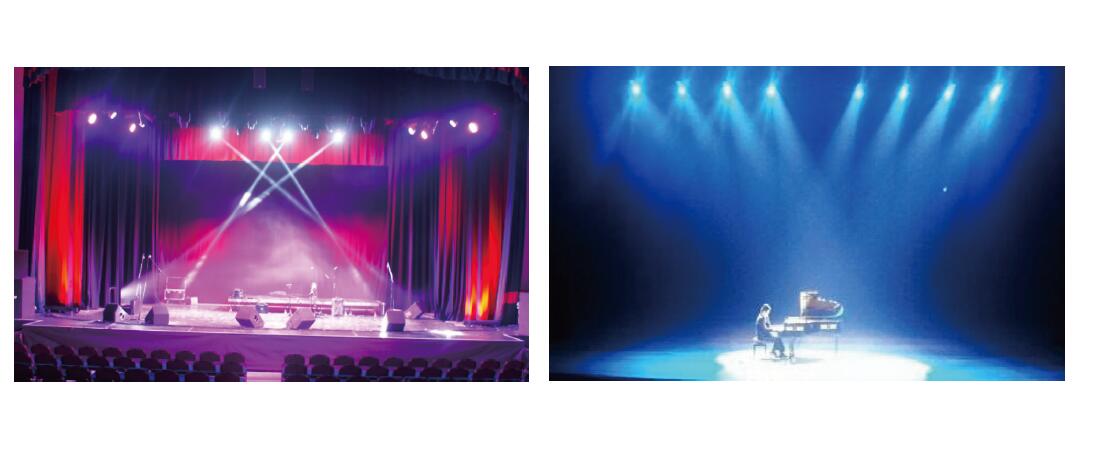

According to the characteristics of the theater sky curtain, the asymmetric optical rendering giant curtain is adopted, and the lighting requirements of the theater are met through the mutual cooperation of the upper and lower rows of light . The precise PWM dimming of this theater light  perfectly replace the traditional lighting dimming.

Specification

Light source: 36x10W  RGBW  4 in 1 LED

Input voltage : 100-240 V, 50/60 Hz
Consumption: 360W/220V
Strobe: 0-30 HZ
Dimming mode: 16-bits dimming

Power connections: Seetronic / Neutrik (optional)
Data connections: 3-pin and 5-pin XLR DMX

Control
Protocol: DMX512
DMX Channels: 6/8/12
Built-in programs: Yes
Display: LCD display
Material: Aluminum diecast + Plastic

Cooling: convection
Max. Amblent: 40°C
Min. Amblent: -20°C
Max. Housing: 50°C

Physical

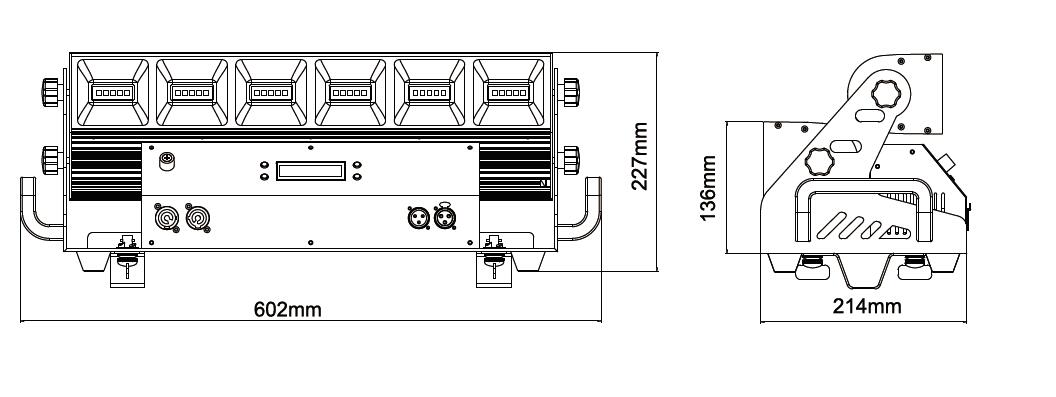

Dimensions: 602x214x227mm
Weight: 9.2 KG

Options
Power Cord: seetronic/Neutrik(optional) powerCon
Hanging device: optional
