Special tricycle with scale
12 month ago

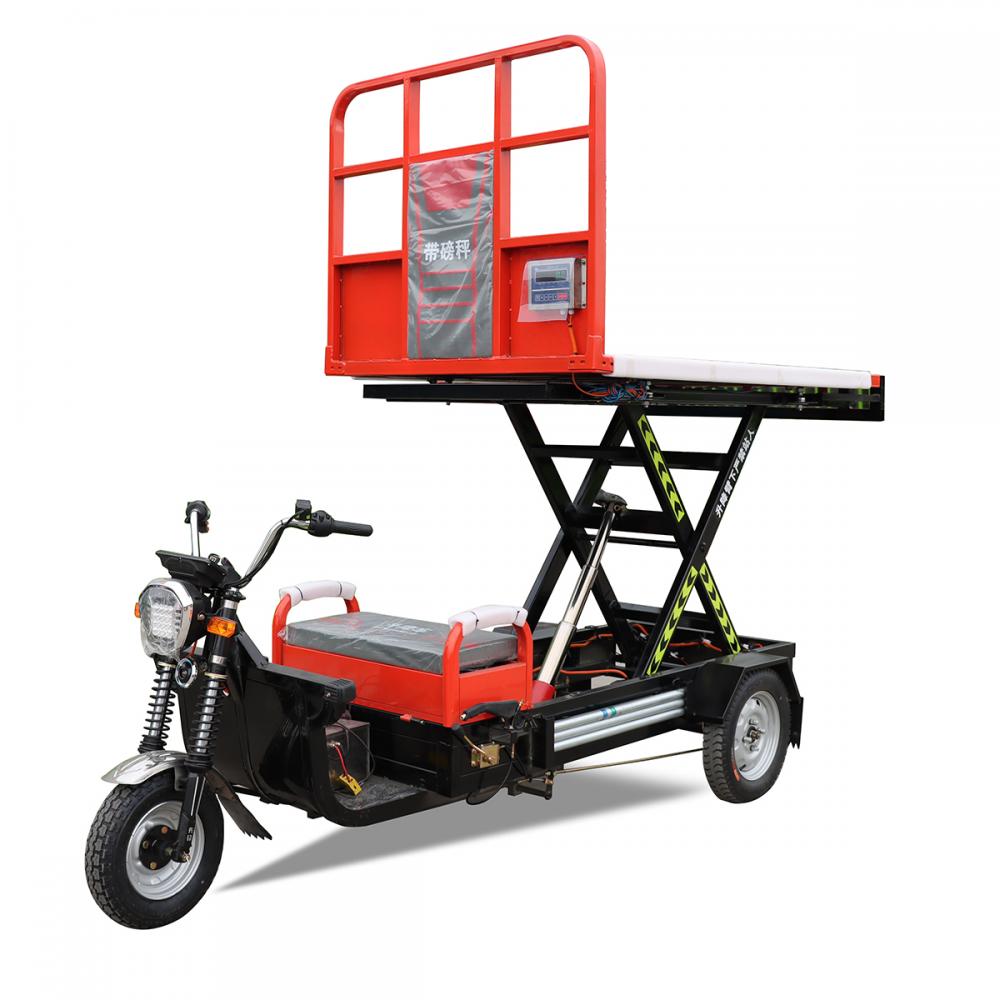

Weighted electric lifting tricycle
This electric passenger tricycle is different from other traditional tricycles. The Electric Cargo Tricycle can be controlled for smooth lifting and lowering through buttons, and is equipped with an electronic scale, which is most suitable for short distance cargo handling and weight calculation. Energy saving solar charging greatly reduces physical labor. Household Transportation Vehicle has a high cost performance ratio and is a good helper for the transfer of fruits and vegetables in rural areas. It is also the best choice for the transportation of goods in agricultural markets.
Specification
| Part name | order number | project | Parameter values / specifications |
| carload | 1 | Appearance image | Model 1800 lift |
| 2 | front fork | φ 37 with an outer spring | |
| 3 | load capacity | Load load of 400kg | |
| 4 | maximum speed | ≤26km/h | |
| 5 | Reverse speed | ≤12 km/h | |
| 6 | Continuation mileage | 40km | |
| 7 | Climbing degree | ≤15% | |
| 8 | weight | 420kg | |
| 9 | outline dimension | 3390*1200*1700mm | |
| 10 | tread | 1860mm | |
| 11 | wheel base | 2320mm | |
| 12 | Battery position | Rack battery frame | |
| 13 | brake mode | Drum brake | |
| 14 | Tyre model | Front 400 – 10 rear 400 – 12 | |
| railway carriage | 1 | material quality | 1.5mm thick willow leaf flower plate |
| 2 | size | 1800*1200mm | |
| 3 | Open the door direction | No door | |
| 4 | Lift height | Up to 1,500 mm away from the ground | |
| storage battery | 1 | Battery type | Lead acid maintenance-free, super power \ day can |
| 2 | battery capacity | 45-58AH | |
| 3 | cell voltage | 60V | |
| any power-generating or power-driven machine | 1 | output power | 1,500 W |
| 2 | Motor voltage | 60V | |
| controller | 1 | Specification requirements | 24 tube |
| 2 | rated voltage | 60V | |
| rear axle | 1 | gear-box | Big six teeth |
| 2 | Brake pot | Type 180 | |
| hydraulic ram | 1 | model | The 1200W hydraulic power train |
| 2 | Hydraulic oil top | 3 Fuel saving top | |
| carriage | 1 | Single scissors support frame | |
| electronic balance | 1 | Electronic scale small screen LCD electronic scale YF528 4 tons | |
| carriage | 1 | Single scissors support frame | |
| electronic balance | 1 | Electronic scale small screen LCD electronic scale YF528 4 tons | |
