Cargo and passenger electric tricycle LB-cp1
12 month ago
Fashionable Semi-enclosed Electric Tricycle

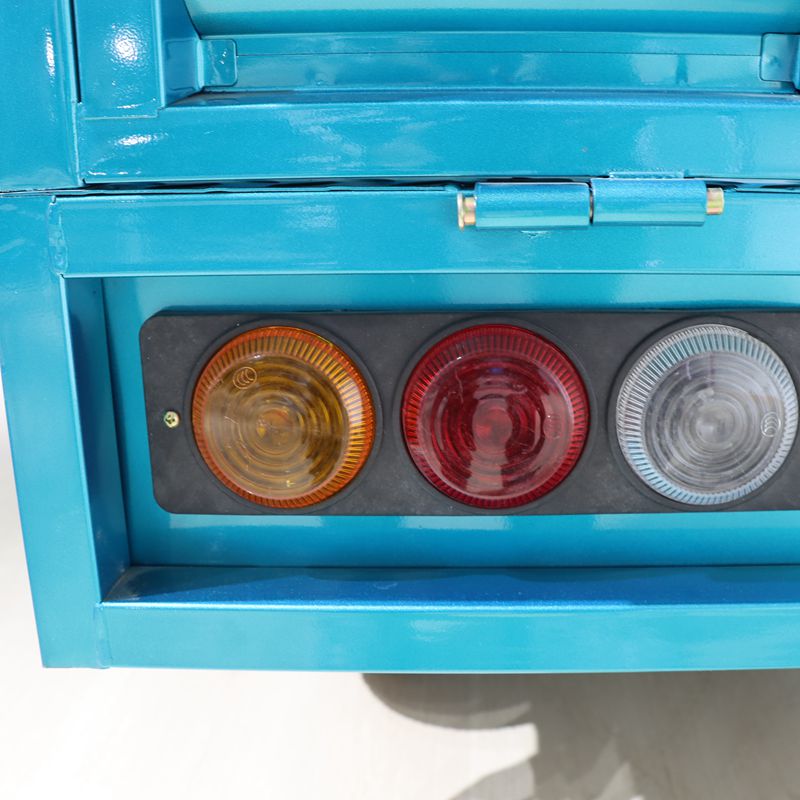

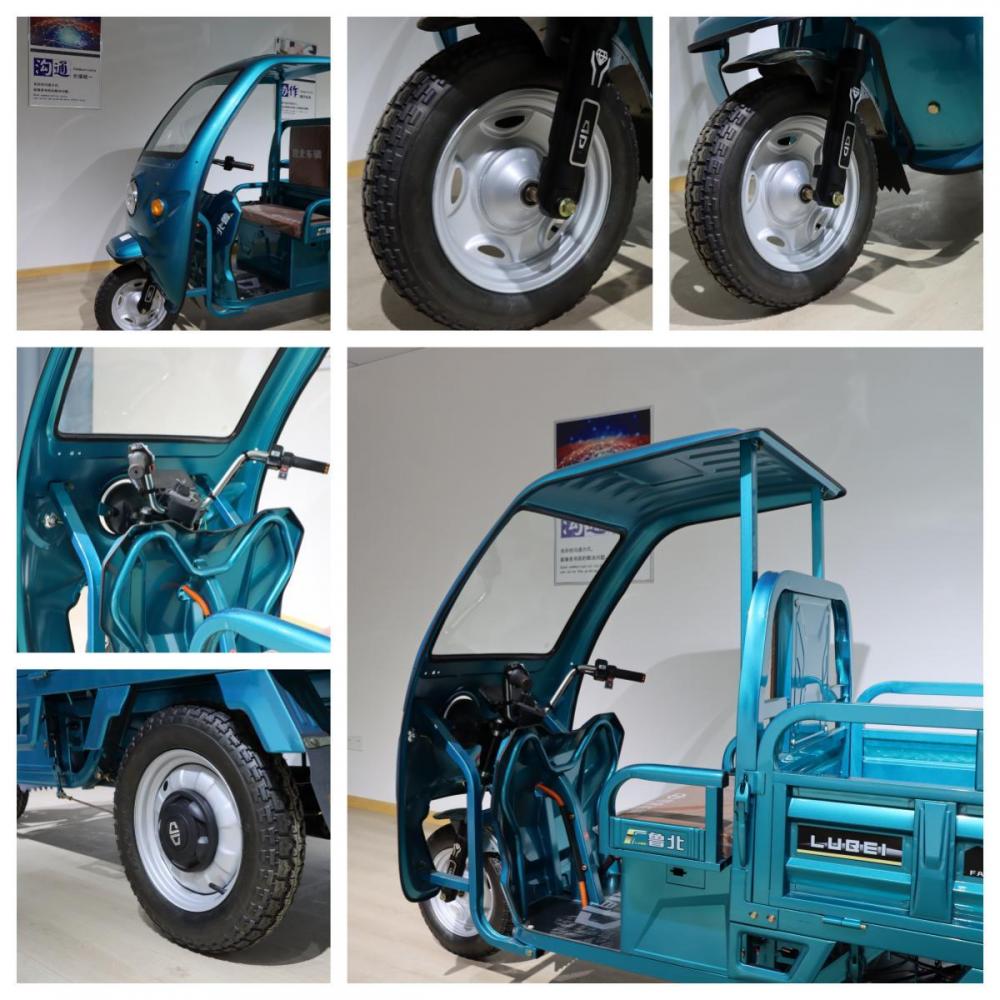

The Electric Cargo Tricycle is equipped with LED highlights and high light sources, allowing you to see clearly at night and ride smoothly. The Electric Passenger Tricycle adopts a thickened and thick tire design, which has strong grip on deep grooves, making the vehicle more anti slip and wear-resistant. The high-definition instrument display screen on the handlebar is clear at a glance, with an exquisite square design and clear driving information, allowing for easy access to driving information at any time. The Household Transportation Vehicle is equipped with a spacious interior with a large field of view in the passenger seat, and multifunctional operation functions, making it easy for even the elderly to get started.
Specification
| Finished vehicle body | 1 | Whole car | Technical parameters of electric tricycle |
| 2 | Climb slope | ≤35° | |
| 3 | Height off ground | ≤200mm | |
| 4 | Bearing weight | ≥500kg | |
| 5 | Wheel track | 900mm | |
| 6 | Wheel base | 2000mm | |
| 7 | Battery position | Frame battery box | |
| 8 | Boundary dimension | 2950*1008*1700mm | |
| 9 | Maximum speed | ≤26Km/h | |
| 10 | Astern speed | ≤12Km/h | |
| 11 | endurance mileage | ≥50Km/h | |
| 12 | Tyre type | Front:375-12 behind:400-12 | |
| 13 | configuration | integrated 160 gear shifting，43 shock absorption，four beam， drum brake | |
| Carriage | 1 | material | 1.1mm iron plate electrophoretic baking paint |
| 2 | Carriage size | 1500*910mm | |
| Rechargeable battery | 1 | Battery type | maintenance-free |
| 2 | Battery capacity | Selective configuration | |
| 3 | Battery voltage | 60V | |
| motor | 1 | Output power | 1000W |
| 2 | Motor voltage | 60V | |
| controller | 1 | Specification requirements | 18 tubes double row |
| 2 | Rated voltage | 60V | |
| Rearview mirror | 1 | type | specific |
| Hydraulic jack | 1 | type | Hydraulic jack |
