DIN85 Slotted Pan Head Machine Screws

12 month ago

27 0 

Kunshan Liyue Hardware Products Co.,Ltd

2 year

Product details

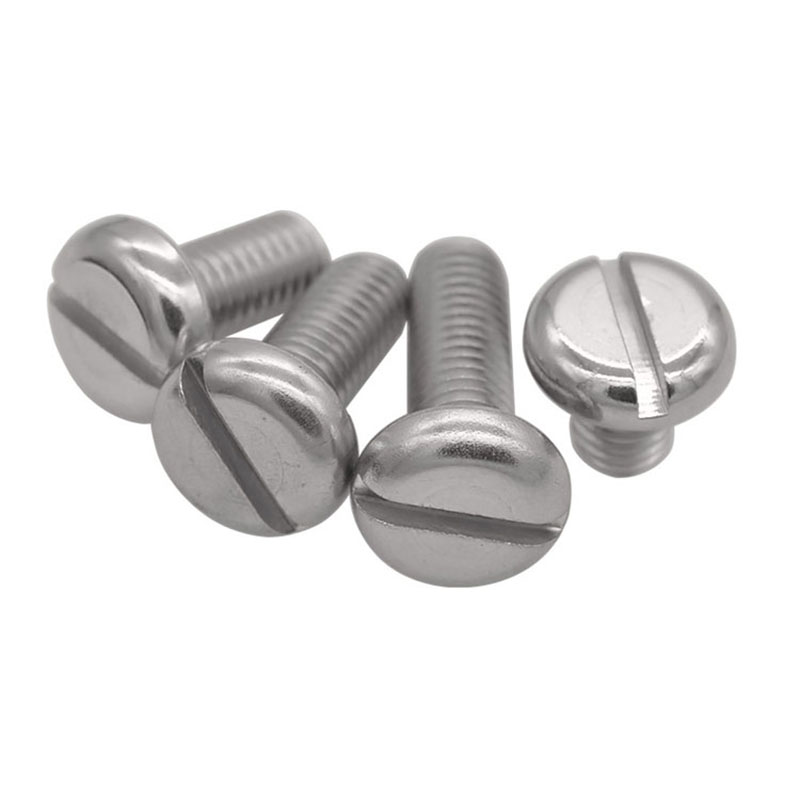

DIN85 Stainless Steel Slotted Pan Head Machine Screws

Surface treatment：

Plain, Black /Blue /Color Zinc,Chrome Plated,Black /White Nickel,Bronze Color

Material：

stainless steel, carbon steel, aluminium, iron, brass, copper, according to your request

Head Style：

Flat, Round, Pan, Truss, Bind, Oval, Brazier, Button, Fillister, Pan Washer, Indened Hexagon Washer

Grade：

4.8/5.8/6.8/8.8/10.9/12.9/A2-70/A4-70

Standard:

DIN, GB,ISO,JIS,ANSI,Non-standard

Size:

m3-m12 ,#6-#10, or as your requirement

Length:

10mm-105mm, OEM as your requirement

Sample:

If we have stock, we can provide free samples, but buyers need to pay for shipping

Delivery:

5-20days

Packing:

PE/PP Bag+carton.0r OEM as your requirement

d	P	dk		k		n		t
d	P	max	min	max	min	max	min	min
M1.6	0.35	3.2	2.9	1	0.86	0.6	0.46	0.35
M2	0.4	4	3.7	1.3	1.16	0.7	0.56	0.5
M2.5	0.45	5	4.7	1.5	1.36	0.8	0.66	0.6
M3	0.5	5.6	5.3	1.8	1.66	1	0.86	0.7
M3.5	0.6	7	6.64	2.1	1.96	1.2	1.06	0.8
M4	0.7	8	7.64	2.4	2.26	1.51	1.26	1
M5	0.8	9.5	9.14	3	2.86	1.51	1.26	1.2
M6	1	12	11.57	3.6	3.3	1.91	1.66	1.4
M8	1.25	16	15.57	4.8	4.5	2.31	2.06	1.9
M10	1.5	20	19.48	6	5.7	2.81	2.56	2.4

Product Name	DIN85 Stainless Steel Slotted Pan Head Machine Screws
Shank Diameter	M1-M20 /According To Your Requirement
Material	Stainless steel,Brass, Copper, Carbon steel,Aluminum,alloy ,zinc etc./According To Your Requirement
Head Style	Hex head/Countersunk head/Pan head/Wafer Head/Bugle Head etc
Thread	Fine Thread Or Coarse Thread or Hi-Lo Thread / M3 to M30, OEM according to your request
Length	5mm to 100mm etc, OEM according to your request
Surface Finishing	Anodizing, Polishing, Powder coating, Passivation, Sandblasting, Nickal plating, Zinc plating, Chrome plating, Heat treatment,Oxidation ,as per customer's requirement
Production Equipment	CNC punching machines, CNC milling machines, CNC turning machines,CNC machining center, Automatic lathes, Linear cutting, Grinding machine etc.
Delivery time	10-15 working days as usual,It will based on the detailed order quantity
After-sales Service	We will follow up every customer and solve all your problems satisfied after sales
QC	1.Incoming material will be checked carefully before production. 2.Strict processing quality control 3.100% inspection before shipment.
OEM/ODM	Available
