M300R Pile driver

12 month ago

14 0 

KingKong, Intelligent Equipment (Xuzhou) Co., Ltd

2 year

Product details

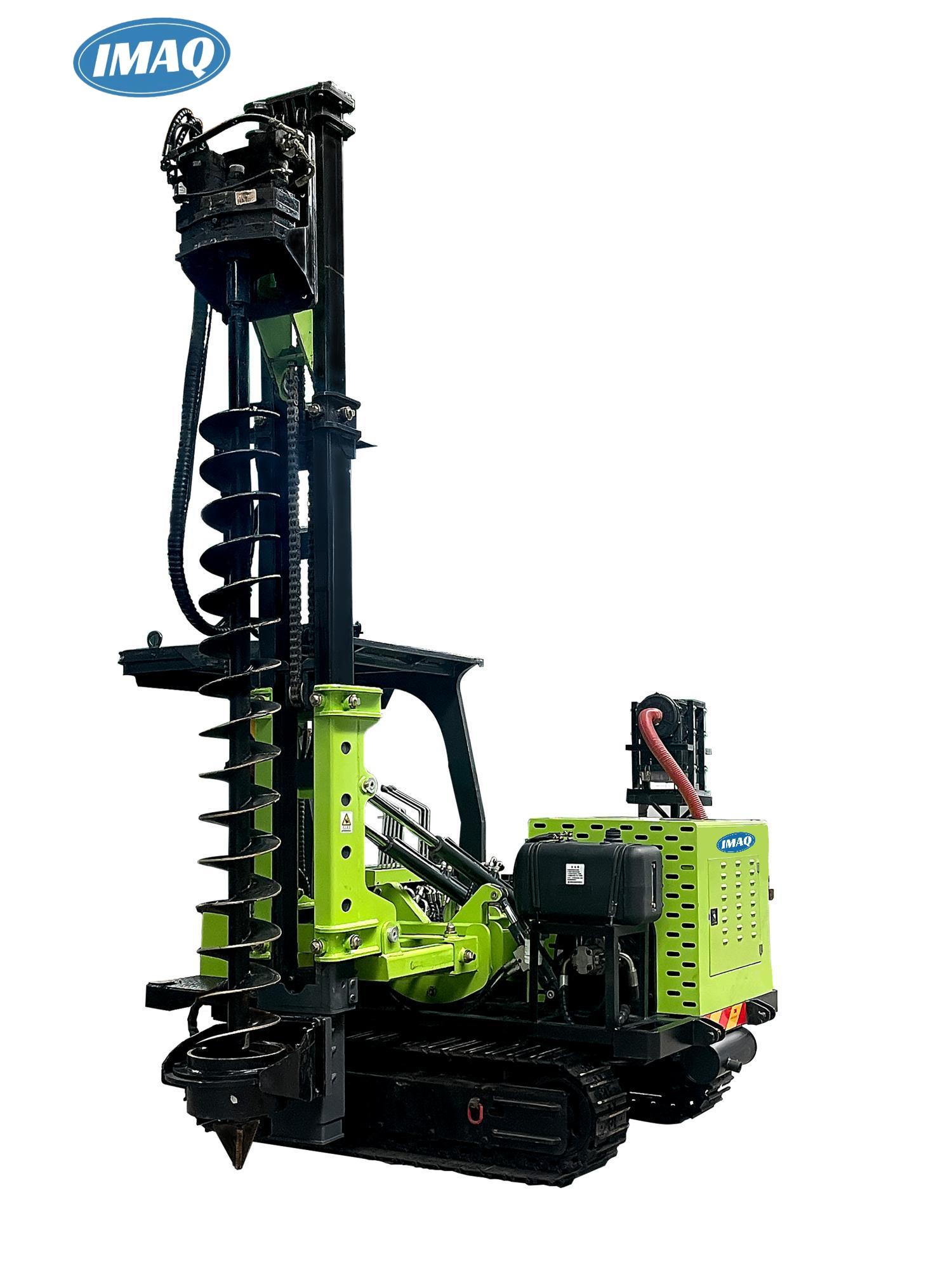

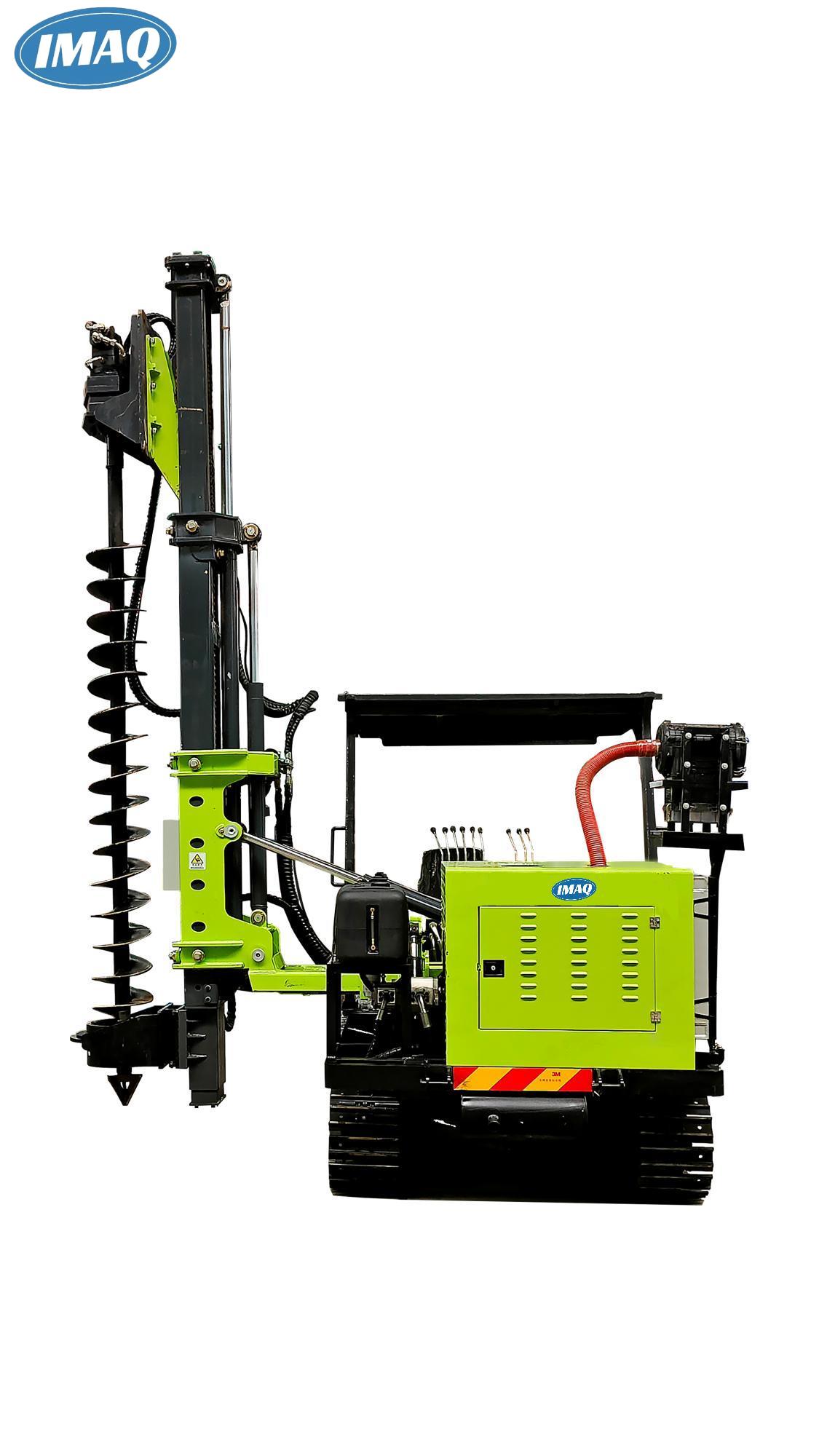

Solar Pile Driver IM539

Product Description

This drilling rig is mainly used for piling anchor, water wells, photovoltaic solar spiral pile, DTH blasting construction, etc.

	The solar industry is constantly evolving, so quality equipment is needed to keep up with the fast pace of solar farm installation operations. IMAQ offers a range of pile drivers designed to meet the requirements of commercial solar contractors and their vast solar farms. The IMAQ pile driver product line includes remotely controlled machines that move efficiently from one pile to the next and from one row to the next.

Products Parameter

Item	Value	Units
Rotarymotortorque(augerdril)	5000	N·m
Postlength(Max)	6000	mm
Grondscrewlength(Max)	6000	mm
Drilingdepth	6000	mm
Grondscrewpilingdepth	6000	mm
Drilingdiameter(augerdriling)	0-600	mm
Drilingangle(left/right)	-20	°
Drilingangle(forwards/backwards)	0-100	°
Hydraulicsystempressure	18	Mpa
Totalhydraulicsystemflow	120	L/min
Rotarymotorflow	60-100	L/min
Walkingspeed	00-3	km/h
Chassisspec(LWH)	24001900520	mm
WidthofsteelchassisTrack	400	mm
Trackheightabovetheground	230	mm
Gradeability	<30	°
Tracktumrate	01:21.4
Trackingworkingpressuredifference	13	Mpa
PlatformrotationAngle	360	°
Doublepump+doublevalvevalve	63+20
Maximumvolumeofthehydraulicfueltank	105	L
Maximumvolumeofthedieseltank	85	L
Hamhammerdriveoilvolume	60-100	L/min
Hydraulichammerdrivestheoilpressure	140-170	kg/cm²
Hydraulichammerstrikefrequency	400-750	bpm
Hydraulichammerweight	260	kg

Advantages

1.All stuctural parts reinfoced for various work conditions.

2. The roration unit driven by cycloid motor for more compact structure and low failure rate. Torque improved for larger hole range drilling and widely used for foundation bolting and anchoring, casing and large hole spiral drilling.

3. New enclosure design for better appearance and converient for maintenance and serice.

4. Optional dry dust collector for dust free diling .more environment fiendly and energy saving.

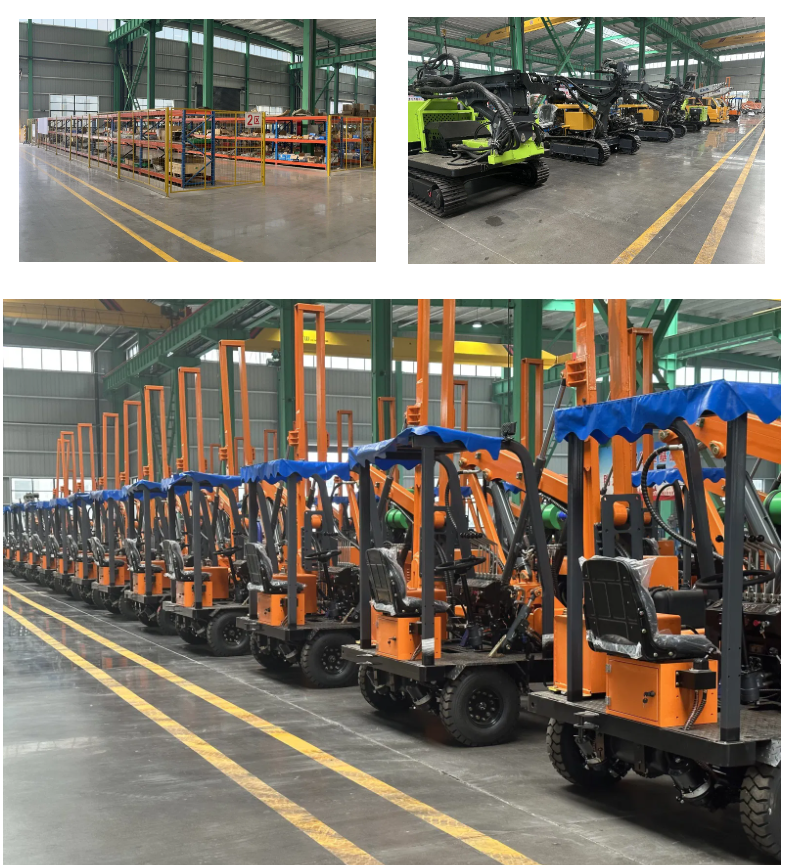

Factory overview
