High Hardness Hard Rock Ripper
12 month ago
Ripper Tooth
Excavator Ripper Tooth

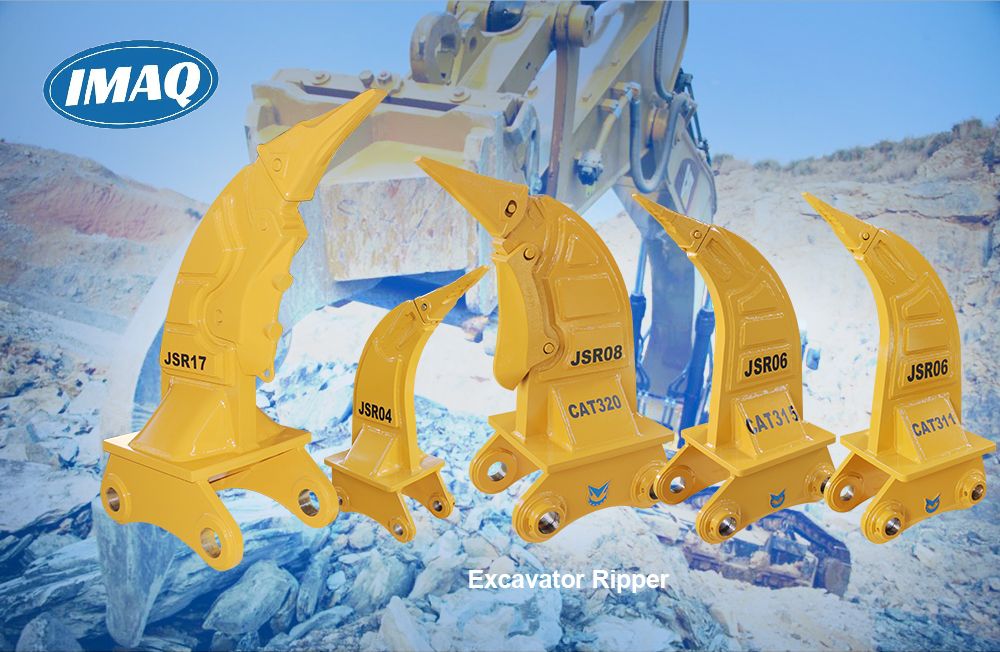

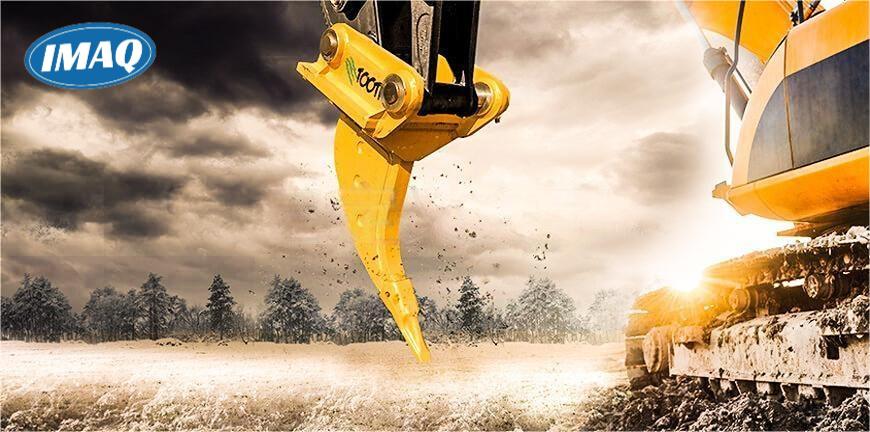

IMAQ excavator ripper tooth attachment is purpose built to tear through frozen and hardpacked surfaces. The sharp and pointed tip maximizes penetration depth while the reinforced edge rips through tough root systems and loosens soil for further excavation. The standard quick-coupling design lets operators quickly switch out attachments.The cut force is not bigger than single type ripper,but the work range is bigger and efficient Use for loose break stones and hard soil.
Performance:
The cut force is not bigger than single ripper, but the work range is biggerand efficient.
Applications:
Use for loose break stones and hard soil.
| Item/Model | Unit | PAR02 | PAR04 | PAR06 | PAR08 | PAR10 | PAR14 | PAR17 | PAR20 | PAR24 |
| Suitable Excavator | ton | .4-6 | .5-9 | .9-16 | 16-23 | 23-30 | 30-39 | 40-49 | 20-64 | 65-90 |
| Pin to Pin Distance | mm | 265 | 310 | 390 | 465 | 520 | 570 | customize | customize | customize |
| Overall Width | mm | 375 | 420 | 570 | 665 | 740 | 820 | 820 | customize | customize |
| Overall Height | mm | 390 | 950 | 1180 | 1260 | 1380 | 1470 | 1520 | 1660 | 1800 |
| Pin Diameter | mm | 40-50 | 50-55 | 60-70 | 70-80 | 80-90 | 80-90 | 90-110 | customize | customize |
| Dipper Width | mm | 150-180 | 180-200 | 200-315 | 300-350 | 360-420 | 360-4220 | 400-500 | customize | customize |
| Plate Thickness | mm | 50 | 55 | 65 | 80 | 90 | 90 | 90 | 120 | 180 |
| Teeth Model | type | DH55 | DH150 | DH220 | D85C | 4T5502-2 | 4T5502-2 | 4T5502-2 | PC700 | PC1000 |
| Weight | kg | 60 | 160 | 245 | 420 | 620 | 775 | 825 | customize | customize |
