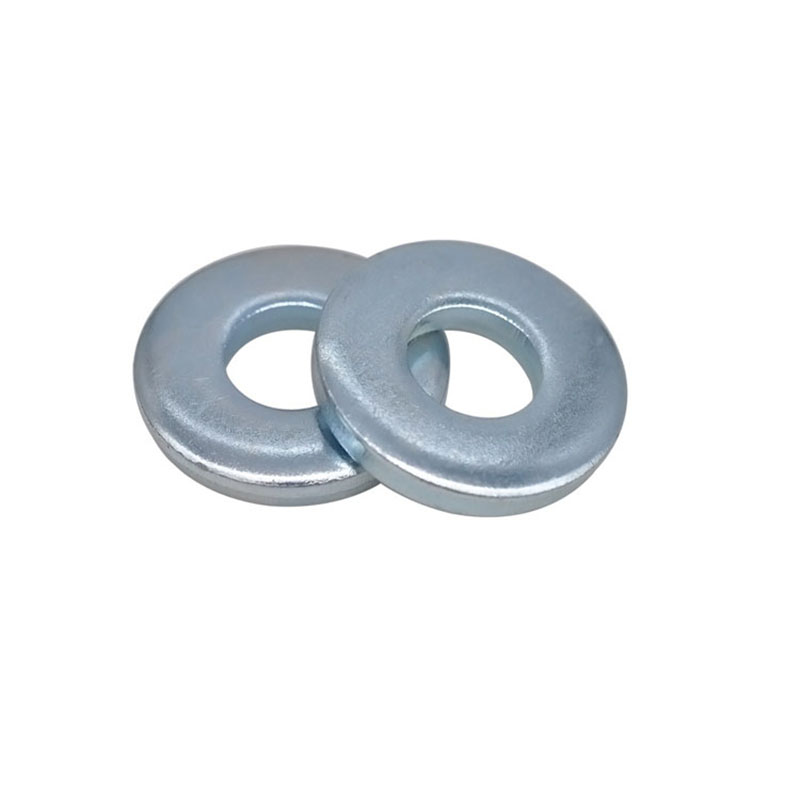

Heavy-Duty Flat Washer DIN7349 Thick Washer
12 month ago
Heavy-Duty Flat Washer DIN7349 Thick Washer
Surface treatment：Plain, Black /Blue /Color Zinc,Chrome Plated,Black /White Nickel,Bronze Color
Material：
stainless steel, carbon steel, aluminium, iron, brass, copper, according to your request
Grade：
100HV/200HV/300HV/400HV
Standard:
DIN, GB,ISO,JIS,ANSI,Non-standard
Size:
m3-m24, or as your requirement
Sample:
If we have stock, we can provide free samples, but buyers need to pay for shipping
Delivery:
5-20days
Packing:
PE/PP Bag+carton or OEM as your requirement
| Size | d | dc | h | ||||
| max | min | max | min | Nom. | max | min | |
| 3 | 3.38 | 3.2 | 9 | 8.64 | 1 | 1.1 | 0.9 |
| 4 | 4.48 | 4.3 | 12 | 11.57 | 1.6 | 1.8 | 1.4 |
| 5 | 5.48 | 5.3 | 15 | 14.57 | 2 | 2.2 | 1.8 |
| 6 | 6.62 | 6.4 | 17 | 16.57 | 3 | 3.3 | 2.7 |
| 8 | 8.62 | 8.4 | 21 | 20.48 | 4 | 4.3 | 3.7 |
| 10 | 10.77 | 10.5 | 25 | 24.48 | 4 | 4.3 | 3.7 |
| 12 | 13.43 | 13 | 30 | 29.16 | 6 | 6.6 | 5.4 |
| 14 | 15.43 | 15 | 36 | 35 | 6 | 6.6 | 5.4 |
| 16 | 17.43 | 17 | 40 | 39 | 6 | 6.6 | 5.4 |
| 18 | 19.52 | 19 | 44 | 43 | 8 | 9 | 7 |
| 20 | 21.52 | 21 | 44 | 43 | 8 | 9 | 7 |
| 22 | 23.52 | 23 | 50 | 49 | 8 | 9 | 7 |
| 24 | 25.52 | 25 | 50 | 49 | 10 | 11 | 9 |
