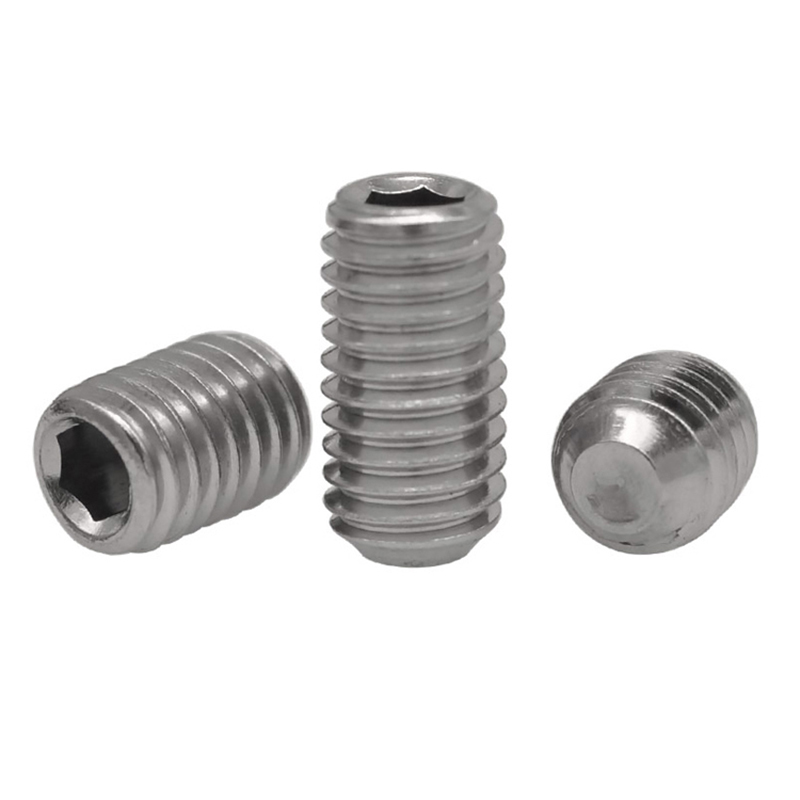

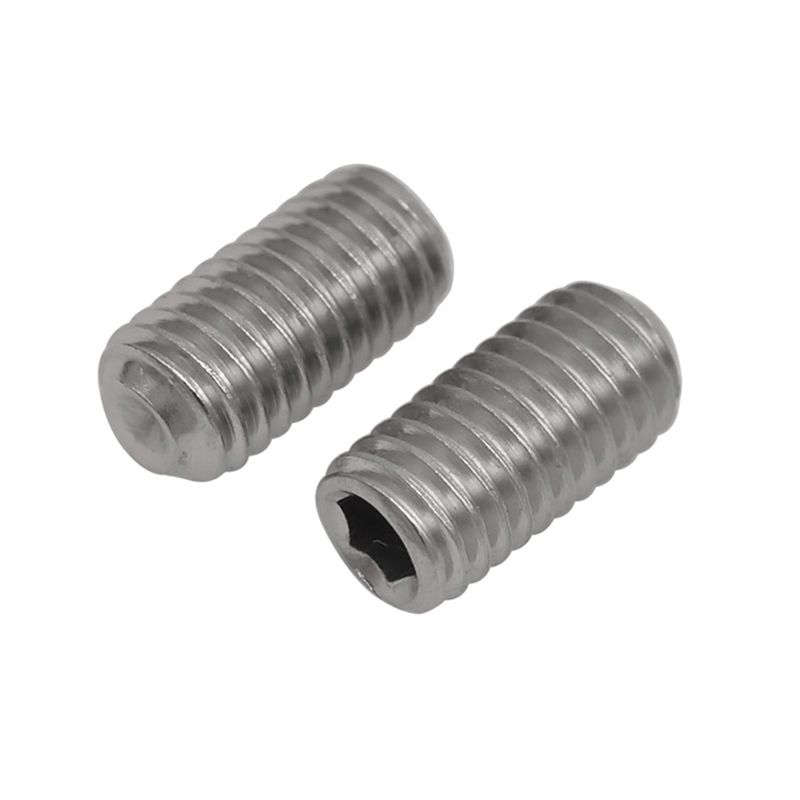

DIN916 Stainless Steel Hexagon Socket Set Screws With Cup Point
Product Name: With cup point hexagon socket set grub screw DIN916Material: Carbon Steel,Stainless Steel201/304/316,Brass,Aluminum Alloy,Aluminum,and Titanium Alloy, Alloy steel,Iron, etc
Color: Black Zinc-plated, Grey Phosphated Zinc,Yellow Zinc-plated
Diameter: M1.4-M16,according to customer requirements
Length: 2mm~100mm
Sample service: sample are all in free,if the samples we have in stock
Standard: AS,ANSI/ASME,BS,DIN,EN,GB,ISO,JIS,Non-standard
Used: Industrial/auto/Motorcycle/electronics/electric power/Toys/Sports goods/Machinery equipment etc.
Price terms: FOB,CIF,CFR,EXW,and others
Payment terms: T/T,L/C,Western Union,ect
Delivery method: by sea,by air or express service
Market: South&North America/Europe/Southeast Asia/Australia and ect
| d | P | s | t | ||
| nom | max | min | min | ||
| M1.4 | 0.3 | 0.7 | 0.724 | 0.711 | 0.6 |
| M1.6 | 0.35 | 0.7 | 0.724 | 0.711 | 0.7 |
| M2 | 0.4 | 0.9 | 0.902 | 0.889 | 0.8 |
| M2.5 | 0.45 | 1.3 | 1.295 | 1.27 | 1.2 |
| M3 | 0.5 | 1.5 | 1.545 | 1.52 | 1.2 |
| M4 | 0.7 | 2 | 2.045 | 2.02 | 1.5 |
| M5 | 0.8 | 2.5 | 2.56 | 2.52 | 2 |
| M6 | 1 | 3 | 3.08 | 3.02 | 2 |
| M8 | 1.25 | 4 | 4.085 | 4.02 | 3 |
| M10 | 1.5 | 5 | 5.095 | 5.02 | 4 |
| M12 | 1.75 | 6 | 6.095 | 6.02 | 4.8 |
| M14 | 2 | 6 | 6.095 | 6.02 | 5.6 |
| M16 | 2 | 8 | 8.115 | 8.025 | 6.4 |
