Stainless Steel GB869 Countersunk Head Rivets

12 month ago

31 0 

Kunshan Liyue Hardware Products Co.,Ltd

2 year

Product details

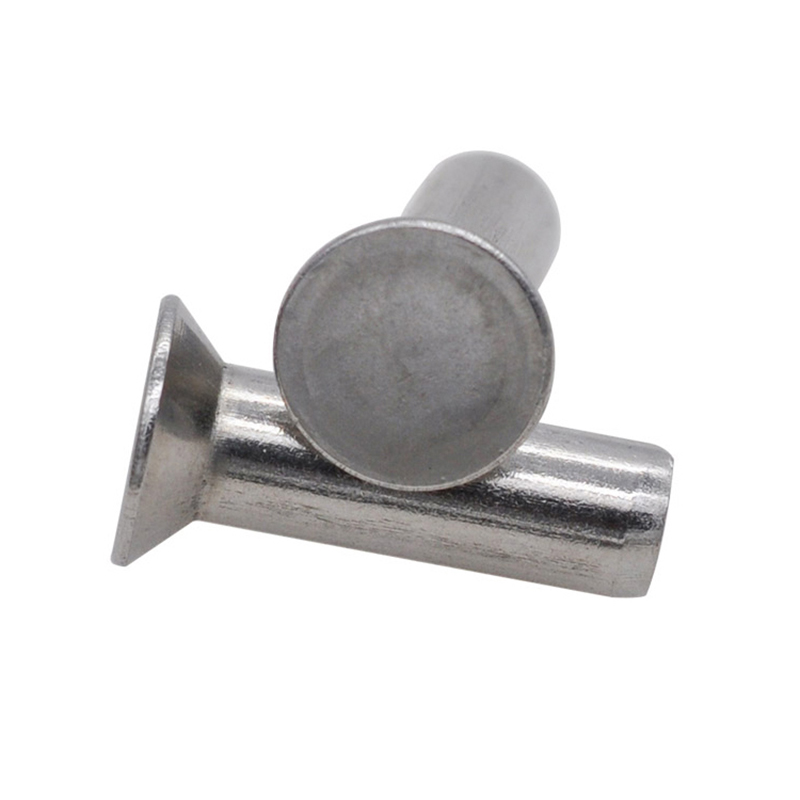

Stainless Steel GB869 Countersunk Head Rivets

Material:

aluminum

Metric diameter:

M2 (2mm) / M2.5 (2.5mm) / M3 (3mm) / M4 (4mm) / M5 (5mm) / M6(6mm)

Shank length:

3mm-50mm

d	nom	2	2.5	3	4	5	6
	max	2.06	2.56	3.06	4.08	5.08	6.08
	min	1.94	2.44	2.94	3.92	4.92	5.92
dk	max	4.05	4.75	5.35	7.18	8.98	10.62
dk	min	3.75	4.45	5.05	6.82	8.62	10.18
k ≈		1	1.1	1.2	1.6	2	2.4
a		90°

Product name	rivet
Surface Treatment	Zn-plating,Ni-plating,Cr-plating,Tin-plating,copper-plating, the wreath oxygen resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated, blue black zinc-plated, rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc.
Material	Aluminum, Copper, Iron, Stainless Steel, Aluminum Alloy, PD, APET, PVC, Plastic, SPCC, Hot/Cold Rolled Steel Plate /Steel Belt etc.
Packaging	Inner plastic bag, outer carton box, and we can also pack products According to your requirements.
Processing	stamping, punching, bending, welding, drilling, tapping, wire cutting, EDM, turning, cnc machining, cnc milling, spring, screw, assembling, etc.
Tolerance	+/-0.01mm or +/- 0.0004” or customized
Application	Automotive, instrument, electrical equipment, household appliances, furniture, mechanical equipment, daily living equipment, electronic sports equipment, light industry products, sanitation machinery, market/ hotel equipment supplies, artware etc.
Certification	ISO9001, RoHS, SGS etc.
