Spin Flash Dryer 01
11 month ago
SXG Spin flash dryers are windly applied into Food Industry, such as Starch, Cassava starch, Tapioca flour, Potato Flour, Corn Starch, Cassava Flour, Wheat Starch, vinasse, Waste yeast, rice husk, Cassava Garri, Spent Grain, Waste Soy Meal and Filter Cake Material etc. The performance of this spin flash dryer reaches international advanced level, with its high efficency, compact design, cheap price, our rotary flash dryer is warmly welcome by home and abroad users.
Features of Starch Drying Machine
1. SXG flash dryer of starch has a special cooling device at the bottom, thus effectively avoiding material deterioration due to high temperature.
2. Material fineness and final moisture content are adjustable.
3. Compared to other drying methods, starch flash dryer can greatly increase the proportion of materials
4. Reduced material residence time can effectively prevent the materials from sticking to walls of the drum, resulting in higher efficiency.

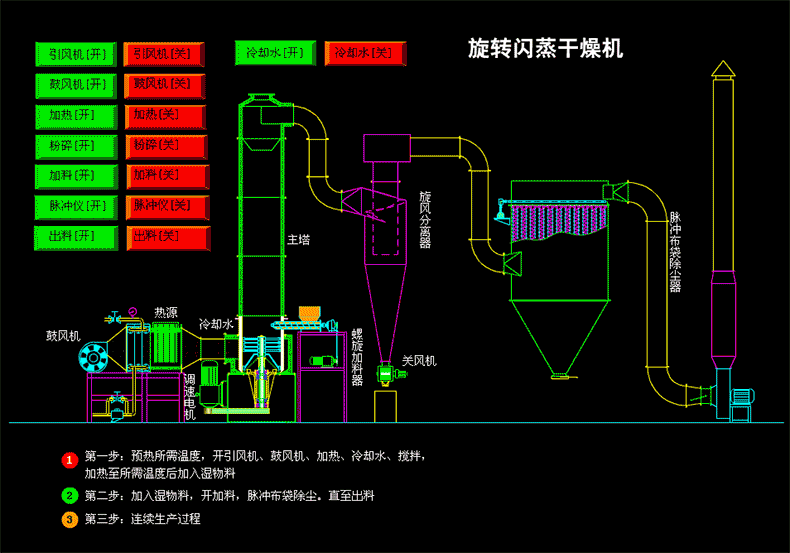

Working Principle of Potato Flour Drying Machine
The hot air enters the bottom of the rotary flash dryer in a tangential direction, and forms a powerful rotating wind field driven by the agitator. The material enters the dryer through the screw feeder. Under the strong action of the high-speed rotating stirring paddle, the material is dispersed by the impact, friction and shearing force. The bulk material is quickly crushed, fully contacted with the hot air, and heated to complete the drying . After dehydration, the dry material rises with the hot air flow, and the classification ring intercepts the large particles, and the small particles are discharged from the center of the ring to the rotary flash dryer, which is recovered by the cyclone separator and the dust collector. The wall is re-falled into the bottom of the dryer to be crushed and dried.
Technical Specifications of Starch Flash Dryer, Flash Drying Machine
|
Model |
Container diameter mm |
Main dimensions mm |
Power kw |
Air volume m3/h |
Water evaporation kg/h |
Floor space m2 |
|
SXG-2 |
200 |
300×2800 |
0.75 ~ 2.2 |
300 ~ 800 |
10 ~ 20 |
3.5×2.5 |
|
SXG-3 |
300 |
400×3300 |
3 ~ 4 |
600 ~ 1500 |
20 ~ 50 |
3.8×2.7 |
|
SXG-4 |
400 |
500×3500 |
4 ~ 7.5 |
1250 ~ 2500 |
25 ~ 70 |
4×3 |
|
SXG-5 |
500 |
600×4000 |
5.5 ~ 11 |
1500 ~ 4000 |
30 ~ 100 |
4.2×3.2 |
|
SXG-6 |
600 |
700×4200 |
7.5 ~ 18.5 |
2500 ~ 5000 |
40 ~ 200 |
4.25×3.25 |
|
SXG-8 |
800 |
900×4600 |
11 ~ 18.5 |
3000 ~ 8000 |
60 ~ 300 |
4.5×3.5 |
|
SXG-10 |
1000 |
1100×5000 |
15 ~ 30 |
5000 ~ 12500 |
100 ~ 480 |
4.75×3.75 |
|
SXG-12 |
1200 |
1300×5200 |
15 ~ 37 |
10000 ~ 20000 |
150 ~ 745 |
5×4 |
|
SXG-14 |
1400 |
1500×5400 |
30 ~ 55 |
14000 ~ 27000 |
200 ~ 960 |
5.25×4.25 |
|
SXG-16 |
1600 |
1700×6000 |
45 ~ 75 |
18700 ~ 36000 |
250 ~ 7303 |
5.5×4.5 |
Our Services
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer`s requirements.
After-sale service
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
