37m truck mounted concrete pump
11 month ago
Basic lnfo.

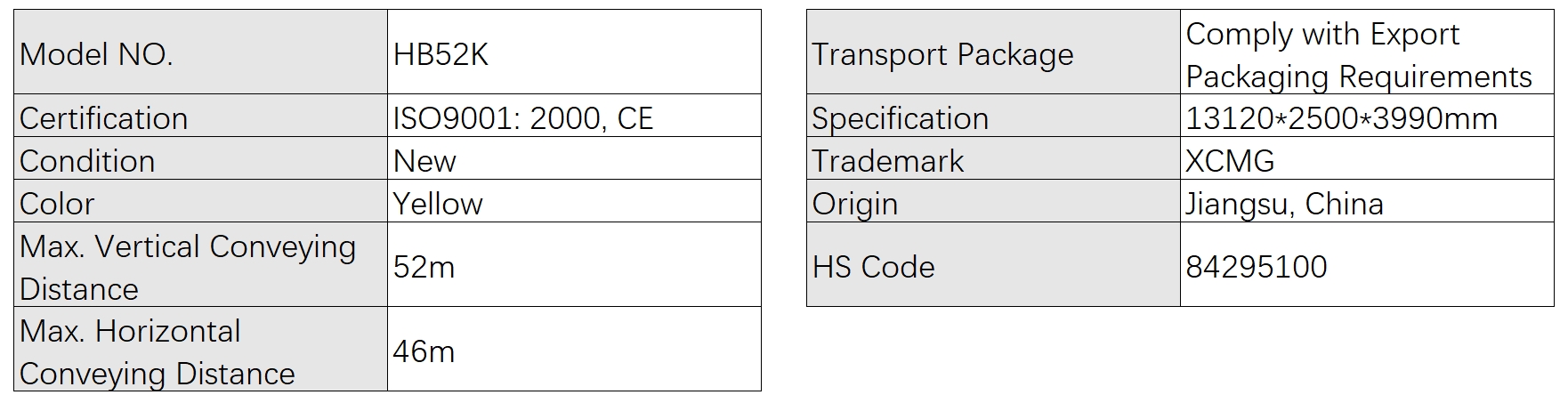

Product Description
1. Chassis

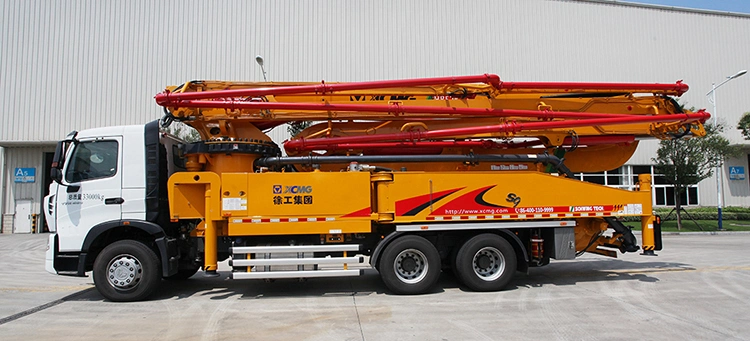

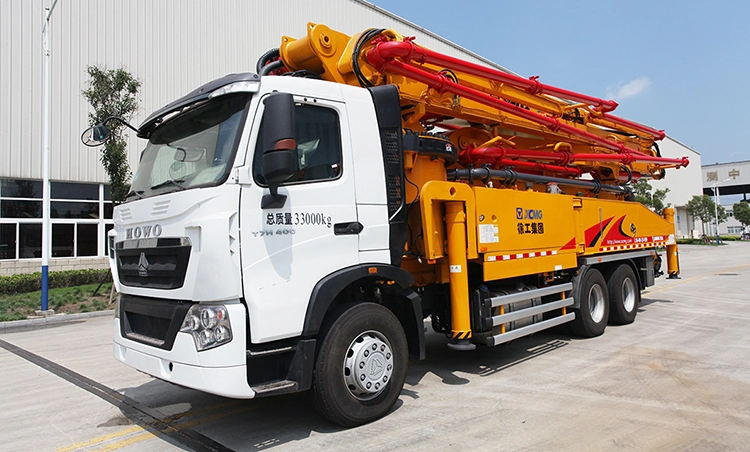

Truck mounted concrete pump HB52K truck-mounted concrete boom pump is equipped with original SINOTRUCK 3-axle chassis of Euro III emission standard. Designed according to heavy duty off-road chassis, concrete machinery applicable to complex road surface of construction sites.
2. Structural parts
2.1 Placing boom

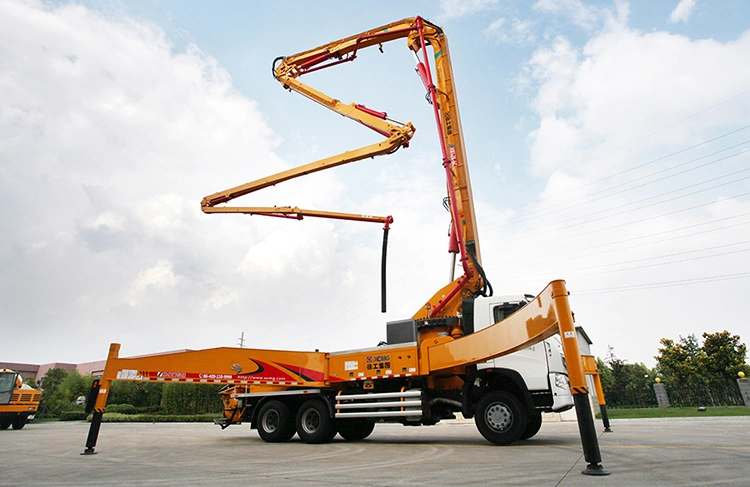

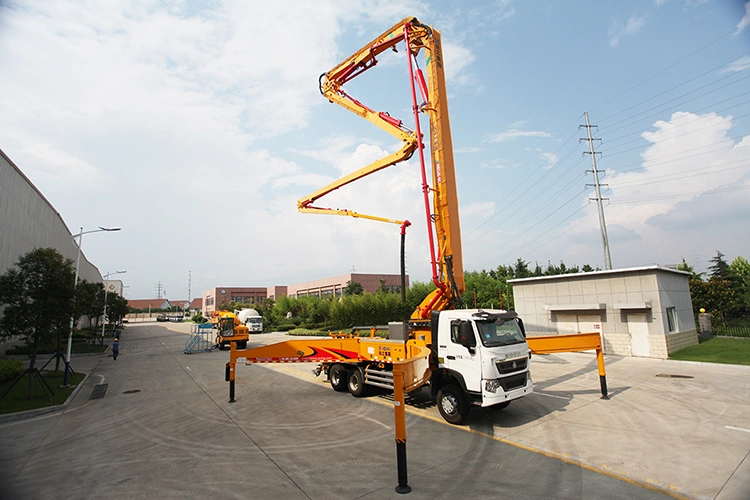

It adopts parameterized model building and computer simulation optimization for boom design, realizing lightweight and ensuring all positions that have force applied to in optimal state. The boom adopts external linkage structure for connection, with high stability, small vibration, simple structure and long service life. And it adopts RZ-type folding way, with boom structural layout compact, boom unfolding easily and placing range wide and flexible. Its placing height can reach 51.5m.
2.2 Turret

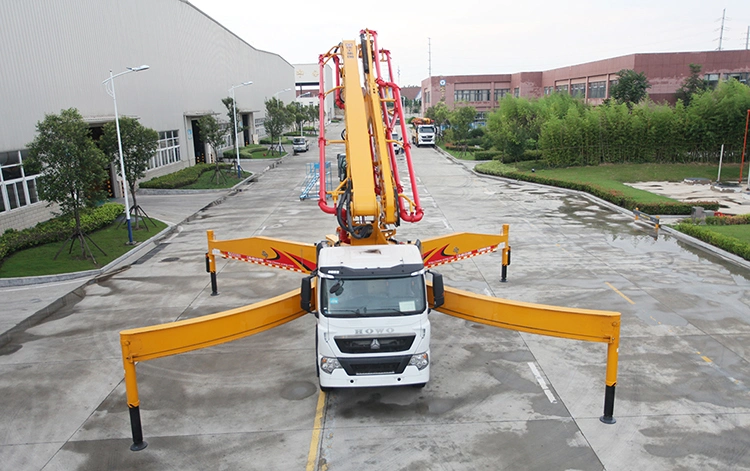

The base structure is board frame box-type structure, adopting high- strength structural steel, with the upper connected with slewing bearing and the rear connected with sub-frame; the front and rear outriggers and their swing cylinder are articulated on the base structure.
The front outriggers are Arc-type 1-level telescoping type, the rear ones swing type. The cross-section is box type reinforced structure.
The sub-frame rear section has catwalks, the middle is connected with core pump water tank and the rear with core pump hopper and upper/lower and left/right pedals; the car-body and sub-frame are connected through connecting pieces. The connecting pieces are welded with subframe and connected with car-body with high-strength bolts.
It is new-type mould pressing hopper, with pumping resistance small and suction efficiency high.
The passageway for concrete pumping is cast in high wear-resistance material. With the inner surface high-frequency quenched, it has a service life of 30,000m3.
