hydraulic pump parts
11 month ago

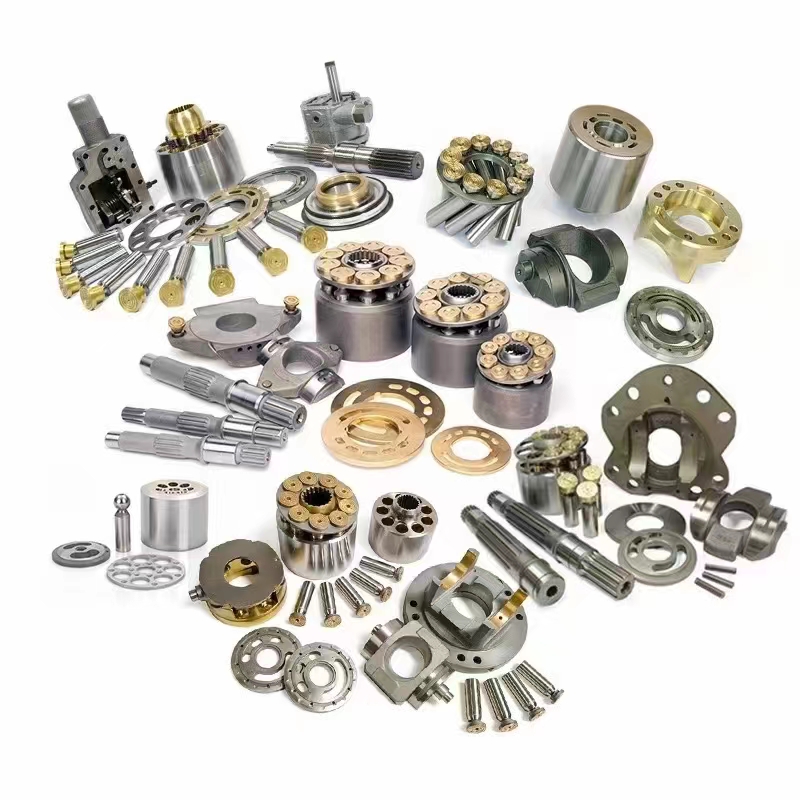

1. Cylinder Block: This is the main body of the pump where the pistons move back and forth.
2. Pistons: These are cylindrical components that move inside the cylinder block to create pressure and flow.
3. Piston Rings: These are fitted on the pistons to provide a tight seal against the cylinder block, preventing leakage.
4. Valve Plate: This plate contains the intake and discharge valves that control the flow of hydraulic fluid.
5. Swash Plate: This component is connected to the drive shaft and helps convert the rotary motion into reciprocating motion of the pistons.
6. Drive Shaft: This is the main shaft that connects to the power source and rotates the pump.
7. Bearings: These are used to support and reduce friction between moving parts, such as the drive shaft and swash plate.
8. Seals and O-rings: These are used to prevent leakage of hydraulic fluid at various points, such as the cylinder block and valve plate.
9. Inlet and Outlet Ports: These are the openings through which hydraulic fluid enters and exits the pump.
10. Housing: This is the outer casing that encloses all the internal components of the pump and provides protection.
These are some of the main parts of a hydraulic piston pump, but the exact design and configuration may vary depending on the specific pump model and manufacturer.
