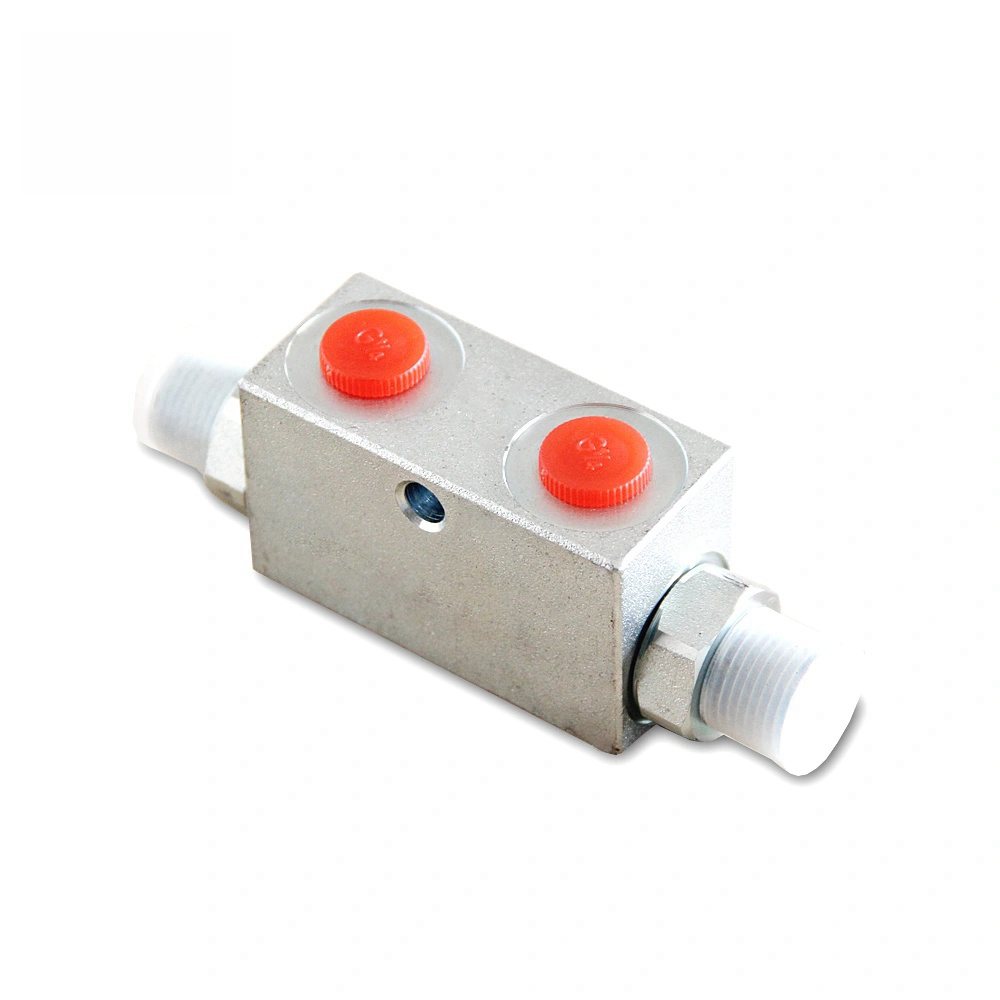

VBPDE DUAL PILOTED OPERATED CHECK VALVE

Use and Operation
Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

Materials and Features

• Body: zinc-plated steel
• Internal Parts: hardened and ground steel
• Seals: BUNA N standard
• Poppet Type: any leakage

Applications
Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator.

On Request

• without seal on pilot piston
• 1 Bar spring
• 8 Bar spring

Dual Pilot  check valves  are  used to  block the  cylinder  in both  directions.  Flow  is  free  in  one  direction  and blocked  in  the  reverse  direction  until  pilot  pressure  is applied.VBPDE Hydraulic Check Valves Often used with cylinders.It is placed at the inlet and outlet of the cylinder.Haohong hydraulic has other categories of Directional Control Valves.This kind of valves is introduced from OM Company which is from ITALY.

MATERIALS AND FEATURES:

Body:   zincplated   steel.

Internal   parts:   hardened   and   ground   steel.

Seals:   BUNA   N  standard.

Leakage:    Guided    poppet-negligible    leakage.
