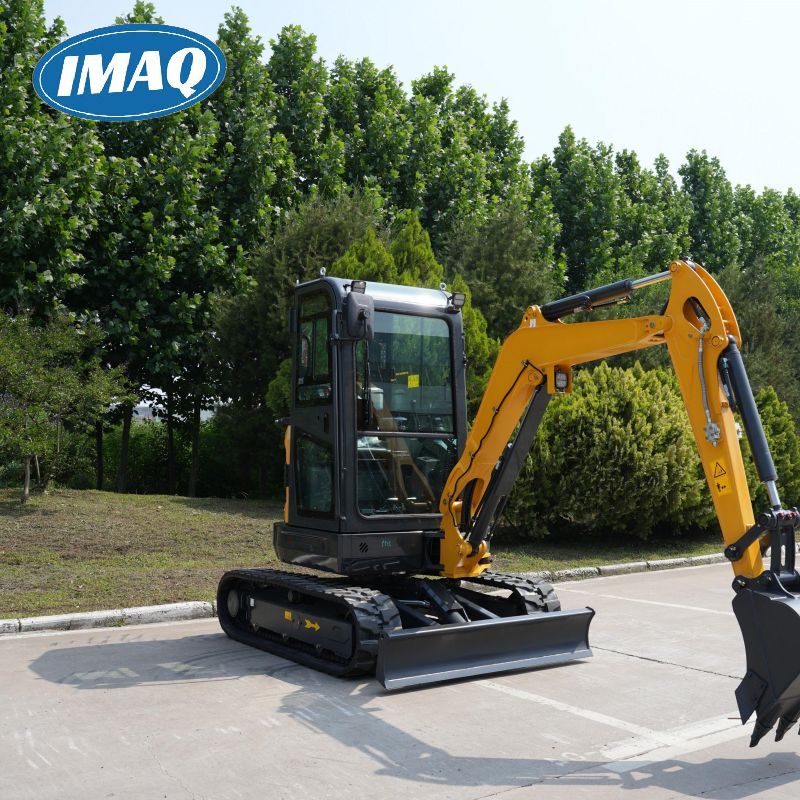

3ton excavator
11 month ago
The machine has all the functions
Standard with tailless rotation, boom side swing function, suitable for small space operation, operation without dead Angle. Standard multi-purpose pipeline, can be configured with breaking hammer, hydraulic shear, auger and other accessories, complete functions, full coverage of working mode.
Intimate and humanized design
Standard configuration of cab, heating and cooling air conditioning, Bluetooth +USB interface radio, high and low audio, multi-functional large screen color display, touch screen, convenient and practical.
A multi-purpose machine, excellent performance, smooth action, simple and practical operation.
Configure high power
High power, energy saving and environmental protection Yanma engine, meet the national 4, Euro 5, EPA4 stage emission standards.
Load sensitive control hydraulic system, system pressure, high efficiency, quick response.
The walking motor has the function of automatic speed regulation, and the walking efficiency is high.
Full hydraulic pilot control, excellent handling performance.
New shape and new technology
Swing frame adopts high strength cast steel parts, optimized structural parts, strong and durable.
The overall color collocation is reasonable and beautiful, the overall shape is small and exquisite, reflecting the family and series style
And we have mini excavator and Medium & Large Excavator,1ton,2ton,3ton,4ton and so on
| item | Unit | IMC27 |
| Machine weight | kg | 2700 |
| Rated power | kW/rpm | 14.6/2400 |
| A surname | m³ | 0.065 |
| Engine type | - | 3TNV80F |
| Emission standard | - | Euro V, North American EPA 4 |
| form | - | Three cylinder direct injection |
| displacement | L | 1.267 |
| Rated operating flow | L/min | 95 |
| Turning speed | r/min | 10 |
| Bucket digging force | kN | 24 |
| Bucket rod digging force | kN | 14.8 |
| Ground specific voltage | kPa | 26 |
| Travel speed | km/h | 2.0-4.0 |
| Climbing ability | - | 0.7 |
| Overall length | mm | 4200 |
| Overall width | mm | 1550 |
| Total height (to cab top) | mm | 2480 |
| Minimum ground clearance | mm | 300 |
| Wheel track | mm | 1540 |
| gauge | mm | 1250 |
| Track width | mm | 1550 |
| Maximum excavation height | mm | 4390 |
| Maximum unloading height | mm | 3060 |
| Maximum digging depth | mm | 2800 |
| Maximum excavation radius | mm | 4800 |
