BC-MH16D 2 Finger Parallel Pneumatic Air Gripper Cylinder
A pneumatic gripper is a pick-and-place device that uses compressed air to operate gripper jaws, also called fingers. These fingers, similar to human fingers, help in grasping, holding and releasing the work pieces. Commonly, they have 2 fingers (parallel or angular) or 3 fingers with a single or double acting cylinder for control. They are mostly used in automated manufacturing processes to grip a work piece.
Technical Data:
| BRANDO Model | BC-MH16D | |
| Bore Size | 16mm | |
| Fluid | Air | |
| Operating Pressure | 0.15 to 0.7 MPa | |
| Ambient and Fluid Temperature | -10 to +60ºC | |
| Repeatability | ±0.01mm | |
| Max Operating Frequency | 90 c.p.m | |
| Action | Double Acting | |
|
Gripping Force Per Finger Effective Value (at 0.5 MPa pressure)
|
External Gripping Force | 34N |
| Internal Gripping Force | 15N | |
| Opening / Closing Stroke
(both sides)
|
6mm | |

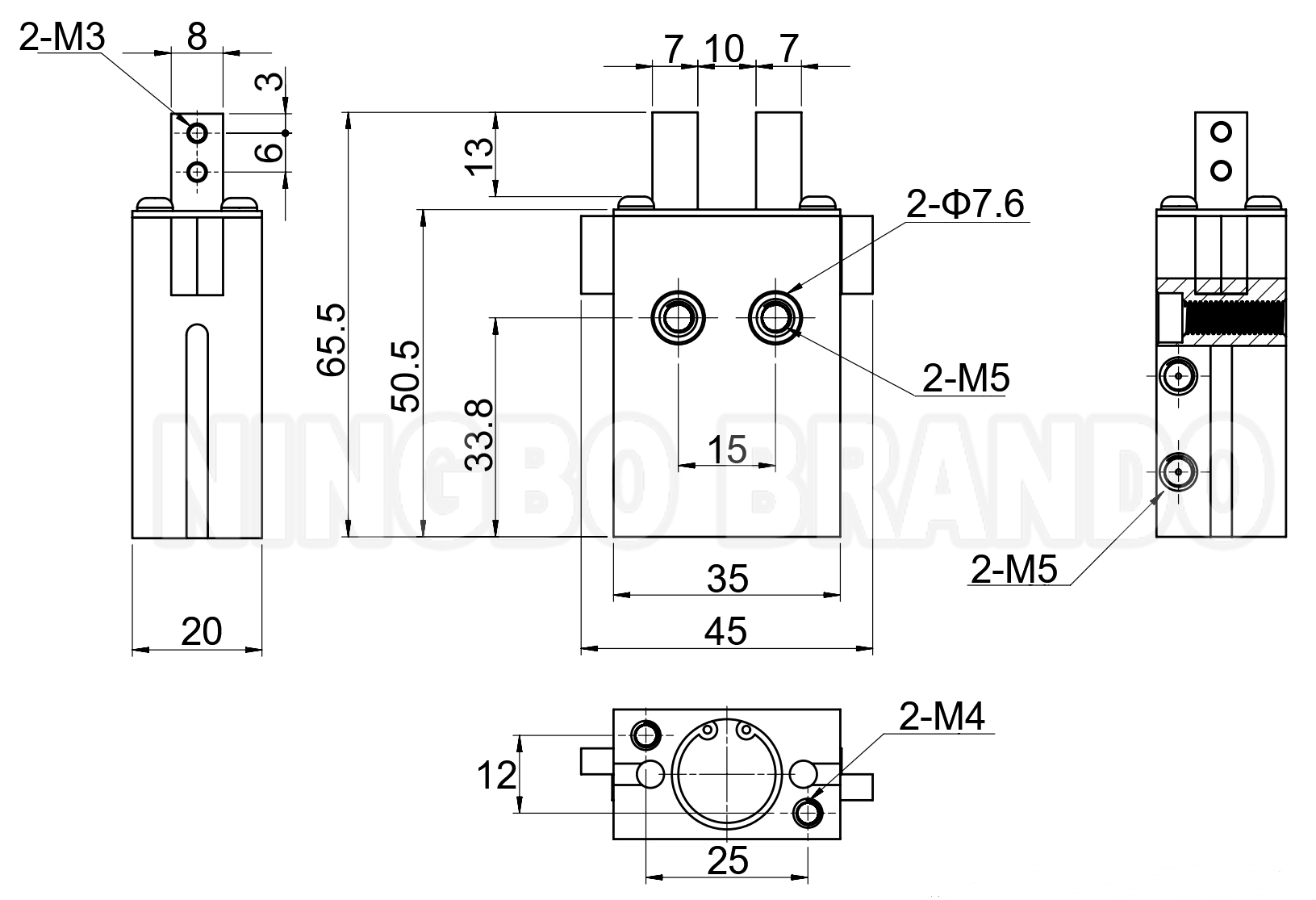

Main Dimension:

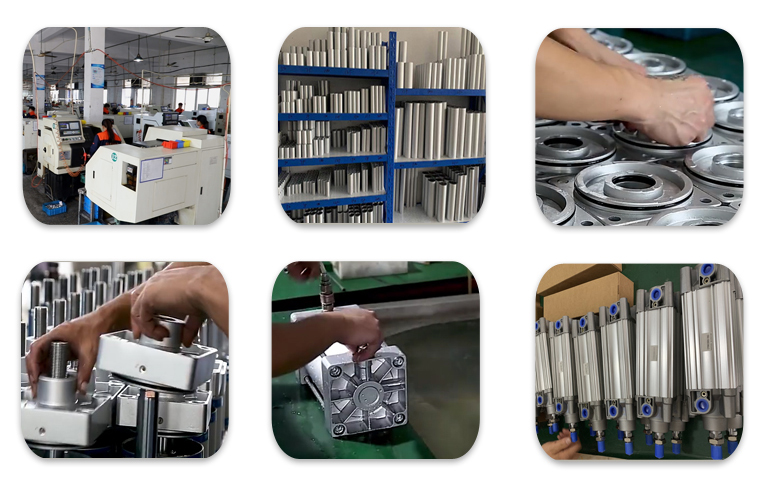

Our Production:

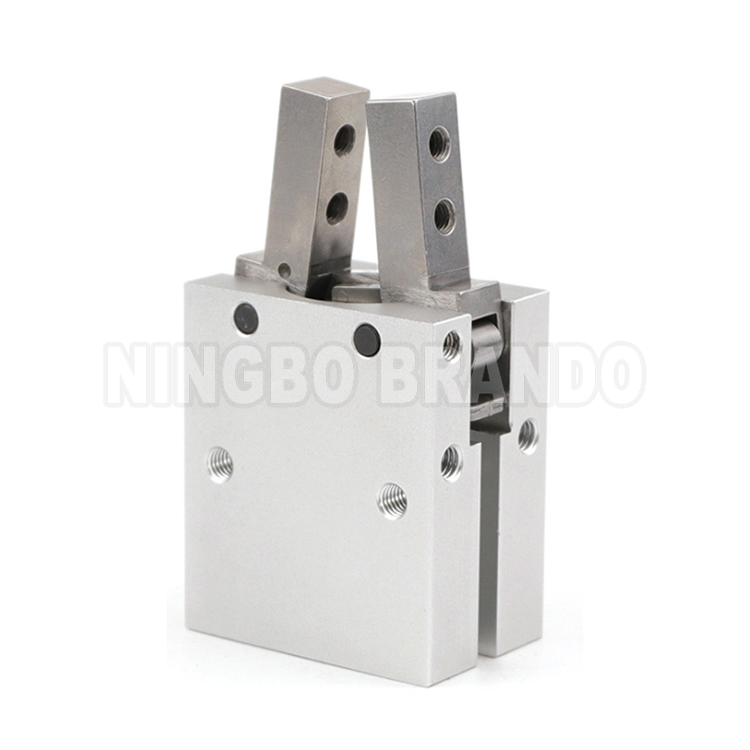

More Pneumatic Grippers:
 |
 |
 |
| 2 Finger Gripper | 3 Finger Gripper | 4 Finger Gripper |
Related Products:
 |
 |
 |
 |

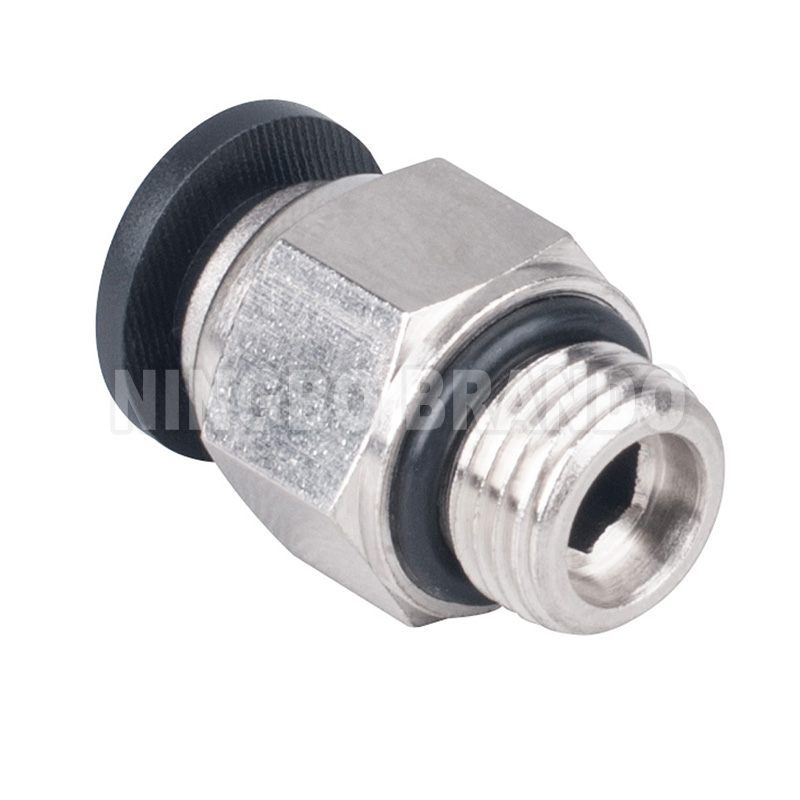

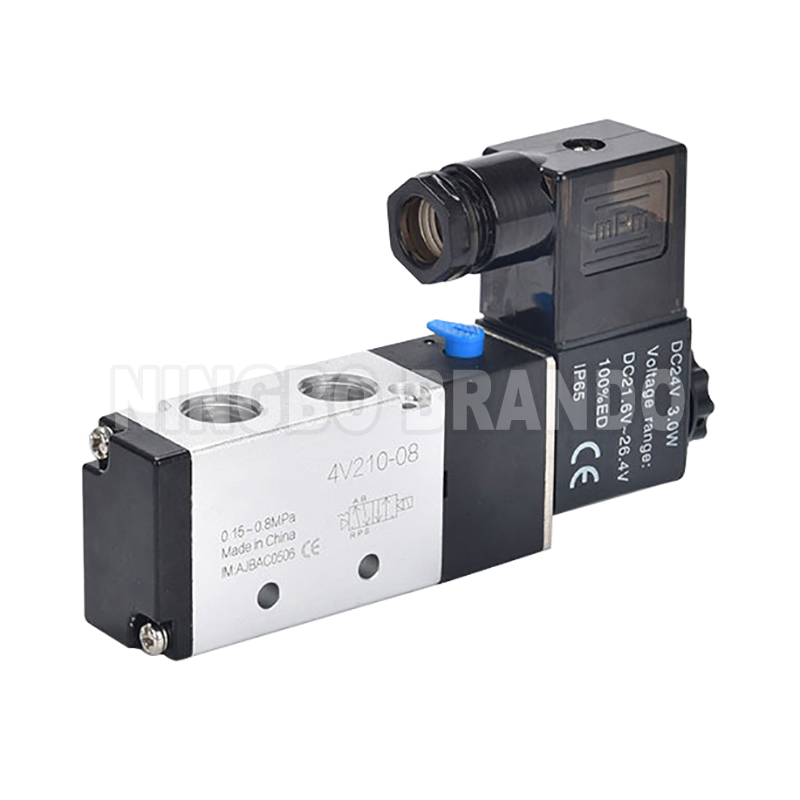

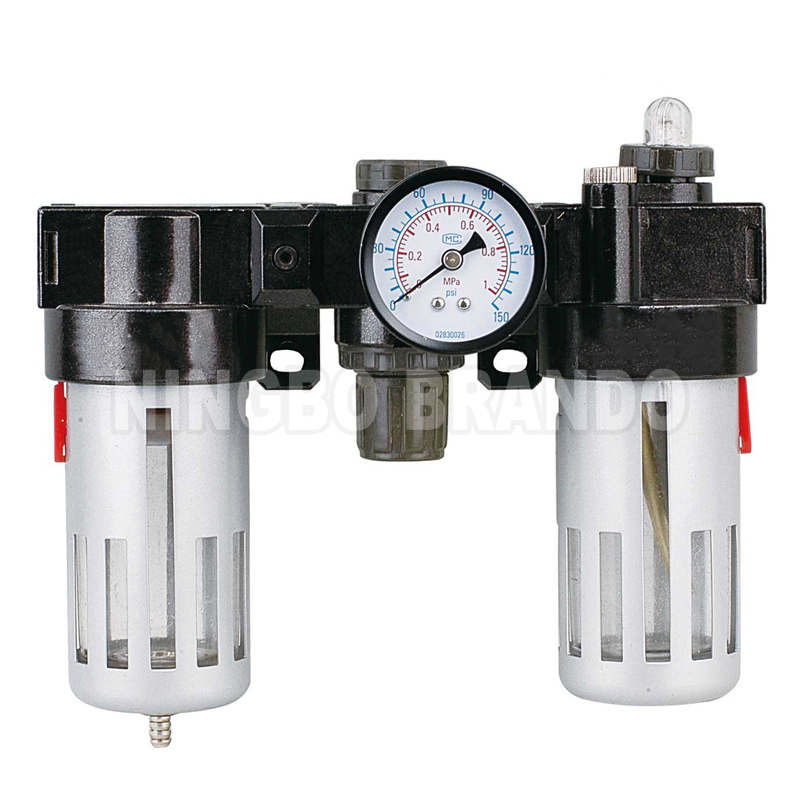

| Pneumatic Solenoid Valve | Pneumatic FRL Unit | Pneumatic Fitting | Pneumatic Tube |
