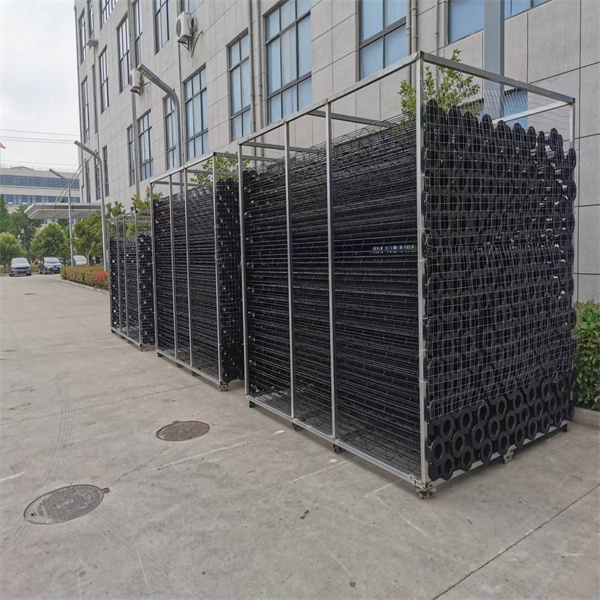

Filter Bag Cage
11 month ago
Our Carbon Steel, Pre-Galvanised, 304SS, 316SS, 316L Filter Bag Cage, engineered to support and maintain the structural integrity of filter bags in a variety of industrial applications. It is very important part in Bag House Dust Collectors.Our filter bag cages are made from high-quality materials to ensure reliable, efficient filtration performance, increasing filter bag life and effectiveness. The cage’s solid construction and precise engineering provide stability and support, preventing premature wear of the filter bags. Focused on durability and functionality, our industrial grade filter bag cages are a trusted solution for optimizing filter bag performance and longevity in harsh industrial environments.
Related Products:,Stainless Steel Filter Bag Cage,PPS Filter Bag,Acrylic Filter Bag,PTFE Filter Bag,Polyester Filter Bag,Aramid Filter Bag, Filter Bag Cage,Bag House Dust ollectors,Cartridge Dust Collectors,Bag Filter,Automatic Filter,etc
Advantages of Carbon Steel, Pre-Galvanised, 304SS, 316SS, 316L Filter Bag Cage
1, No corrosion, no damage
2, 3-5 times longer life than other bag cage with steel
3, Economical maintenance (almost no Maintenance required)
4, Prominent effect in removing dust from Filter by pulsing
5. Easy to install (Venturi is not required)
Technical Parameters for Carbon Steel, Pre-Galvanised, 304SS, 316SS, 316L Filter Bag Cage
|
Types |
Round Style/Flat Style/Envelope Style/ Special Style |
|
Stringers |
8/10/12/16/20/24 vertical wires |
|
Wire diameter: |
Φ 3.0/3.2/3.5/3.8/4.0mm |
|
Ring Space |
Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) |
|
Cage Diameter |
Cage diameters range from 4 inch to 8 inch (100mm to 200mm) |
|
Material |
Carbon Steel, Galvanized Steel, Stainless Steel |
|
Finishment |
Epoxy, PVC vinyl coating,Organic silicon spraying |
|
Usage |
Dust from factory of mine, wood,Cement, chemical, medicine, |
|
dying,Paint, plastic,food & other industry,such as coal fired |
|
|
power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
|
|
Function |
Guided by the top of the filter cage core, inducing several times more than the jet air into the filter bag, forming air waves, so that the filter bag and filter cage core resonance, from the mouth of the bag to the bottom of the rapid expansion and shock vibration, resulting in a strong cleaning effect, shake off the dust on the filter bag. |
Application of Carbon Steel, Pre-Galvanised, 304SS, 316SS, 316L Filter Bag Cage
1) Iron and steel Industry
2) cement Industry
3) power plant
4) chemical industry
5) Mining
6) Asphalt mixing plant
7) Limestone
8) Electrolysis and other Specialty membranes
9) Municipal Solid Waste Boilers and Waste incinerators
