Product details

Product Introduction

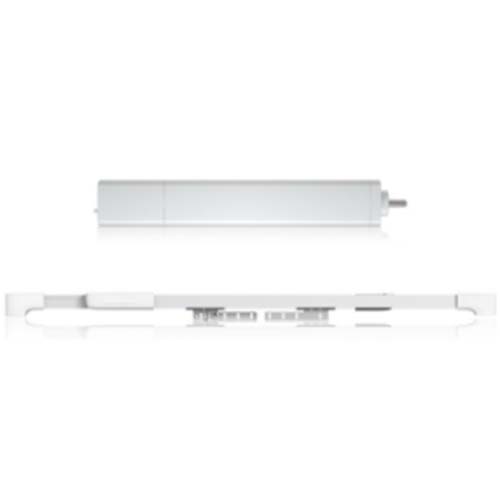

The Super Intelligent Curtain (Basic Edition) is launched by Oribo for users who already have the Oribo Super Intelligent Switch MixPad interactive series. Super intelligent curtain (basic version) includes: Xiaobai intelligent curtain motor+measurement free expandable guide rail.

Basic parameters

Product model W10

Product specifications: 40 * 40 * 320mm

Rated power 36W

Rated input 100-240V~50/60Hz

No load current 0.4A

Rated speed 75rpm

Rated current 1.3A

Rated torque 1.0N. m

Protection level IP41

RF receiving frequency 433.92MHz ± 75KHz

Working temperature -0 ℃ -50 ℃

Relative humidity 20-90% RH

Communication protocol WiFi

Reserved plan

Reserve an AC220V power socket 40cm below the wall and ceiling at one end of the curtain guide rail

Side mounted: Single layer side mounted curtains require additional unit installation of side codes. Double layered side mounted curtains require dual installation side codes.

Top mounted: 1. A single-layer curtain box with a width of 15cm is most suitable, 2. A double-layer curtain box with a width of 22cm is most suitable,

Wiring scheme

Reserve an AC220V power socket 40cm below the wall and ceiling at one end of the curtain guide rail

Product labeling

Unilateral load: 10KG, bilateral load: 20KG.

Height:<3M
