Product details

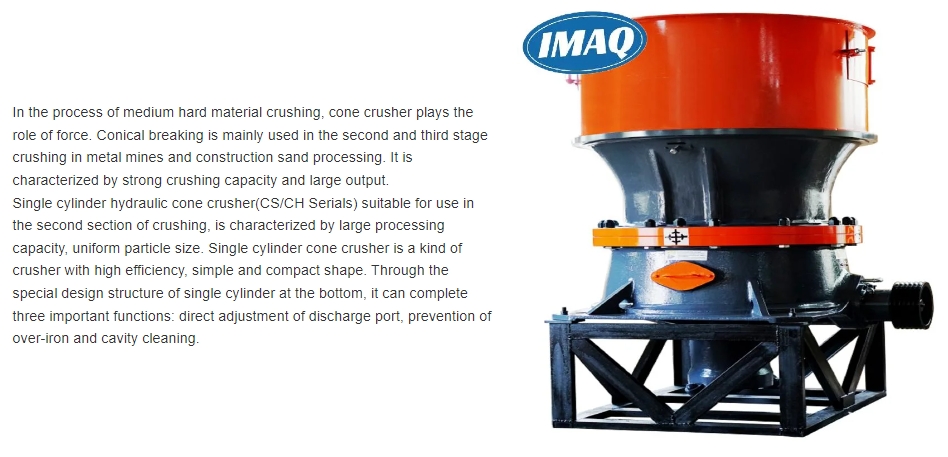

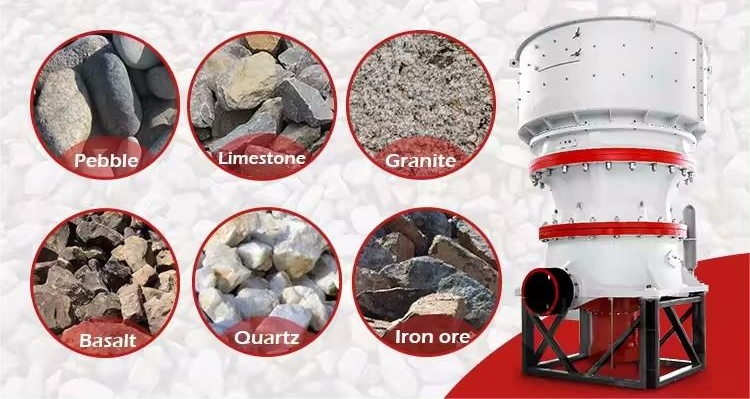

Single-cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness. It has the advantages of various selections of cavities, stable structure and adjusted strokes. High crushing efficiency, low production cost, easy maintenance, the size and the shape of the product is excellent. For the large or medium size crusher, it's using a hydraulic clear cavity system to reduce downtime.

Cs Ch Series

Product Description

CS/CH series bottom single cylinder cone crusher

Product Parameters

Model	(kW)		(mm)
Model	(kW)		(mm)	Nominal capacity in t/h with crusher running at CSS (mm)
				16	19	22	25	29	32	35	38	41	54	54	54
CS820	90	EC	240		90	100	130	180	195	165	170
CS820	90	C	200	75	80	110	145	130	130
CS830	160	EC	360			135	145	200	265	280	355	375	395	295	245
CS830	160	C	300		115	155	165	230	290	310	330	345	305

Model	(kW)		(mm)
Model	(kW)		(mm)	Nominal capacity in t/h with crusher running at CSS (mm)
				25	29	32	35	41	44	51	54	60	64	70	76
CS840	250	EC	450					446	563	524	456
CS840	250	C	400			299	381	511	448	333
CS860	315	EC	560			340	360	349	460	718	856	929	978	1050	983
CS860	315	C	500					420	618	788	823	892	822	631

Detailed Photos

PRINCIPAL FEATURE

Φ Higher reliability

* Heavy duty designed main frame with first class steel

* High manganess composite material liner,more hard-wearing

* Huge diameter main shaft, more sturdy and durable

Φ Less production cost

Zhuyan Heavy Industries has long term experience and advanced

metallurgy technology in crusher liner,that can reduce the crusher

unit wearing.The optional automatic control system help to feed

fully and to adjust the liner gap automatically during the crusher

running,and improved the crusher working efficiency,then the unit

production cost will be more less.

Φ Wider Application

This series cone crusher has bigger feeding port size,then it is

suitable for various crushing plant for best capacity,and it is widely

used in medium and superfine crushing,stationary and mobile crushing

plant.Improved Crushing Speed,Eccentric Arm(Stroke)and Cavity

design can bring the higher capacity and better products.

CS/CH series bottom single cylinder cone crusher

Certifications

CS/CH series bottom single cylinder cone crusher

Packaging & Shipping

CS/CH series bottom single cylinder cone crusher

Our Advantages

CS/CH series bottom single cylinder cone crusher

FAQ

1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.

2.Guaranteed?

Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.

3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
