pvc water butterfly valve
4 year ago
DN100 PVC butterfly water valve PN10/JIS10K/ANSI Cl125/150 model PV121W is an economic type valve designed for water purpose, it is simple structure with light body, light torque for manual lever operate and most important is cheap price. PVC water butterfly valve is suitable for water supply, water treatment, swimming pool, fish farm, agriculture and irrigation. water PVC butterfly valve is made by PVC body with seat EPDM or NBR, connection as per flange standard DIN PN10, ANSI CL150, JIS 10K, Size from 2" to 8", working pressure by PN10, temperature from 0 degree to 70 degree.
PVC water butterfly valve model PV121W features
Basic specification
Size: DN50~DN200 (2 inch ~ 8 inch)
Body Material: PVC
Seal material: EPDM, NBR
Wafer connection: DIN PN10; ANSI CL150; JIS 10K
Design pressure: 1.0Mpa (PN10 bar)
Feature of valve
Disc and seat that touch medium are made from plastic and rubber
Multi-hole fi t for different standards connection
Valve is easy to assemble and disassemble to change damaged parts
Electric and pneumatic actuator mounting are available

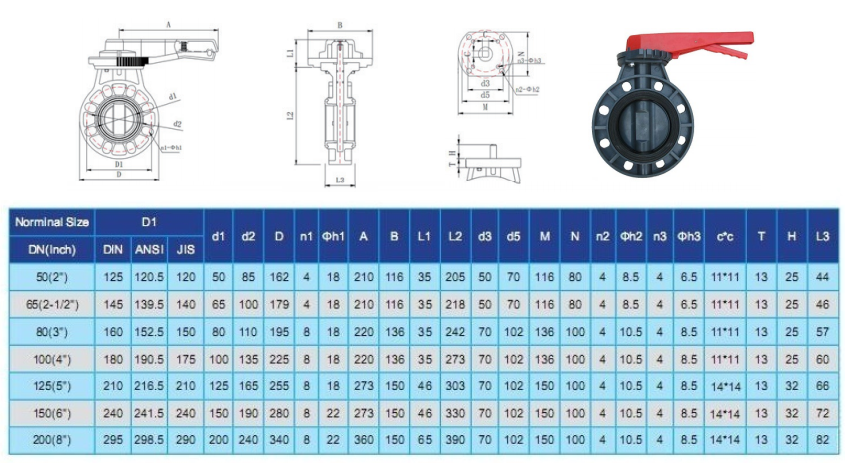

Dimension:
