Features:
Our rotary vacuum dryer includes three types of heat source, including steam,
hot water and heat transfer oil.
This simple-structure drying equipment is convenient to clean and easy to
operate.
Material in the dryer can also be rotated due to the rotation of the machine,
which helps minimize material water content (≤0.5%).
Material doesn't stick to the walls of the container, resulting in high heat
transfer coefficient and high drying rate.

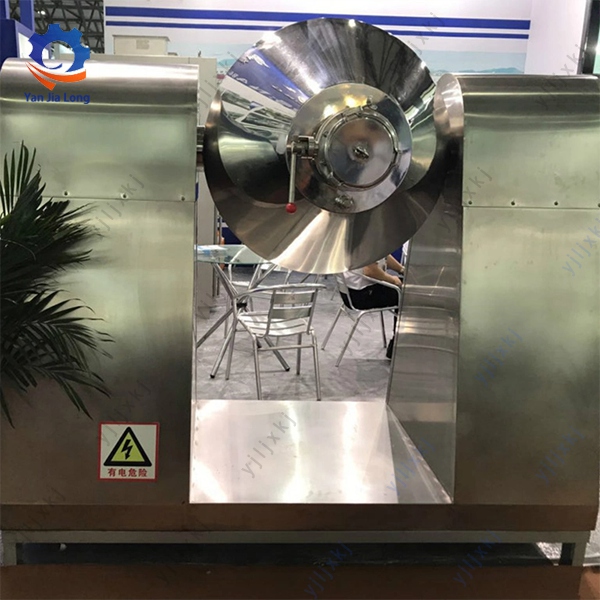

Technical Specifications of Rotary Double Cone Vacuum Dryer
|
Model |
Volume(L) |
Heating area(m2) |
Power(kw) |
Rotation speed(rpm) |
Turning height(mm) |
Tube design pressure(mpa) |
Interlayer design pressure(mpa) |
Weight(kg) |
|
SZG-100 |
100 |
1.16 |
0.75 |
6 |
1810 |
-0.09~0.096 |
≤0.3 |
800 |
|
SZG-200 |
200 |
1.5 |
1.1 |
6 |
1910 |
-0.09~0.096 |
≤0.3 |
1000 |
|
SZG-350 |
350 |
2 |
1.5 |
6 |
2090 |
-0.09~0.096 |
≤0.3 |
1100 |
|
SZG-500 |
500 |
2..63 |
1.5 |
6 |
2195 |
-0.09~0.096 |
≤0.3 |
1200 |
|
SZG-750 |
750 |
3.5 |
2.2 |
6 |
2500 |
-0.09~0.096 |
≤0.3 |
1480 |
|
SZG-1000 |
1000 |
4.61 |
3 |
6 |
2665 |
-0.09~0.096 |
≤0.3 |
2800 |
|
SZG-1500 |
1500 |
5.58 |
3 |
6 |
2915 |
-0.09~0.096 |
≤0.3 |
3300 |
|
SZG-2000 |
2000 |
7.5 |
4 |
6 |
3055 |
-0.09~0.096 |
≤0.3 |
3580 |
|
SZG-3000 |
3000 |
9.6 |
5.5 |
4 |
3330 |
-0.09~0.096 |
≤0.3 |
5950 |
|
SZG-4500 |
5000 |
13.8 |
7.5 |
4 |
4210 |
-0.09~0.096 |
≤0.3 |
9960 |
