Coated peanut production line

Brief introduction:

Coated nuts production line is widely used in the process of coated peanuts, coated cashew, coated macadamia,

coated green bean, coated broad bean, coated sunflower seeds etc.

                Material products                                   Final products

Peanut

Fish skin peanut Coated peanut

Cashew

Coated Cashew

Macadamia

Coated Macadamia kernel

Sunflower seeds		Coated Sunflower seeds
Green bean		Coated Green bean
Broad bean (half kernel)		Coated Broad bean half kernel

Working Flow:

Powder and syrup mixing---Coating---Roasting---Seasoning---Drying---Cooling

we can customize the capacity from 100kg/h-1000kg/h according to your requirements.

Also we can support you with formula of each processing step and help you to finish the final products.

Working Video：

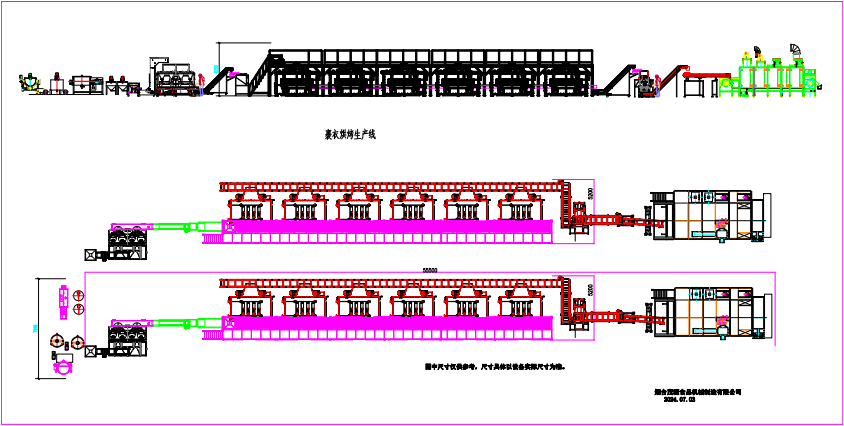

Workshop layout:

Main equipment introduction:

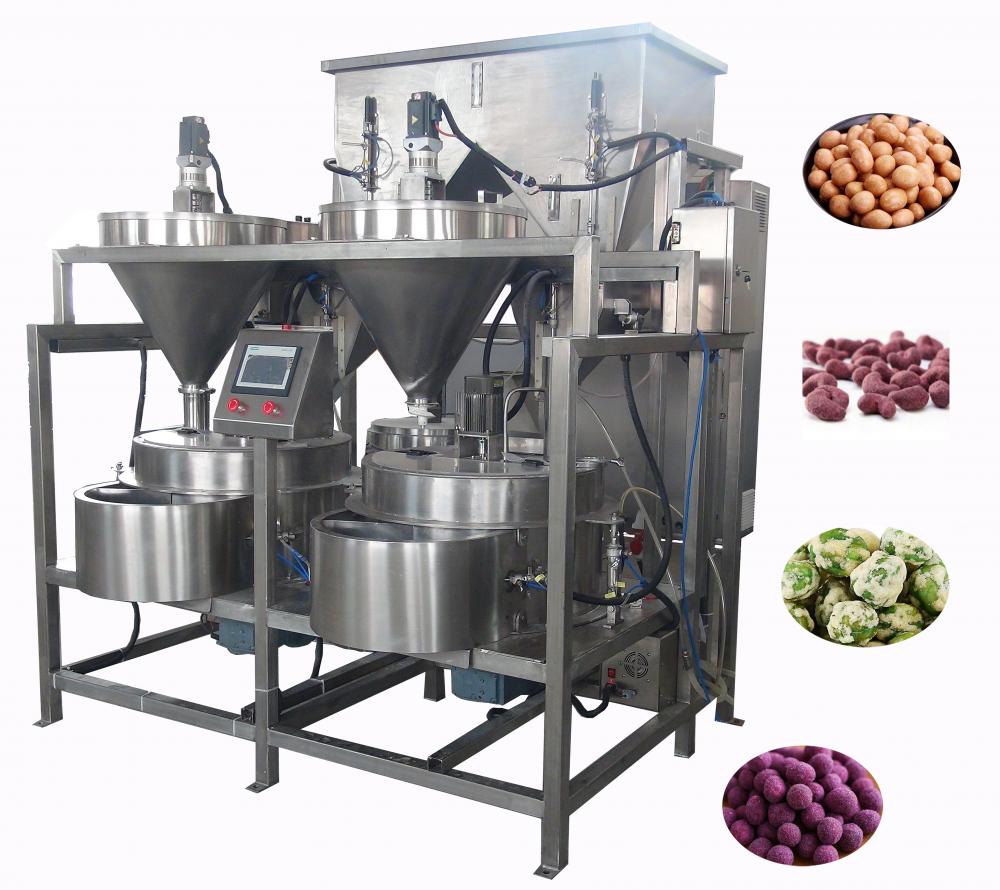

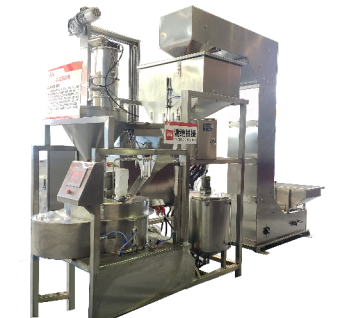

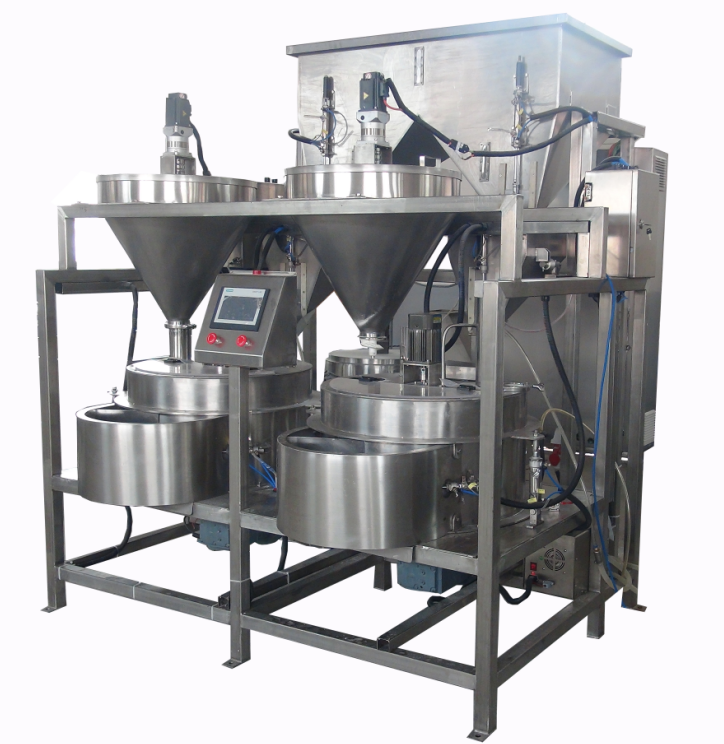

1.Automatic coating machine

Suitable for coating and powder processing of nut seed products such as peanuts, sunflower seeds, fava beans, almond, cashew, macadamia, etc. PLC automation control, automatic replenishment of raw materials, powders, and syrup materials, and changes in addition parameters and speed during the coating process according to the process, meeting the process requirements of various products. The enclosed structure improves the problem of dust pollution in traditional processing. One click intelligent operation is highly automated, greatly reducing labor intensity and reliance on worker coating technology; Ensure that the quality and uniformity of coating are no longer affected by human factors; Achieved automated production with one person with whole line, and high output and quality.

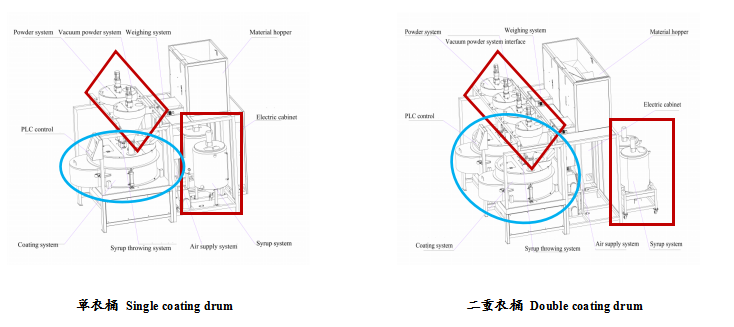

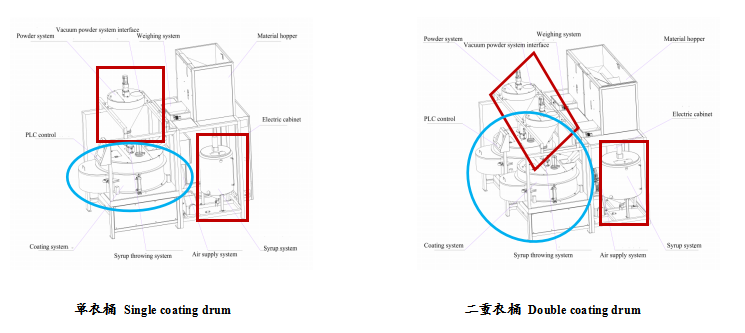

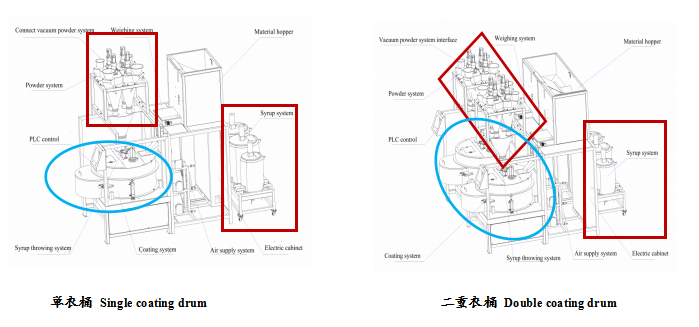

According to different production and formula requirements, single and double coating barrels can be configured, and multiple models of single powder, single liquid, double powder, and multiple liquid can be customized

1 powder tank 1 syrup tank
2 powder tank 2 syrup tank

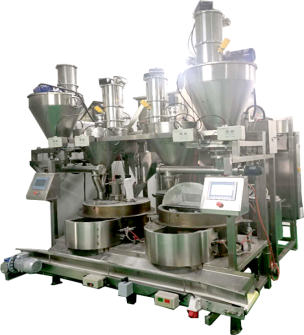

4 powder tank 3 syrup tank

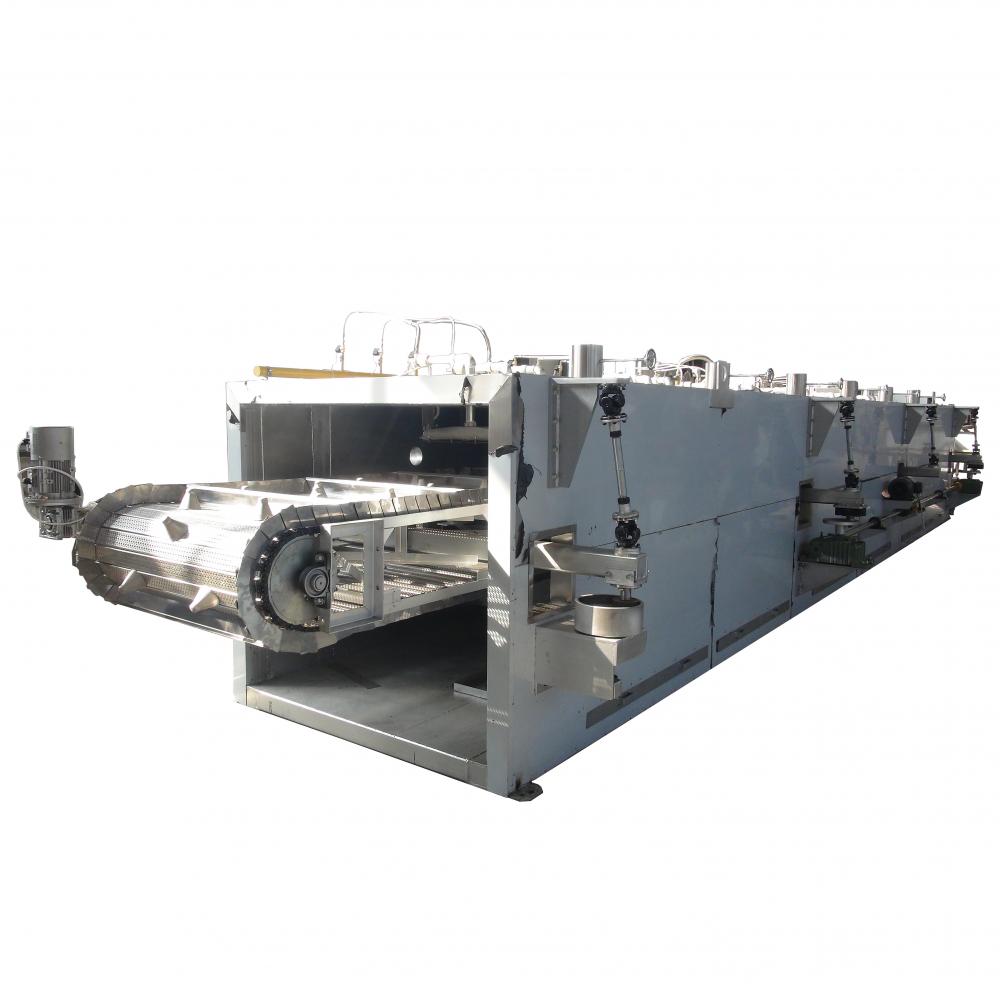

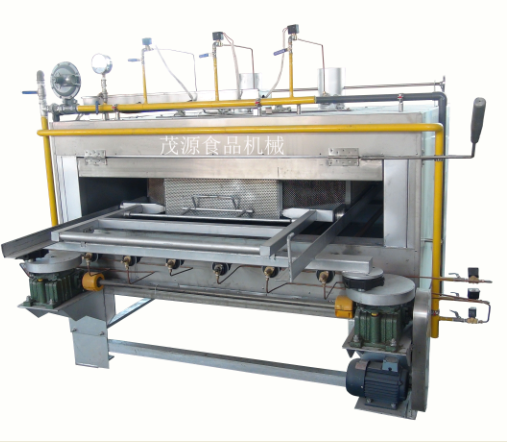

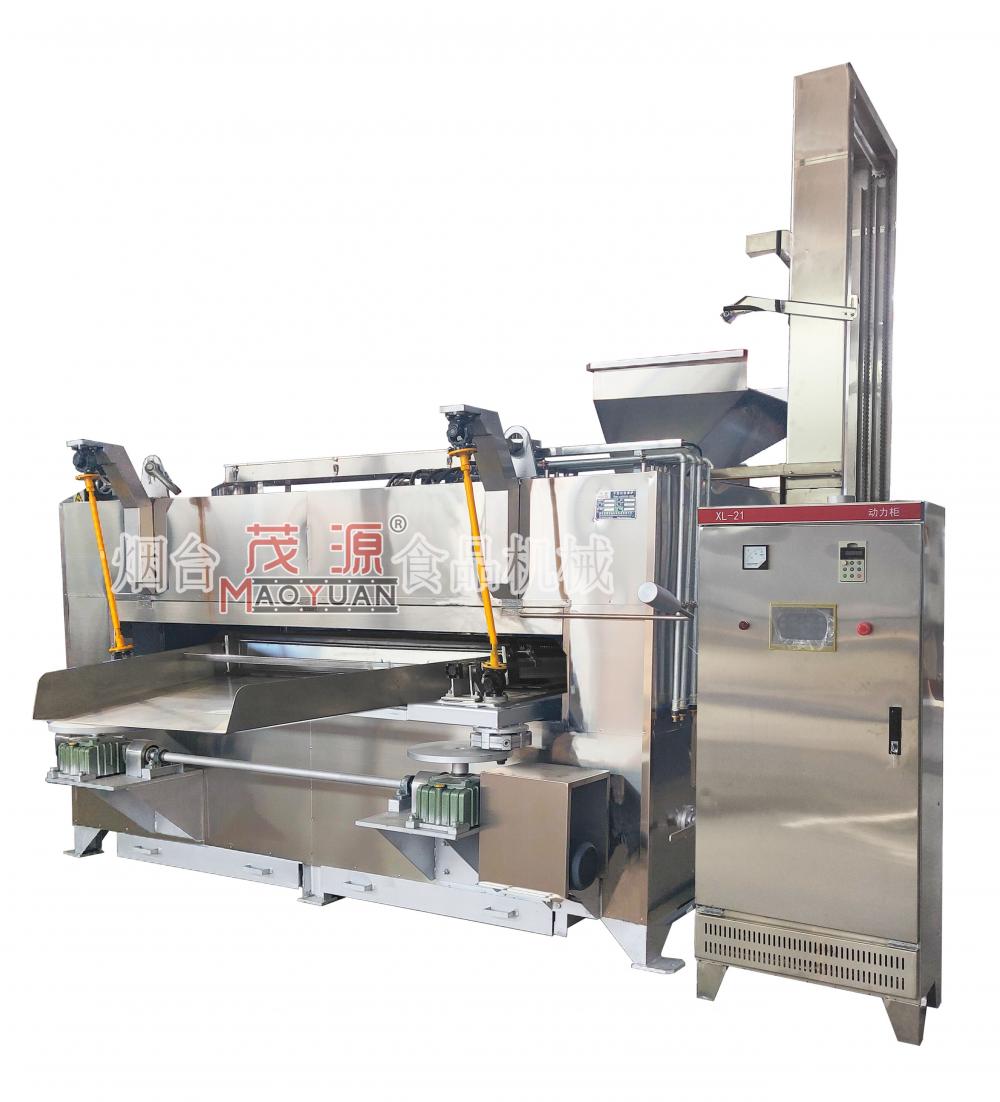

2.Combination of swing roasters

Swing Roaster/ Flat & Rotary Roaster is also called coated peanut roaster/Japanese peanut roaster , it is designed to roast flavored coated peanut, sunflower seeds, cashew nut, almonds, walnuts, hazelnut, cashew, macadamia seeds etc.

Model	Picture	Power (kw)	Capacity (kg/h)	Gas consumption (m³/h)	Weight (kg)	Dimension (mm)
PDK-60		0.75	30-50	5-8	750	2800*2400*1900
PDK-90		1.5	50-120	10-15	2900	4200*3840*2300
PDK-1200		4.75	150-300	40-50	7500	12300*2550*2080

More Pictures:

Powder and syrup mixing part

Previous roasting part

Automatic coating part

Roasting part

Seasoning part

Other related machines

Company information

Yantai Maoyuan Food Machinery Manufacturing Co., Ltd, founded in 1993, is a honest unit of China Food and Package Machinery Industry Association. The company imported technology from abroad to engage in the professional production of a series of nuts processing machines. Its main products include peanut shelling machine, nuts peeling machine, nuts frying machine, nuts roasting machine, nuts coating machine, peanut butter making machine and kinds of production lines, such as salted peanut production line, fried peanut production line, blanched peanut production line and horse bean production line, coated peanut production line and cashew production line and peanut butter production line, etc.  Besides, our company supplies the whole service of producing and after-sales.
